Low Voltage Transformer

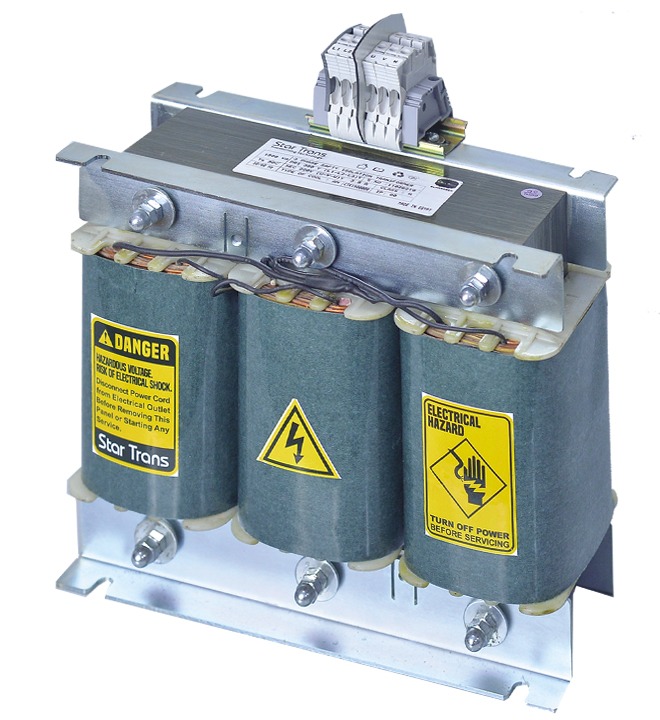

THREE PHASE Isolation Transformer500KVA

  • PRIV : 3*400VAC
  • SEC V : 3*400VAC
  • Power : 500KVA

SKU: IT500-000-00-00

Download Technical Specifications
Availability: 2 in stock

THREE PHASE Isolation Transformer500KVA

Isolating Transformer for the safe electrical isolation of the input and output sides The transformer may be used to set up protective measure in accordance with VDE 0100

Rated input voltage 3*400VAC
Rated output voltage 3*400VAC
Rated power 500 KVA
Insulation class H
MAX Ambient temperture 50C
Efficiency >96%
Degree of Protection IP00 OR IP23 According to request
Frequency 50/60HZ
K-Factor K-13
Vector Group DYn11
Windings copper 100%
Dim without Enclosure 960*580*940
Weight Without Enclosure 1575kg
