Three Phase Transformer
3PH ISOLATION TRANSFORMER IP00-5KVA
- PRIV : 400V
- SEC V : 400V
- Power : 5KVA
SKU: IT005-000-00-00
Download Technical Specifications

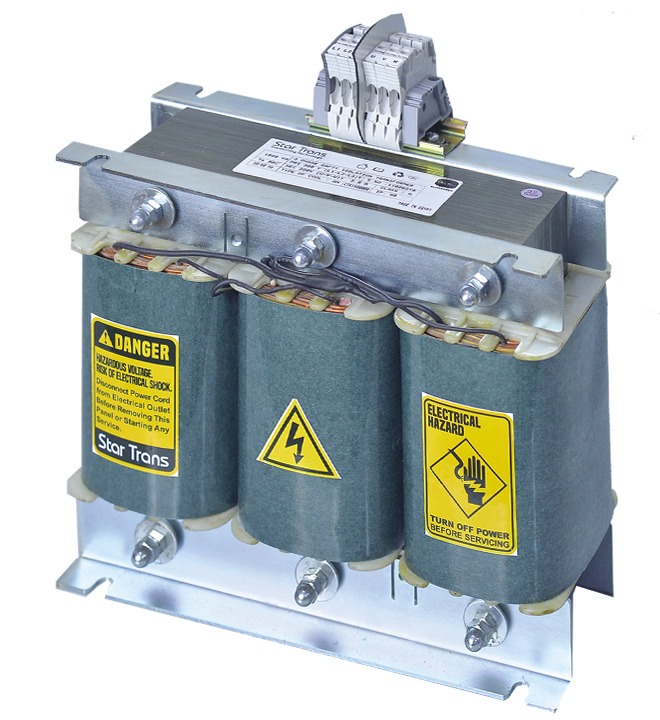

3PH ISOLATION TRANSFORMER IP00-5KVA
Isolation Transformer for electric isolation betwen input and output side
| Rated input voltage | 3*400VAC |
|---|---|
| Rated output voltage | 3*400VAC |
| Rated Power | 5KVA |
| Insulation Class | H |
| MAX Ambient temperature | 50C |
| Efficiency | >96% |
| Degree of protection | IP00 |
| Frequency | 50/60HZ |
| K-Factor | K13 |
| Windings | Copper 100% |
| Connection | DYn11 - other connection avaliable |
| Dim | 300*169*305 |
| Weight | 47.5KVA |
