AUTOMATIC VOLTAGE REGULATOR

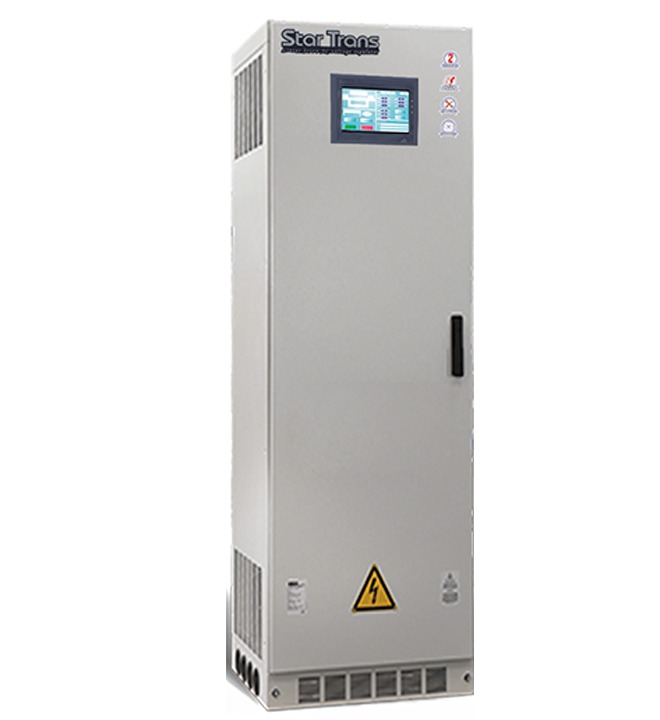

Automatic voltage regulator 150 KVA

  • PRIV : 304-456 V
  • SEC V : 380V
  • Power : 150KVA

SKU: TPL1 150KVA


Download Technical Specifications
Availability: 10 in stock
0 EGP

Automatic voltage regulator 150 KVA

It has protection from: over voltage-under voltage-over load-over heat-phase sequence-phase failure

Rated input voltage 304-456 V
Rated output voltage 380 V
Rated power 150KVA
Insulation class H
Insulation Resistance >= 2M Ohm
Efficiency >98%
Range volt 20%
operational temperture -20 C to +45 C
protection class ip 23 ( indoor) ,outdoor type on request
method of voltage regulation Regulation transformer with servo motor
Frequency 50/60HZ
voltage regulation mode independent phase regulation for three phase
protection over voltage protection -under voltage protection -overload protection -overheat protection -short circuit protection -phase squence protection -phase failure protection - by protecting the bass
digital display man machine interface enable users to know the unit condition clearly
