Low Voltage Transformer

Lift Transformer 25 VA-IP00

  • PRIV : 48/0/48
  • SEC V : O/P1= 12/24 O/P2= 48/65/75/85/98/110
  • Power : 25 VA

SKU: LT0025-00-1-02


Download Technical Specifications
Availability: 10 in stock
0 EGP

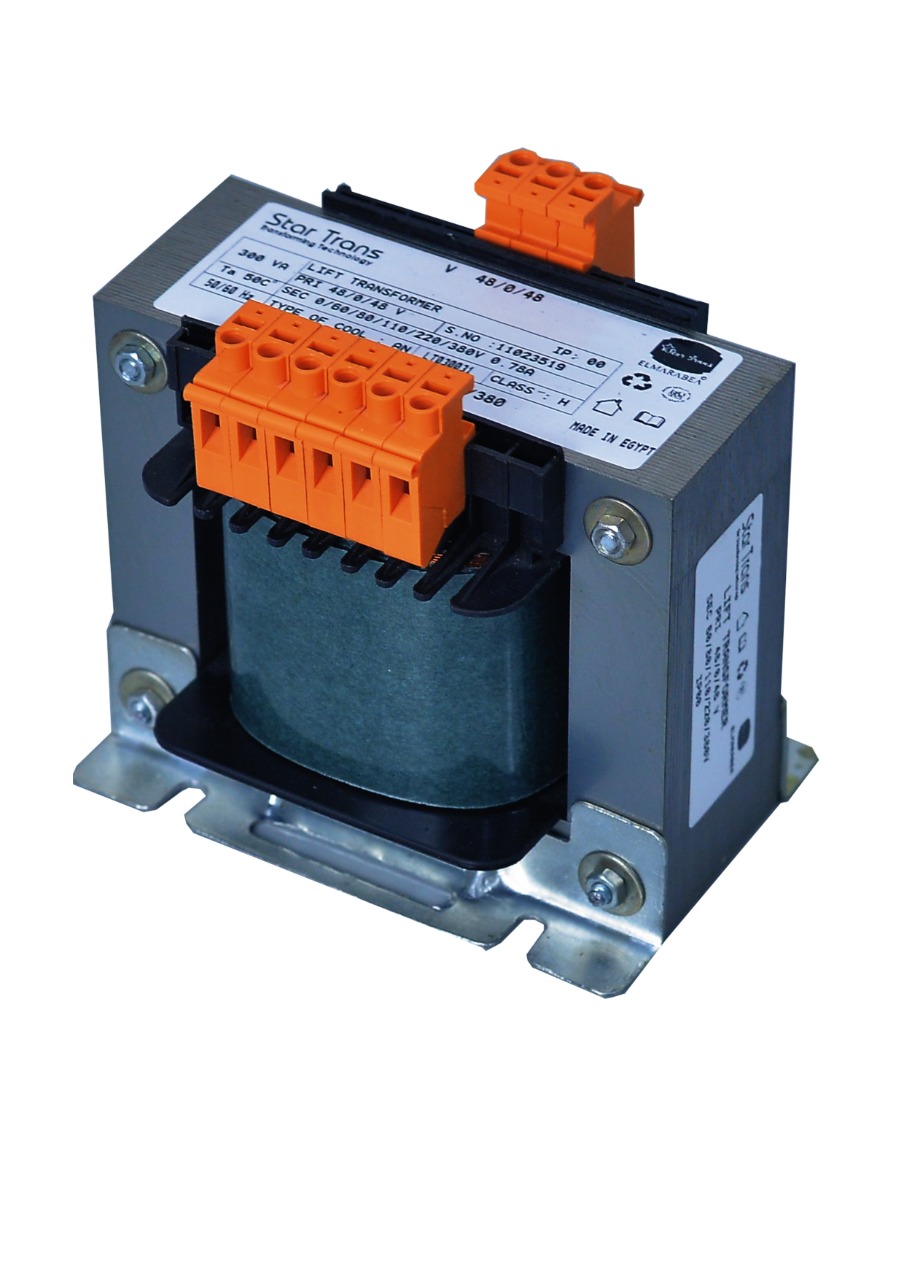

Lift Transformer 25 VA-IP00

-Very good switch on behavir thank to reduced starting current -High performance for the volume thank to compact design -Very good corrosion protection -Low noise thank to vacuum

Rated input voltage I/P1=220-380 I/P2=48-0-48V
Rated output voltage O/P 1= 0-12-24 V O/P2= 0-48-65-75-85-95-1110 V
Rated power 25 VA
Insulation class H
MAX Ambient temperture 50C
Efficiency >96%
Degree of protection IP00
Frequency 50HZ
winding copper 100%
Weight .93Kg
