THREE PHASE Isolation Transformer20KVA
- PRIV : 3*400VAC
- SEC V : 3*400VAC
- Power : 20KVA
SKU: IT020-000-00-00
Download Technical Specifications

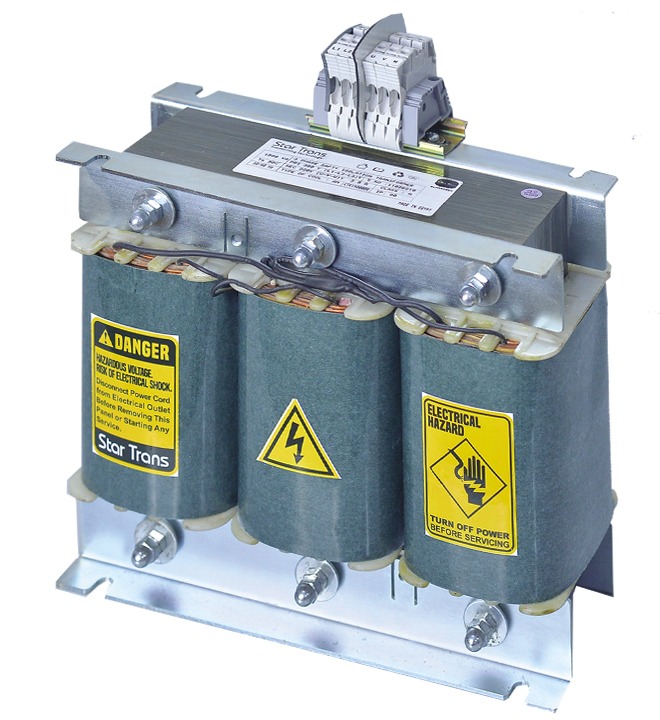

THREE PHASE Isolation Transformer20KVA
Isolating Transformer for the safe electrical isolation of the input and output sides The transformer may be used to set up protective measure in accordance with VDE 0100
| Rated Input Voltage | 3*400VAC |
|---|---|
| Rated Output Voltage | 3*400VAC |
| Rated Power | 20KVA |
| Insulation Class | H |
| MAX Ambient Temprature | 50C |
| Efficiency | >96% |
| Degree of Protection | IP00 OR IP23 According to request |
| Frequency | 50/60HZ |
| K-Factor | K-13 |
| Vector Group | DYn11 |
| Windings | Copper 100% |
| Dim without Enclosure | 480*199*465 |
| Weight Without Enclosure | 123KG |
| DIM With Enclosure | 540*640*510 |
| weight With Enclosure | 189KG |
