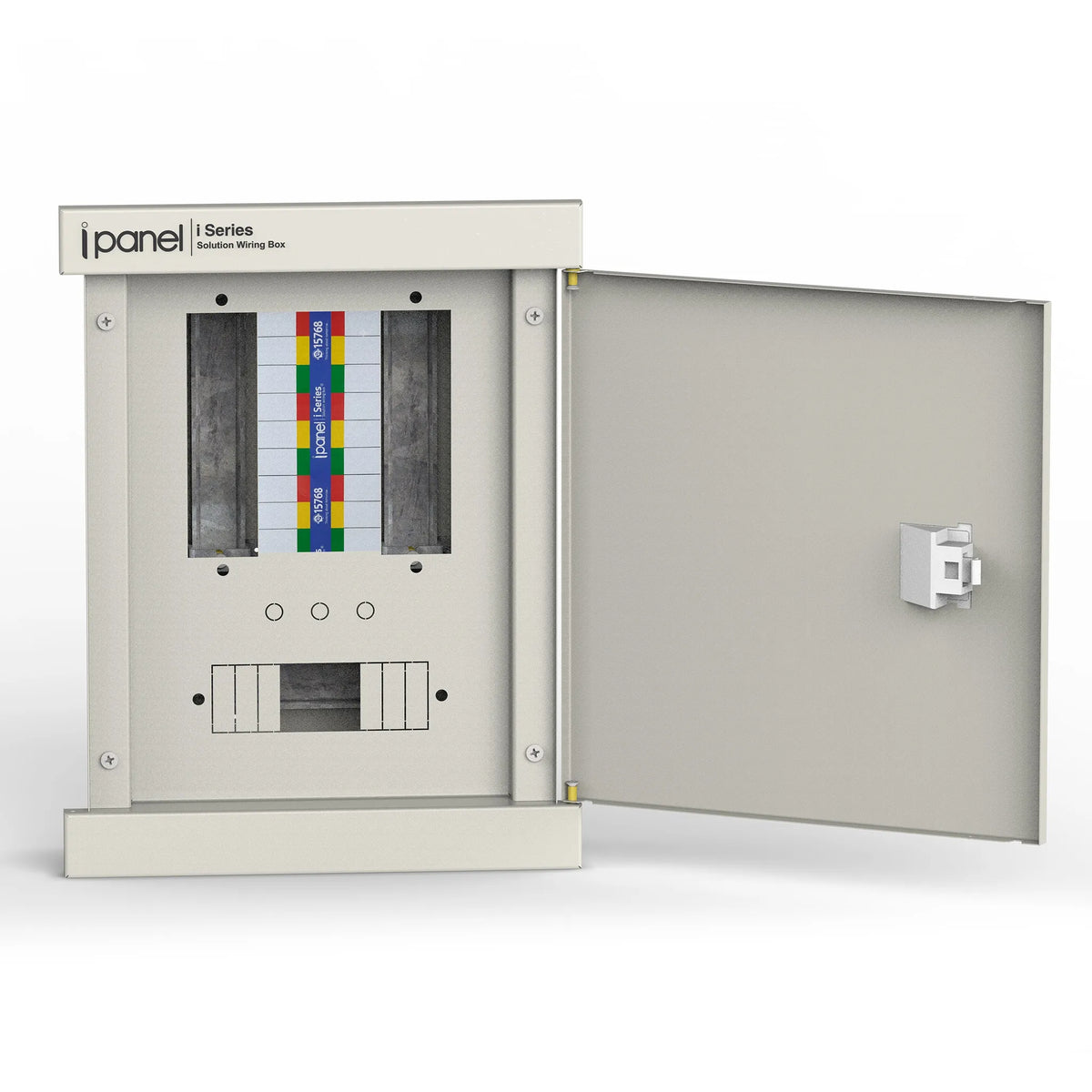

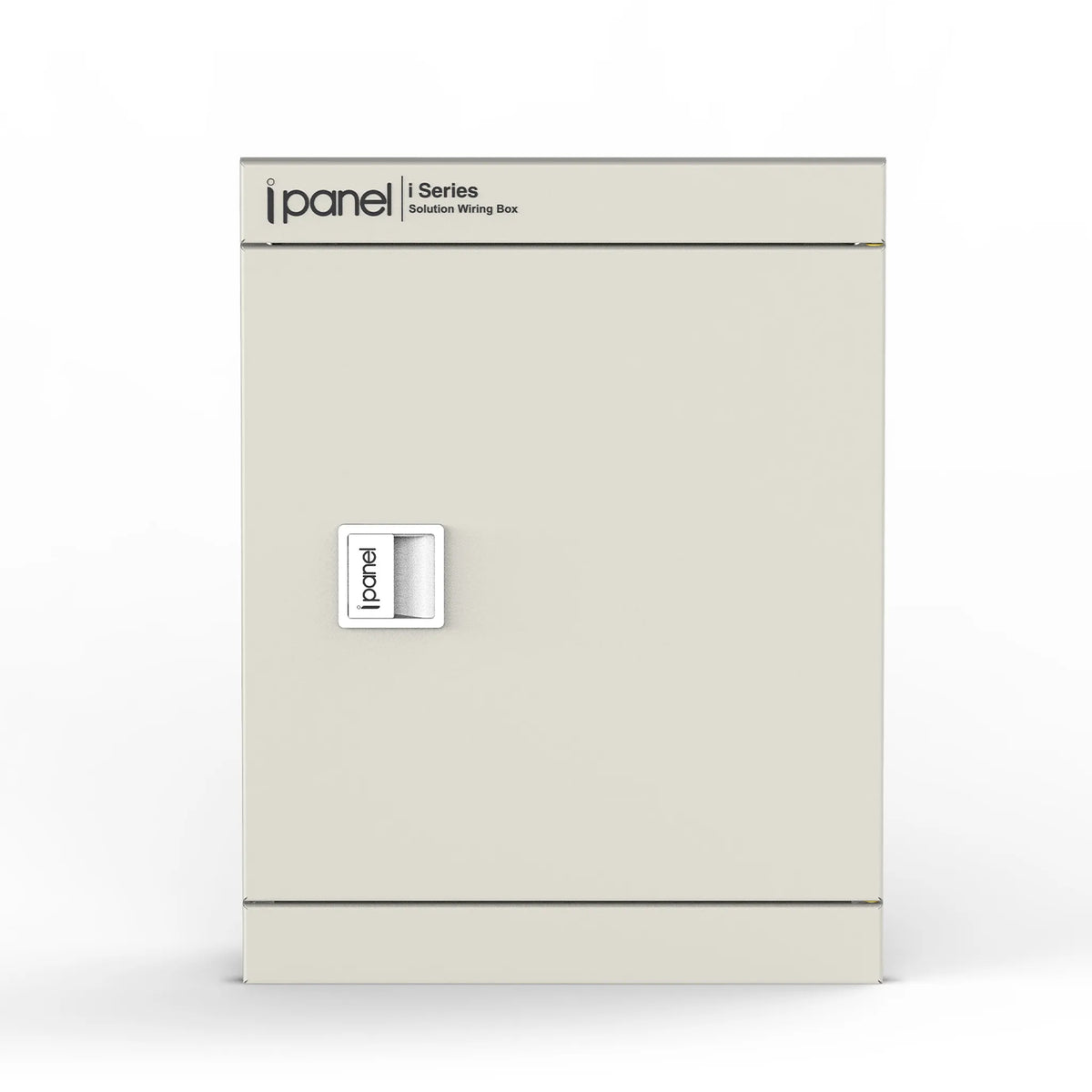

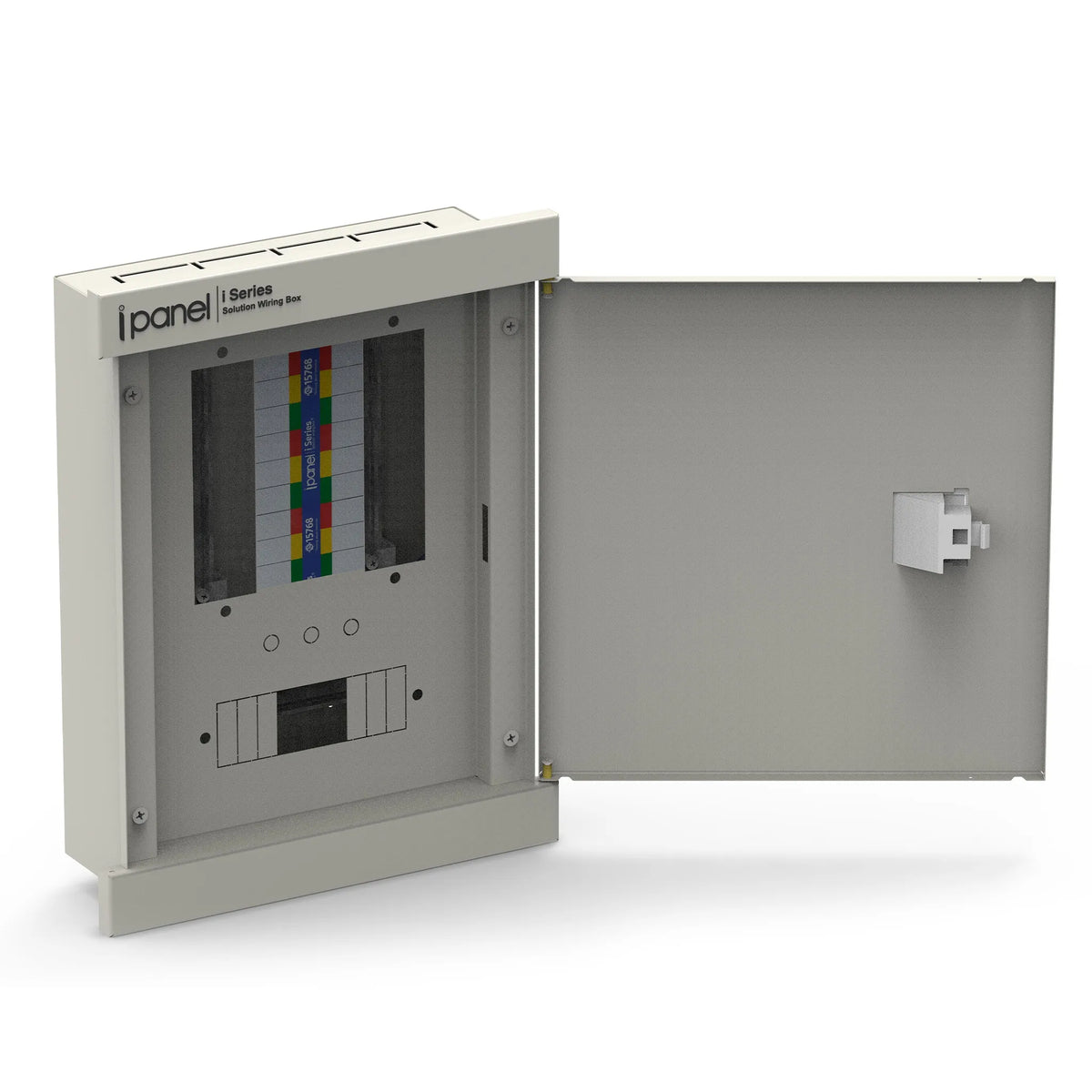

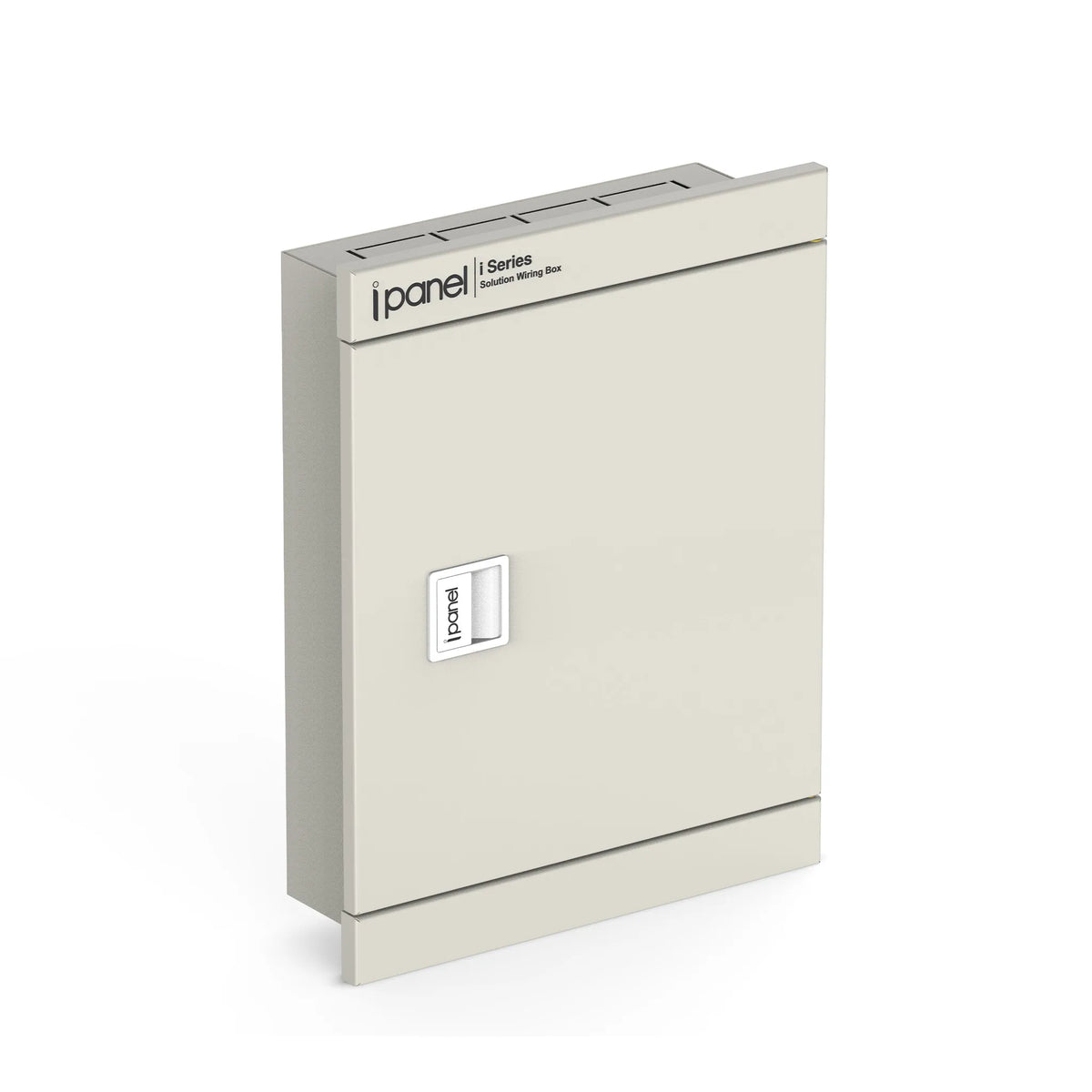

Electrical Distribution Board -L18FM

Electrical Distribution Board -L18FM allowing the main power supply to be distributed across a larger number of circuits and branches.

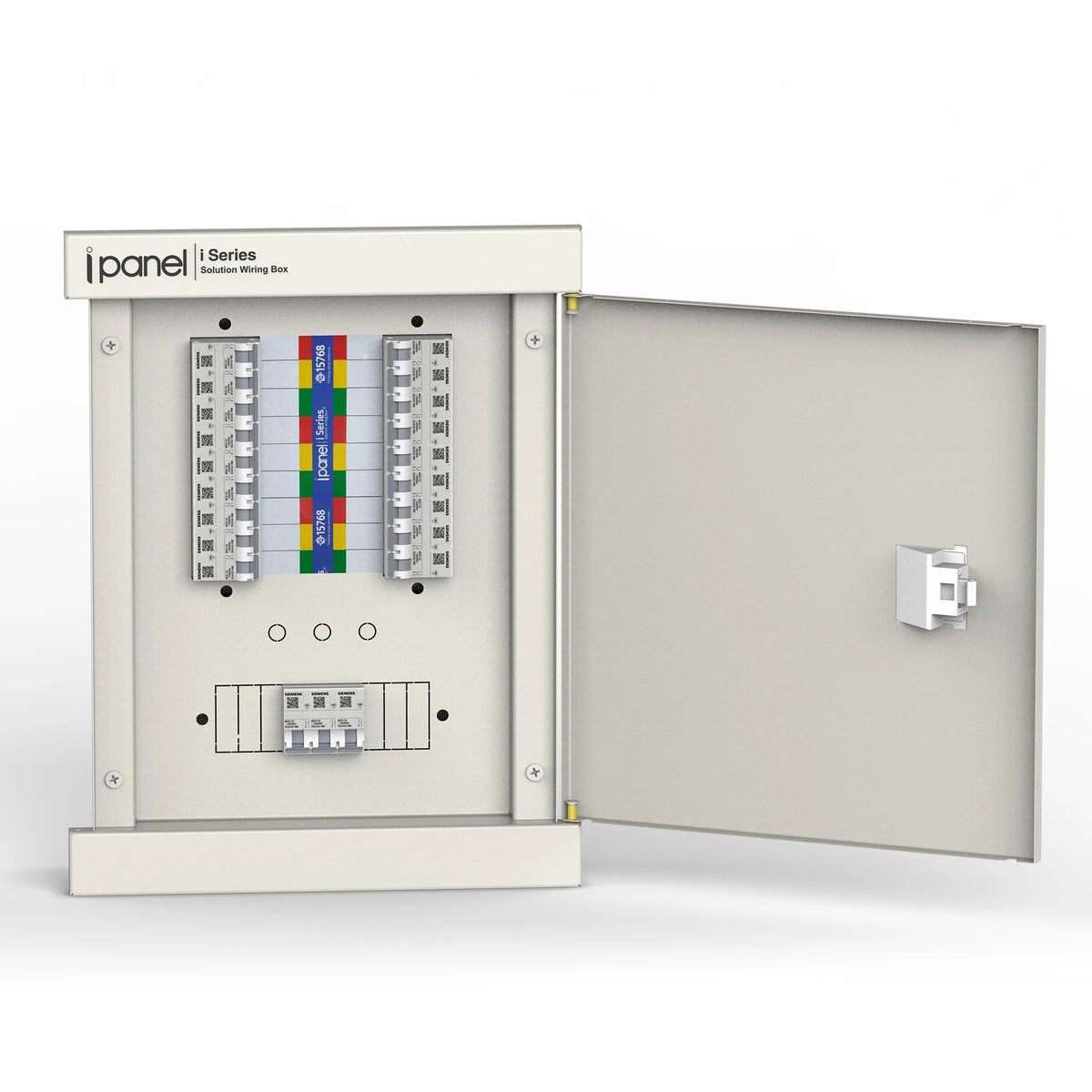

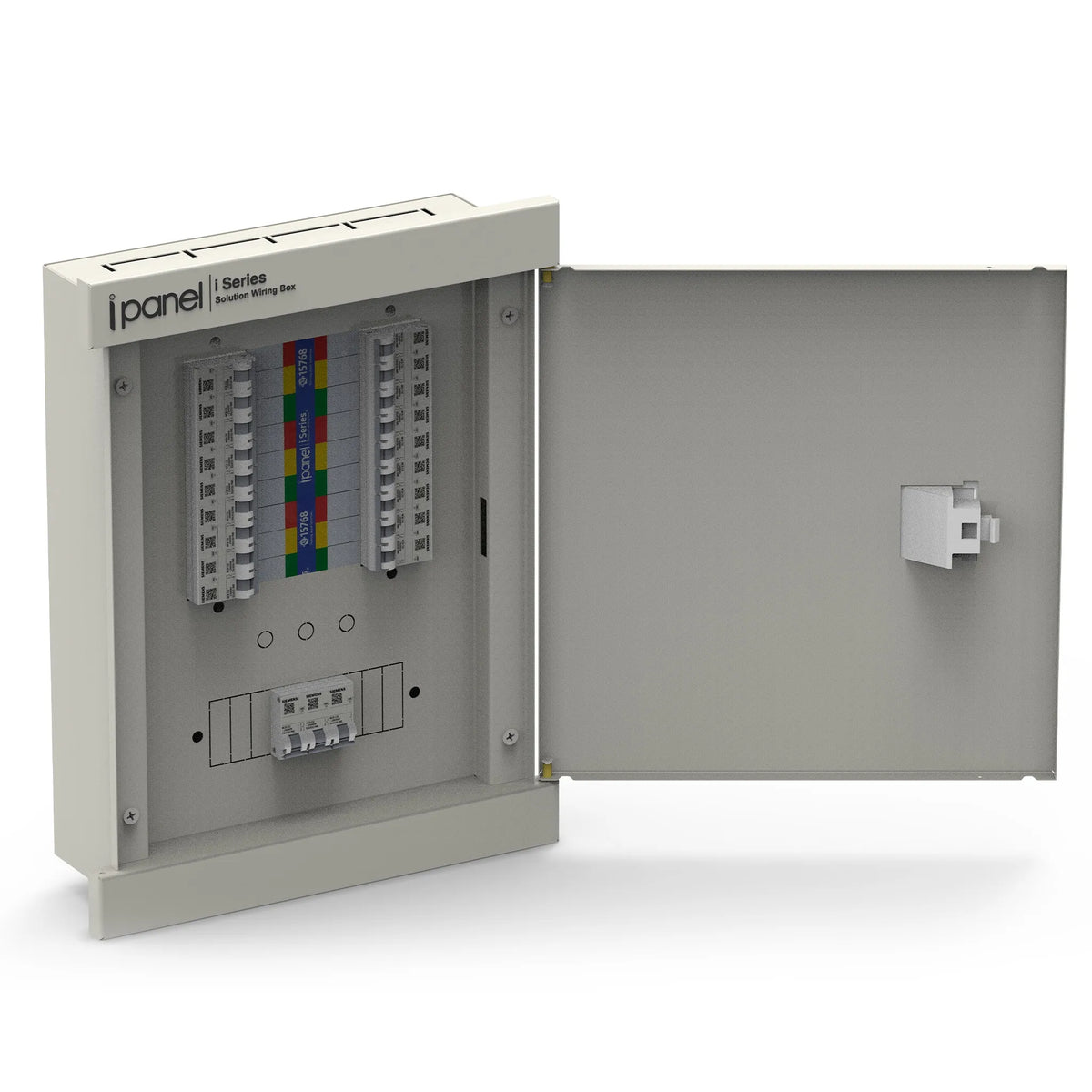

The L18FM-JUMBO design provides additional space for installing and organizing distribution and protection components compared to lower-capacity panels, while allowing easy access to the components during installation and maintenance.

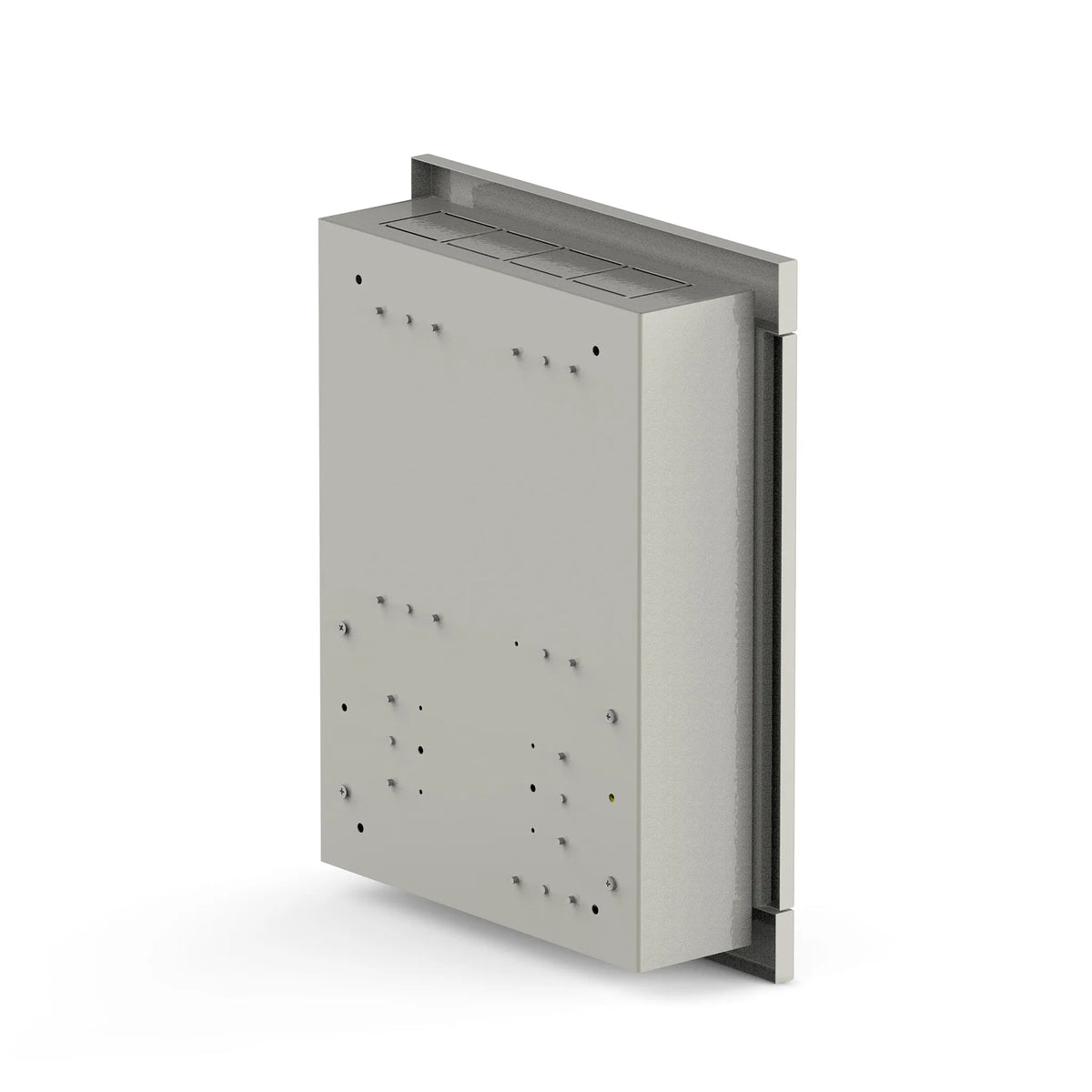

The panel also features ventilation openings at the top to improve airflow inside the enclosure and help reduce heat accumulation generated by operating electrical components.

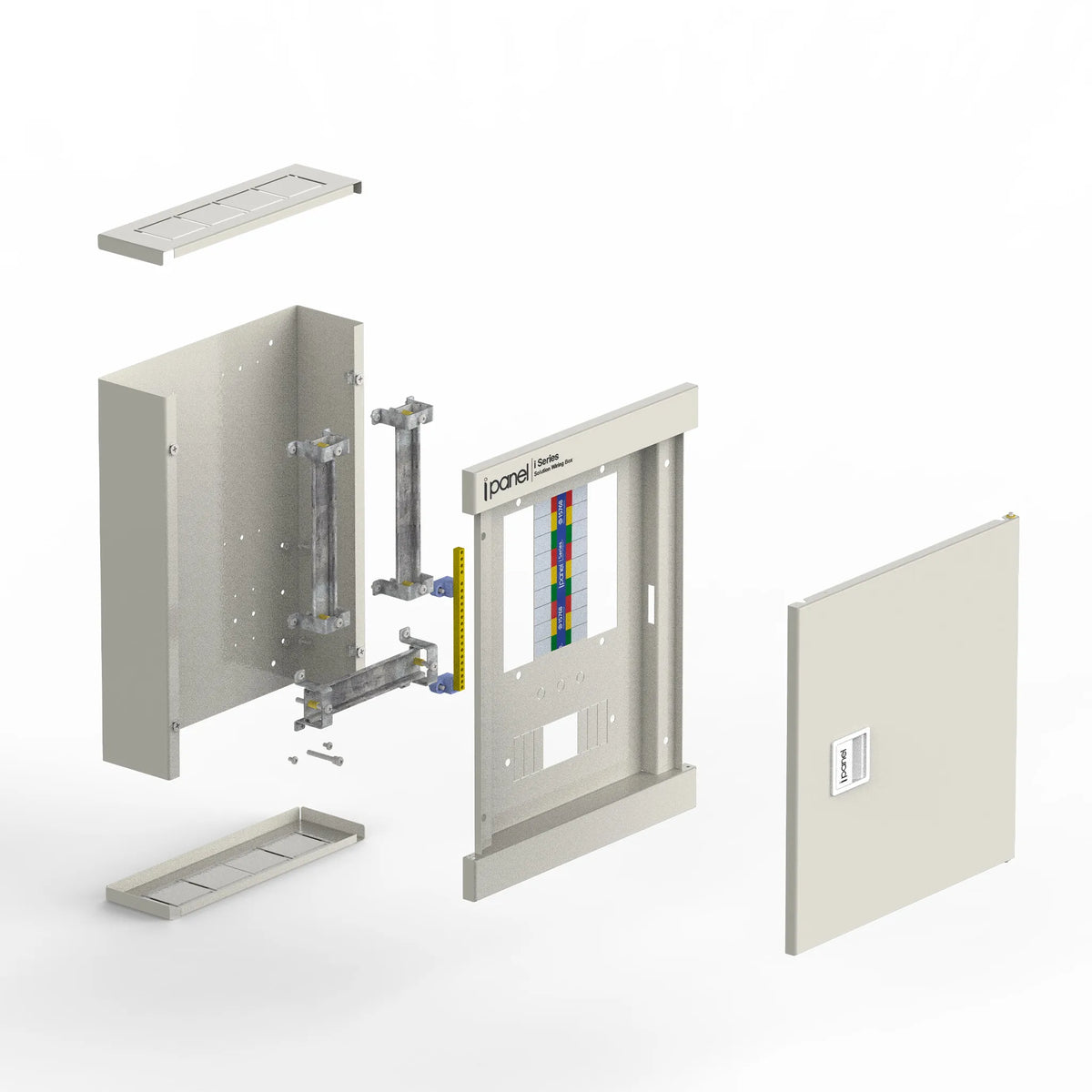

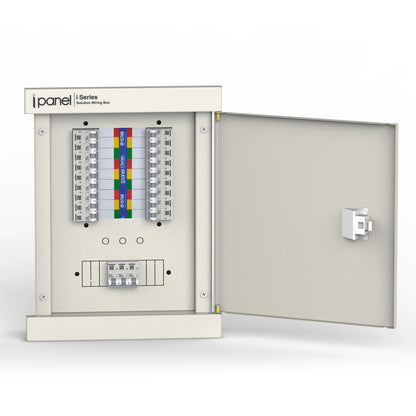

Panel Components

- Main Breaker Space

A dedicated space for installing the main breaker to control the main electrical supply and provide protection against overcurrent and short circuits.

- Copper Busbar Space

A dedicated space for installing copper busbars to distribute the electrical supply from the main source to the breakers and various circuits.

- Individual MCB Spaces

Dedicated spaces for installing branch circuit breakers, allowing each breaker to protect an individual line or electrical circuit.

- DIN Rail

Dedicated spaces for installing DIN Rails to mount various circuit breakers and electrical components in an organized manner, with easy removal and replacement when required.

- Terminal Block Spaces

Dedicated spaces for installing Terminal Blocks to organize and connect incoming and outgoing cables, making wiring identification and maintenance easier.

- Test Points

Dedicated spaces for adding test and measurement points, helping facilitate electrical testing during operation and maintenance.
