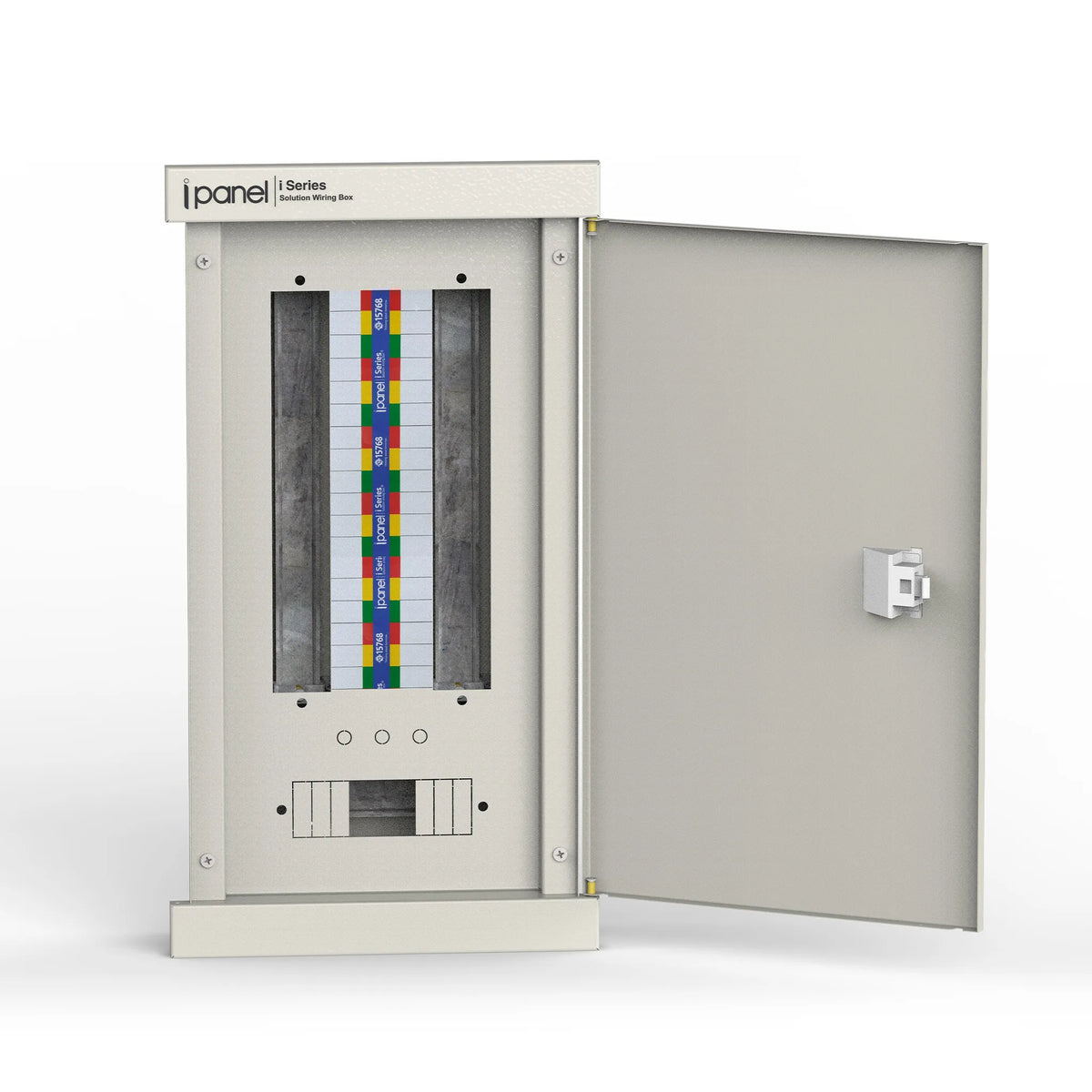

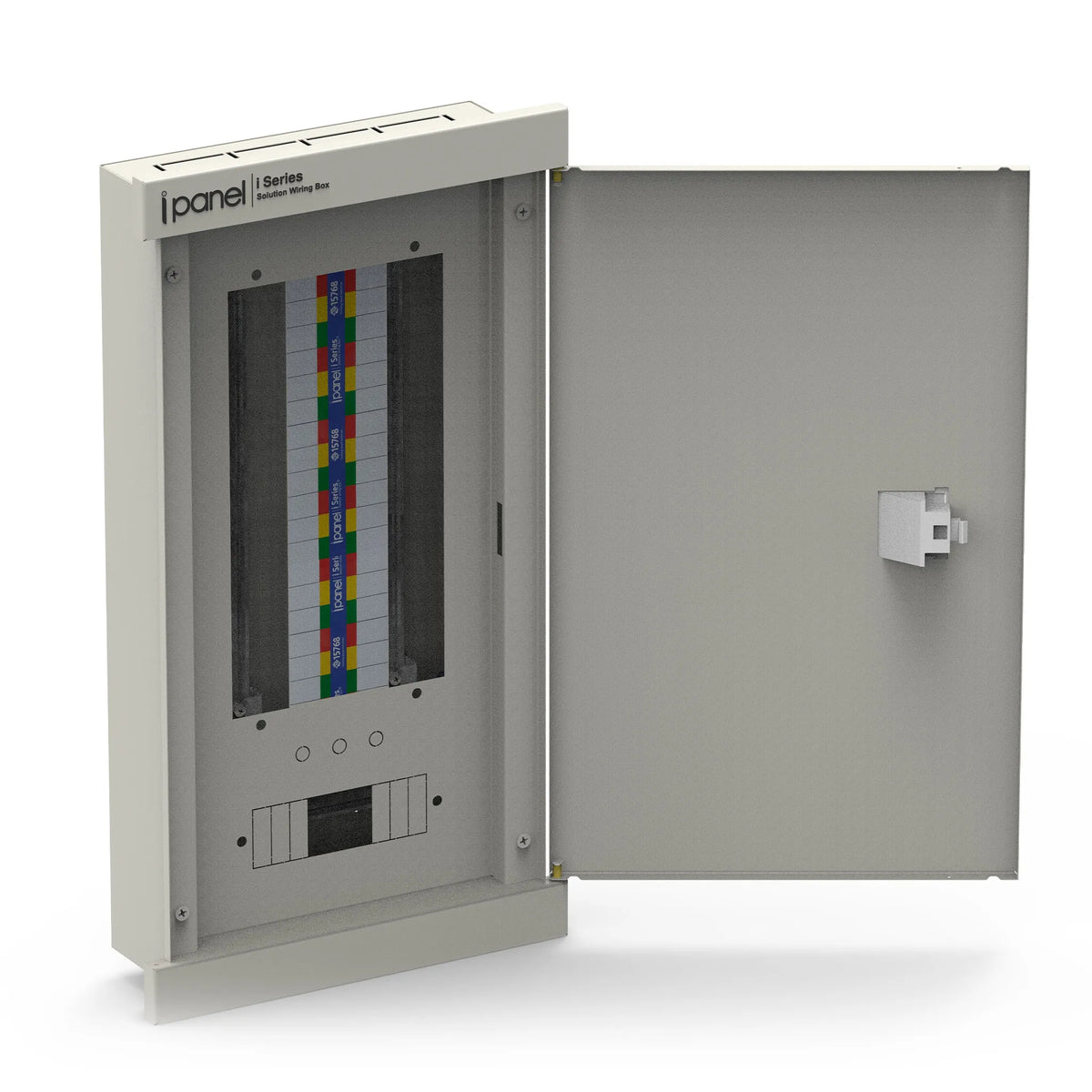

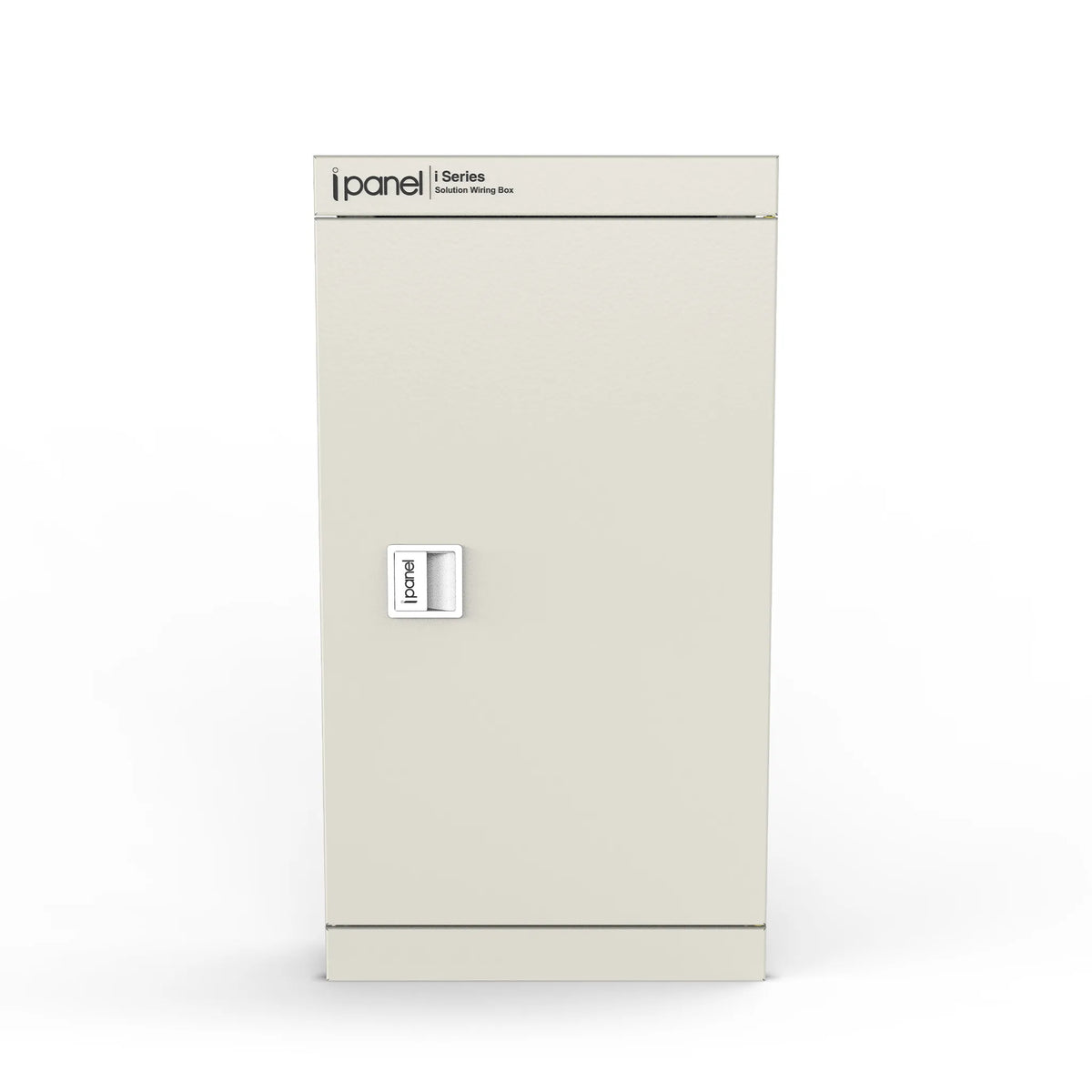

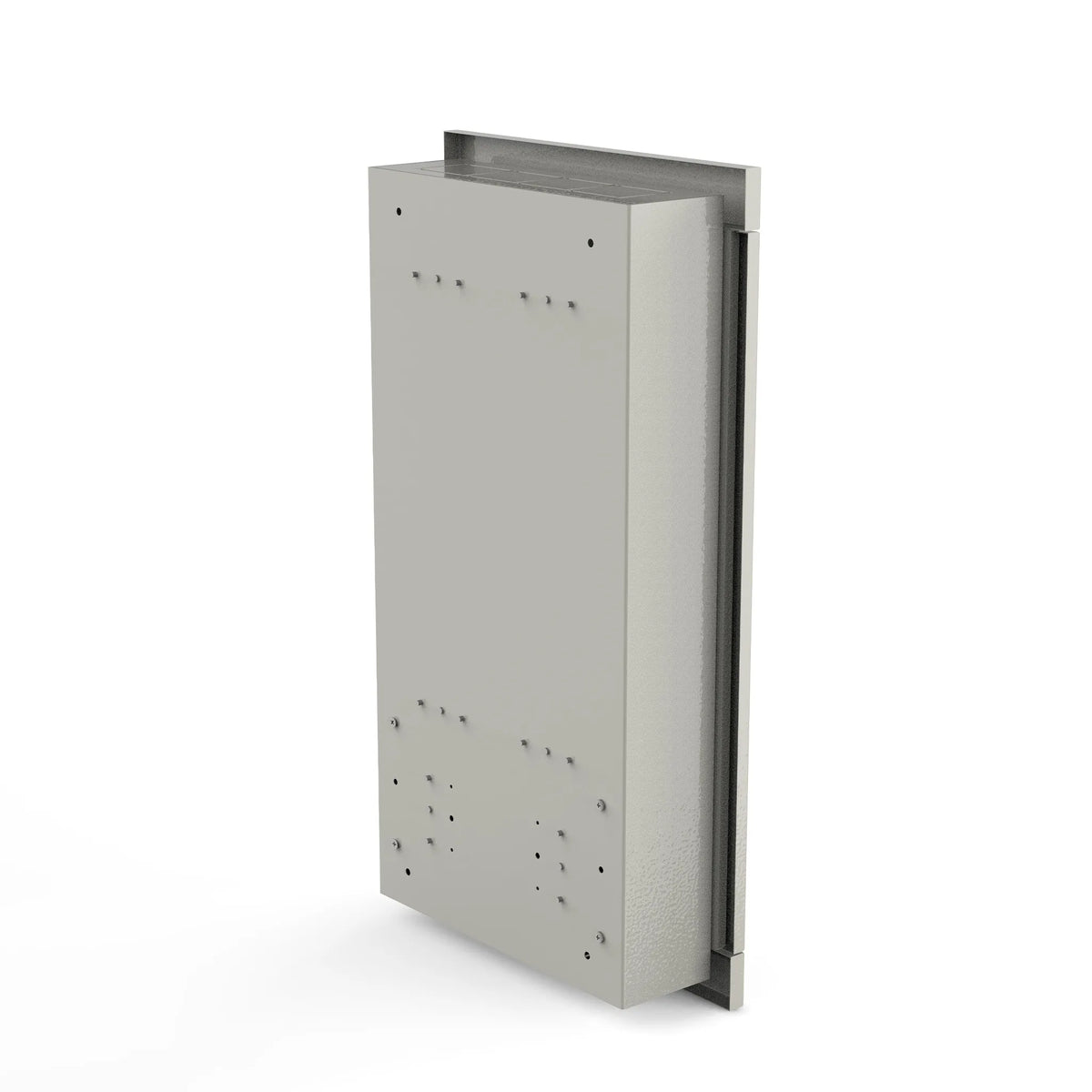

Electrical Distribution Board -L36FM

Electrical Distribution Board -L36FM is the ultimate electrical distribution board from the i Series, manufactured by Star Trans, engineered specifically for enterprise-scale and ultra-demanding industrial facilities requiring the absolute maximum electrical distribution capacity and comprehensive system management.

The panel serves as the premier central distribution point, equipped to accommodate the most extensive array of electrical components according to the most complex project requirements, enabling the main power supply to be distributed across the largest possible number of circuits and branches with maximum efficiency, reliability, and professional organization.

The L36FM-JUMBO design provides unparalleled space for installing and organizing distribution and protection components, delivering exceptional capacity substantially greater than all lower-tier panels, while maintaining optimized access to components during installation and maintenance. This enterprise-class capacity enables comprehensive electrical system solutions for the most demanding enterprise environments.

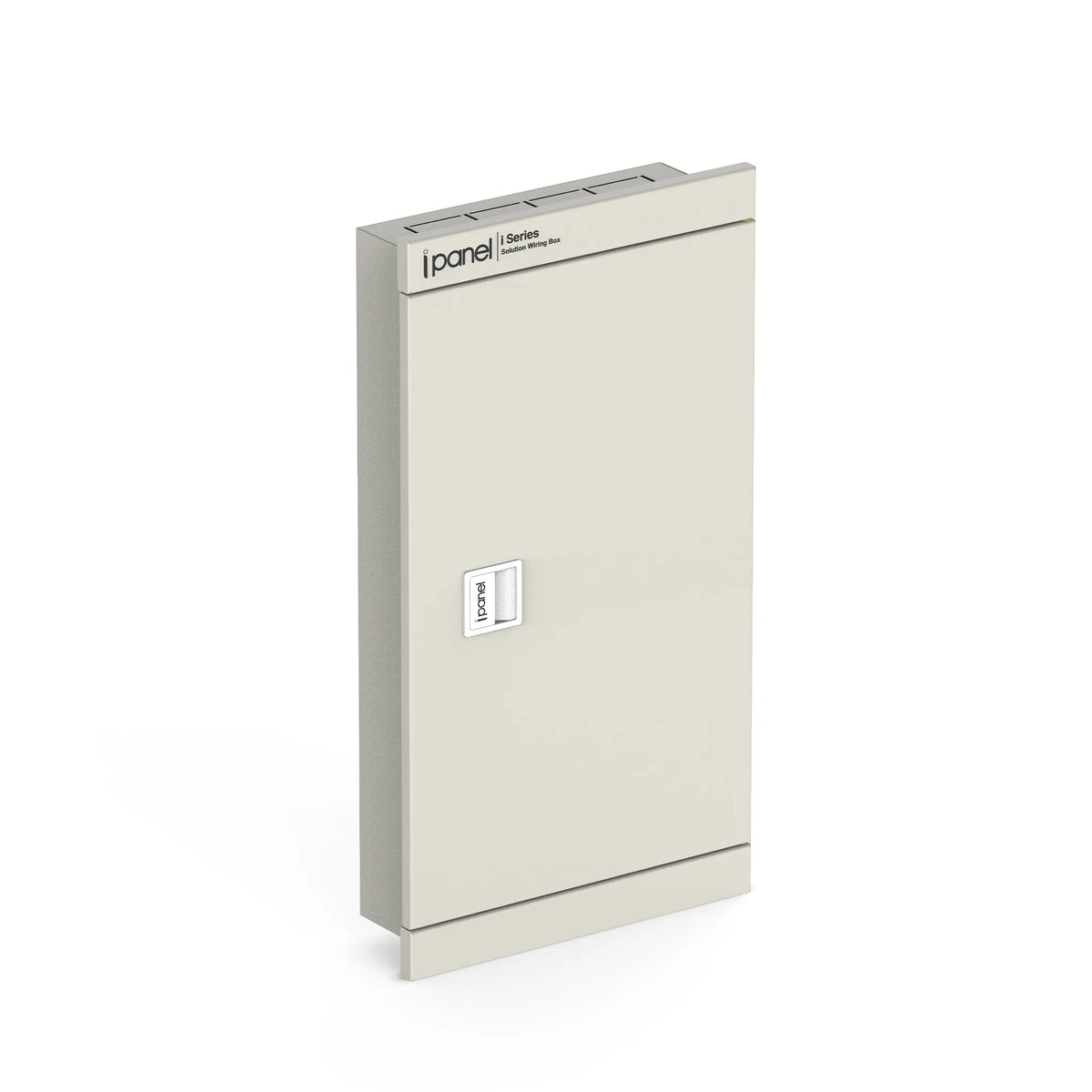

The panel features state-of-the-art precision-engineered ventilation openings strategically positioned at the top and sides to optimize airflow throughout the entire enclosure and effectively reduce heat accumulation generated by operating electrical components. This advanced thermal management design ensures reliable long-term operation even under sustained maximum load conditions in the most extreme environments.

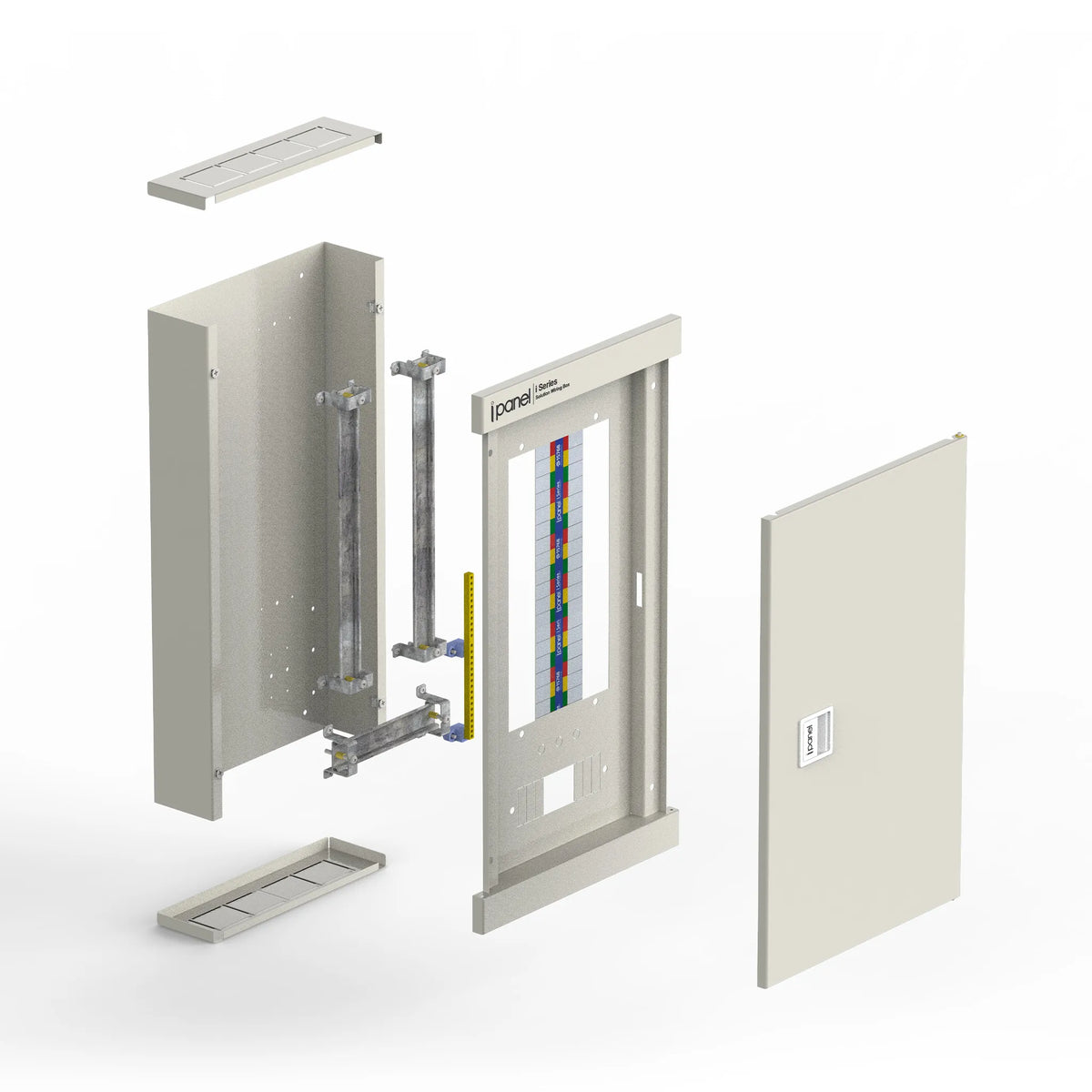

Panel Components

• Main Breaker Space

An expansive dedicated space for installing the ultra-high-capacity main breaker to control the main electrical supply and provide comprehensive protection against overcurrent and short circuits. This critical component serves as the primary safety device for the entire enterprise-scale distribution network.

• Copper Busbar Space

A premium expansive space for installing premium-grade copper busbars with optimized geometry to distribute the electrical supply from the main source to the breakers and various circuits. The copper conductors feature color-coded standardized configuration for proper phase identification and safe installation in enterprise applications.

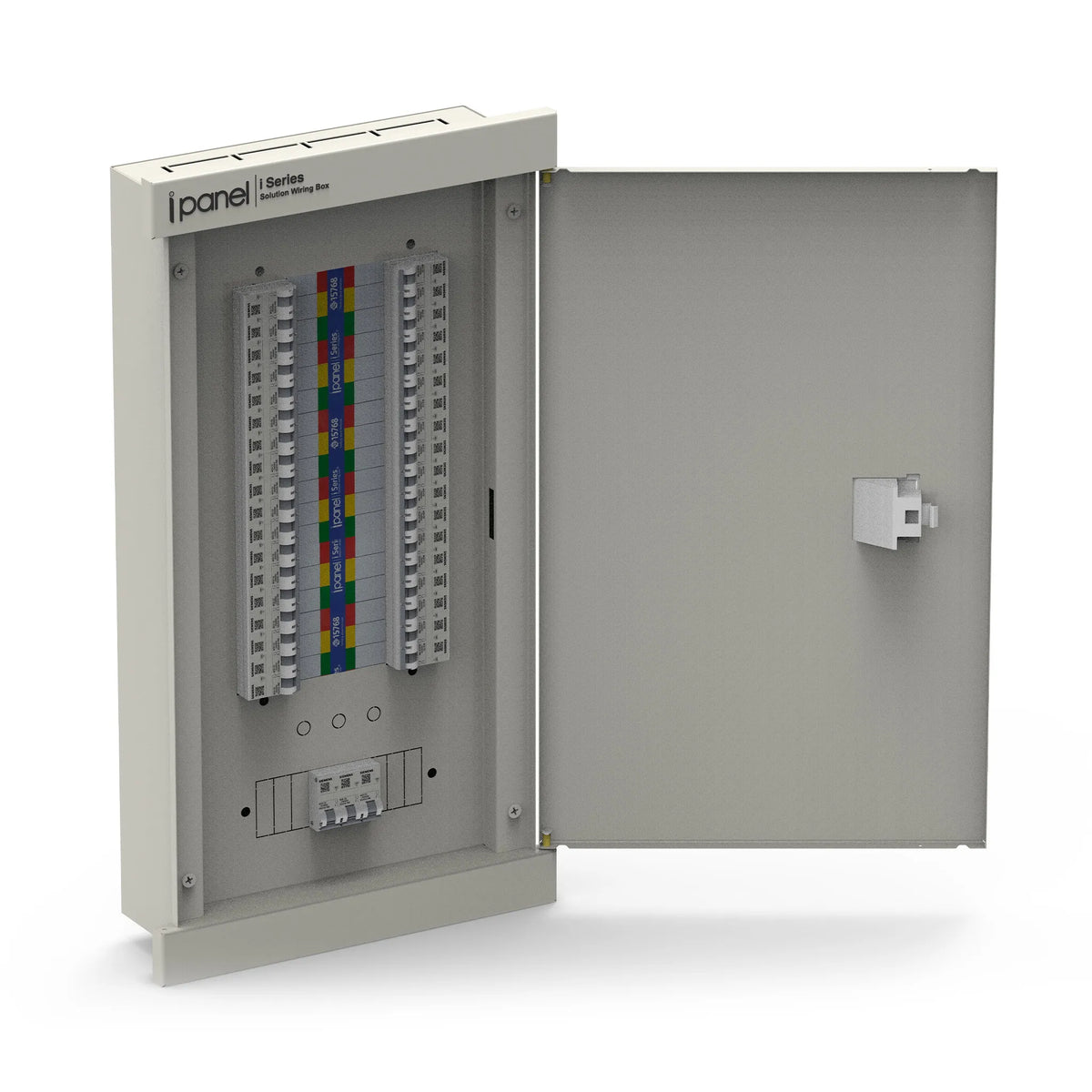

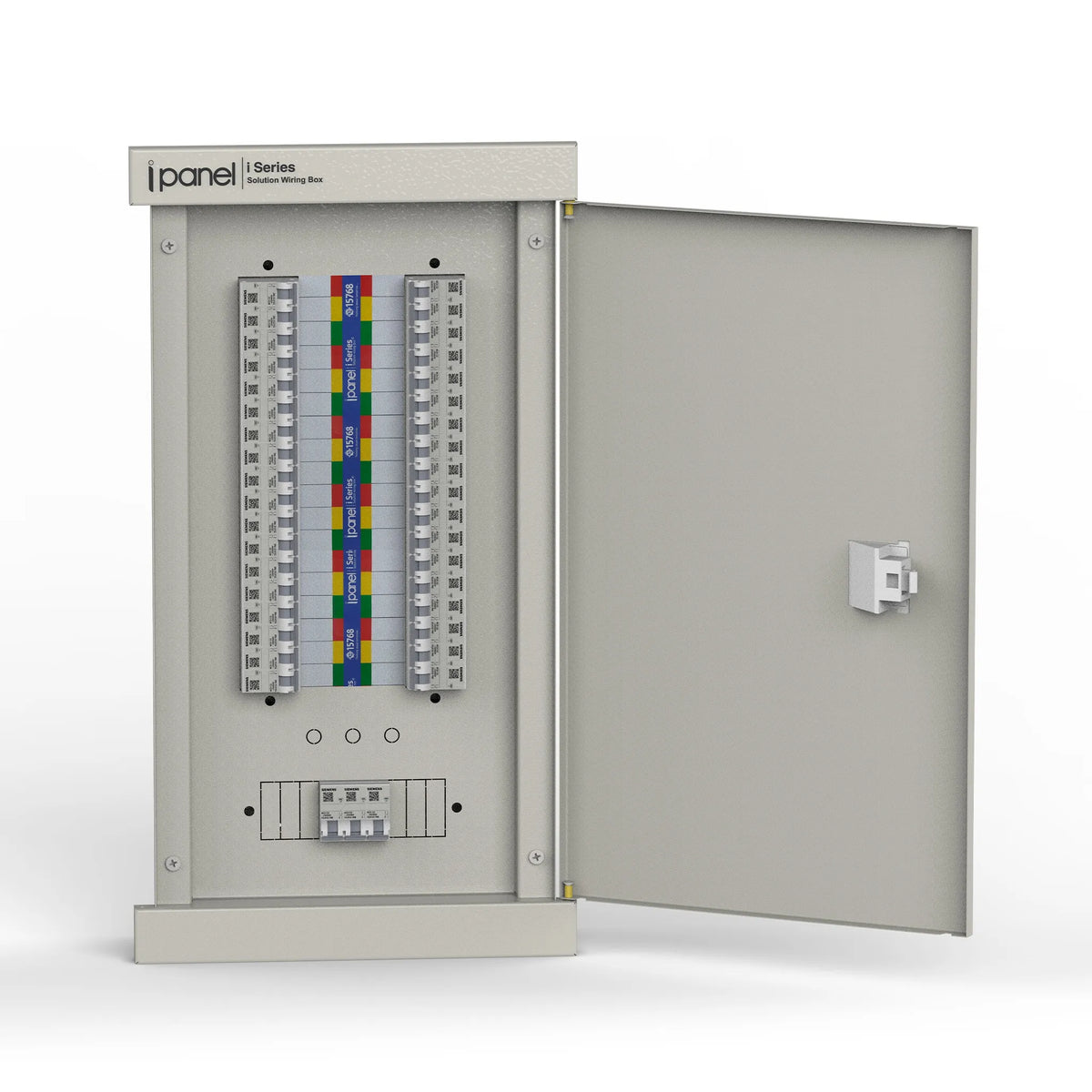

• Individual MCB Spaces

Extensive dedicated spaces for installing the maximum number of branch circuit breakers, allowing each breaker to independently protect individual lines or electrical circuits. This comprehensive modular protection approach enables selective power management and precise control of individual loads in ultra-complex multi-circuit configurations.

• DIN Rail

Extensive dedicated spaces for installing DIN Rails to mount the largest variety of circuit breakers and electrical components in professional organized manner. The standardized rail system provides exceptionally clean, professional component arrangement with simplified removal and replacement when required.

• Terminal Block Spaces

Extended premium spaces for installing professional-grade Terminal Blocks to organize and connect incoming and outgoing cables in ultra-high-density configurations. These enterprise-grade terminal blocks provide exceptional safety and reliability for complex high-capacity wiring schemes.

• Test Points

Dedicated spaces for adding test and measurement points, enabling comprehensive electrical testing during operation and maintenance. These strategically located test outlets facilitate safe measurements without requiring panel opening in large-scale enterprise installations.
