Jumbo Electrical Distribution Board | IPANEL L12FM (12 Lines)

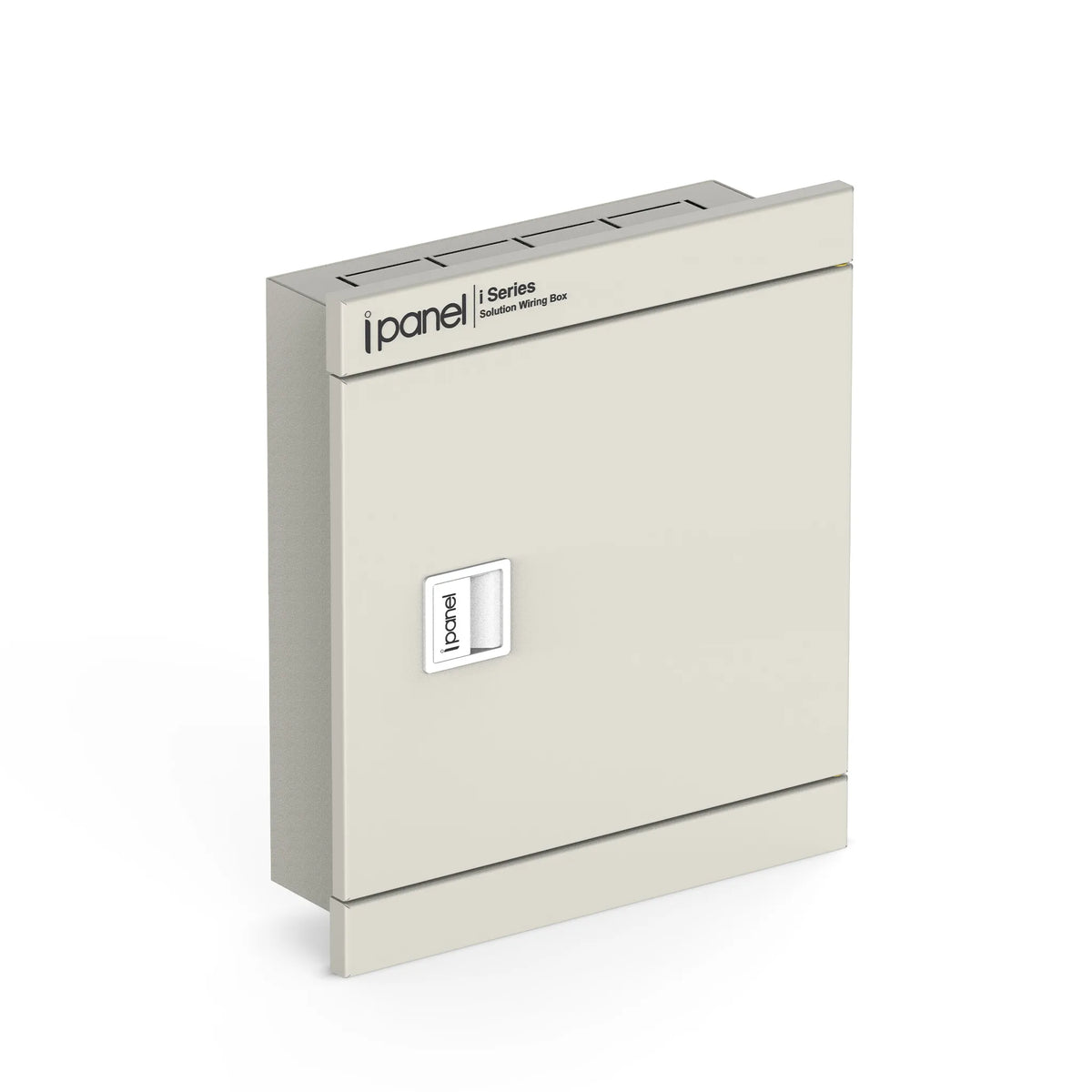

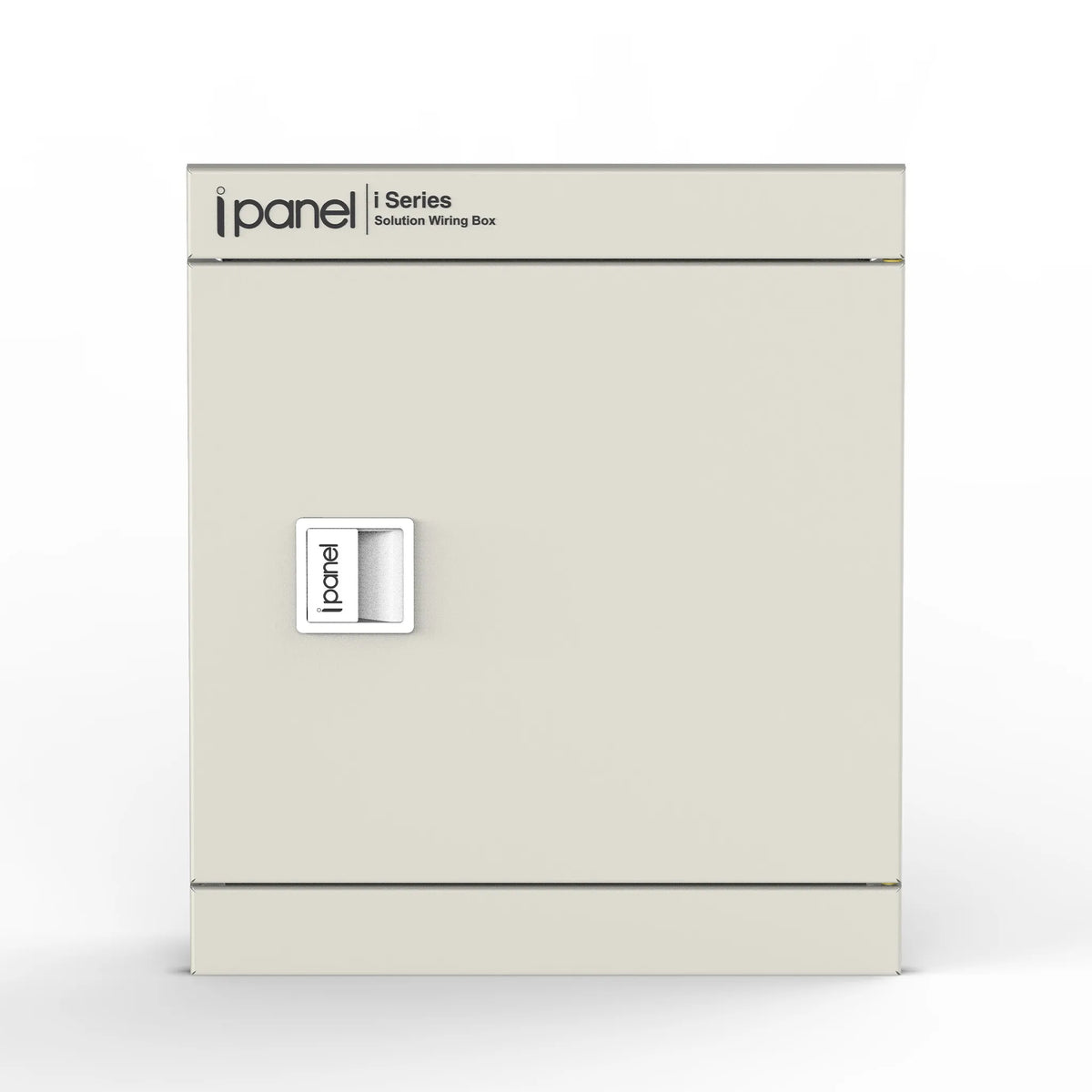

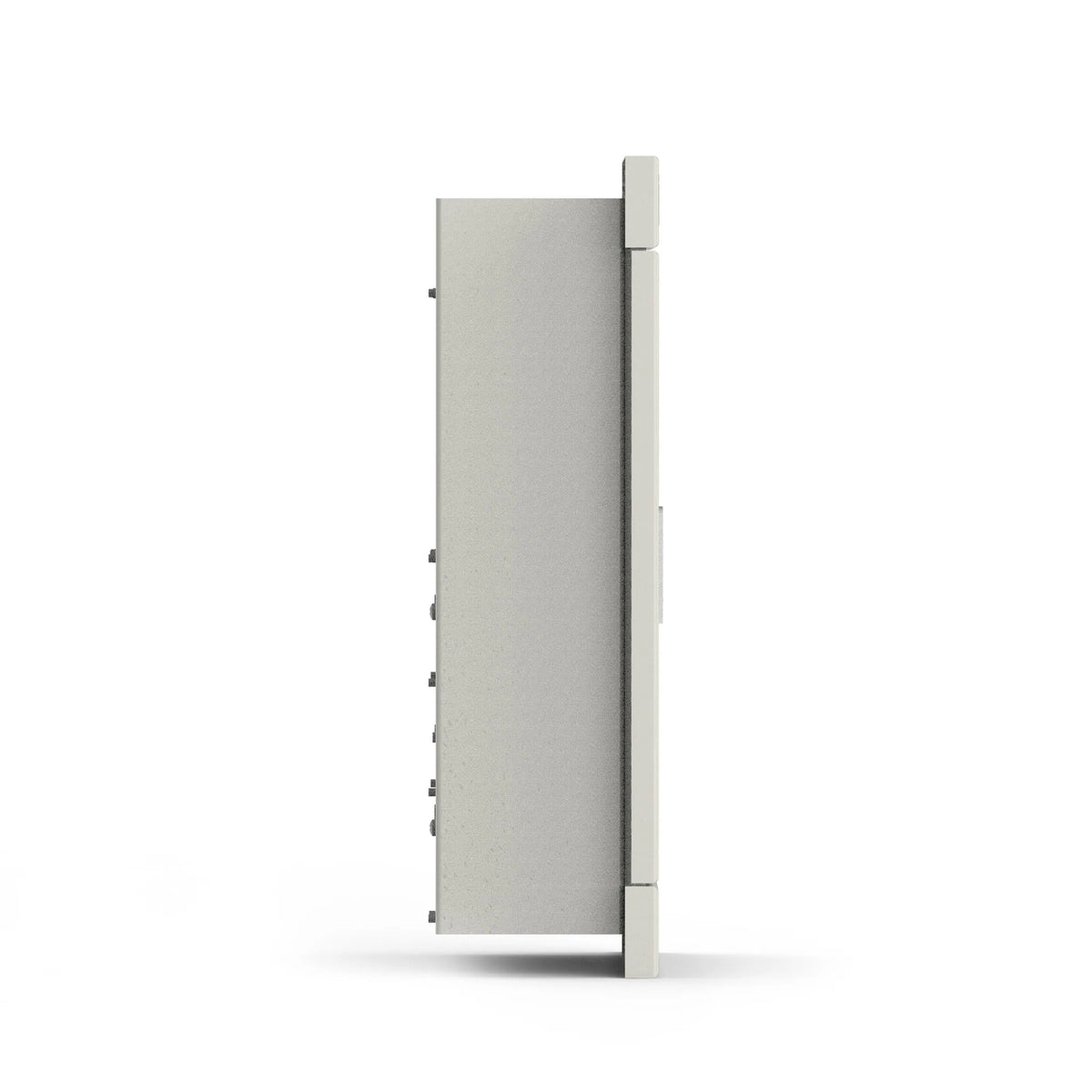

Electrical Distribution Boards -L12FM is an electrical distribution board from the i Series, manufactured by Star Trans, designed to organize and prepare electrical distribution circuits for industrial and commercial facilities.

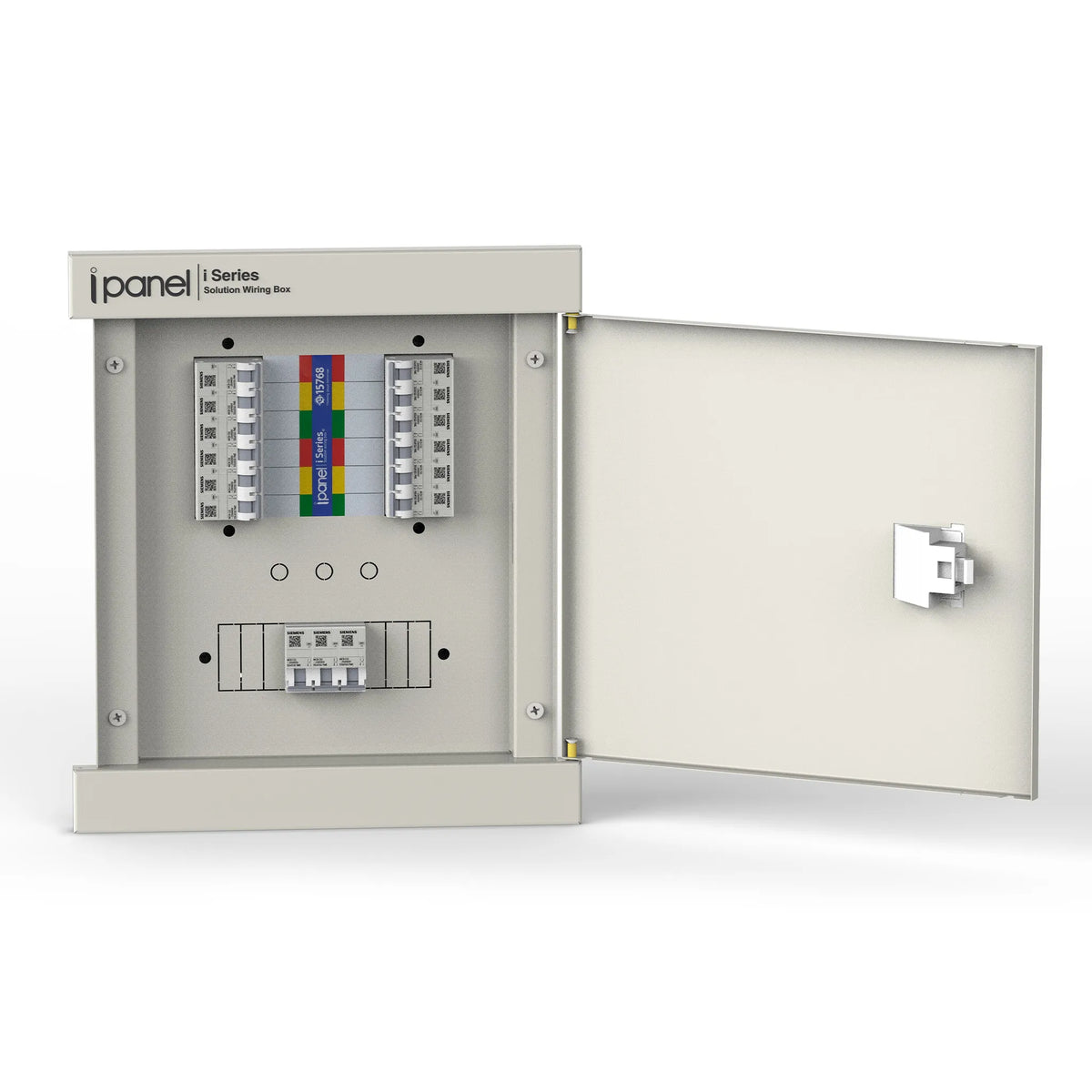

The panel is used as a central distribution point, where it can be equipped with the appropriate electrical components according to the project requirements, allowing the main power supply to be distributed across multiple circuits and branches.

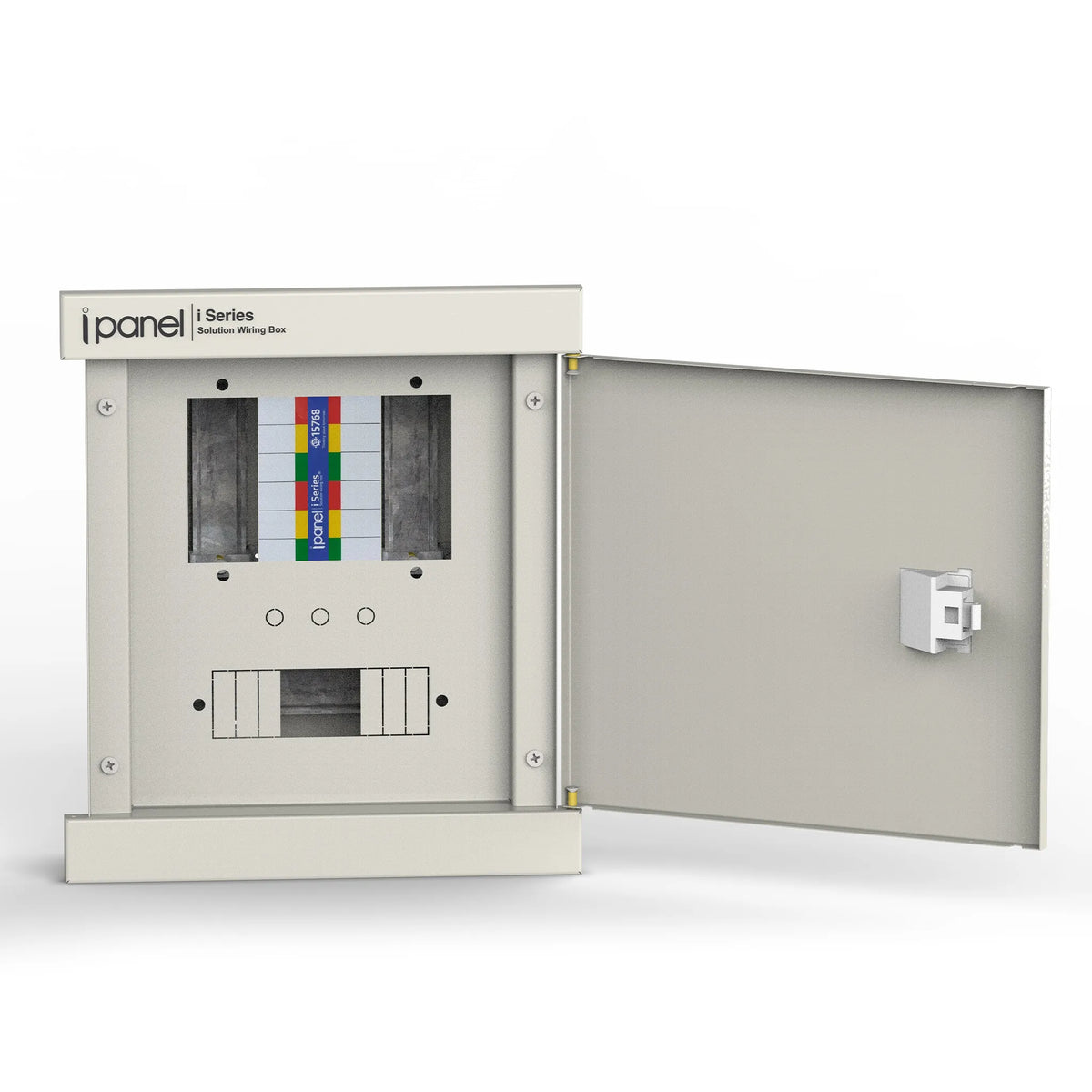

The panel features a practical design that provides suitable space for installing the main breaker, copper busbars, individual branch breakers, and connection components, while allowing easy access during installation and maintenance.

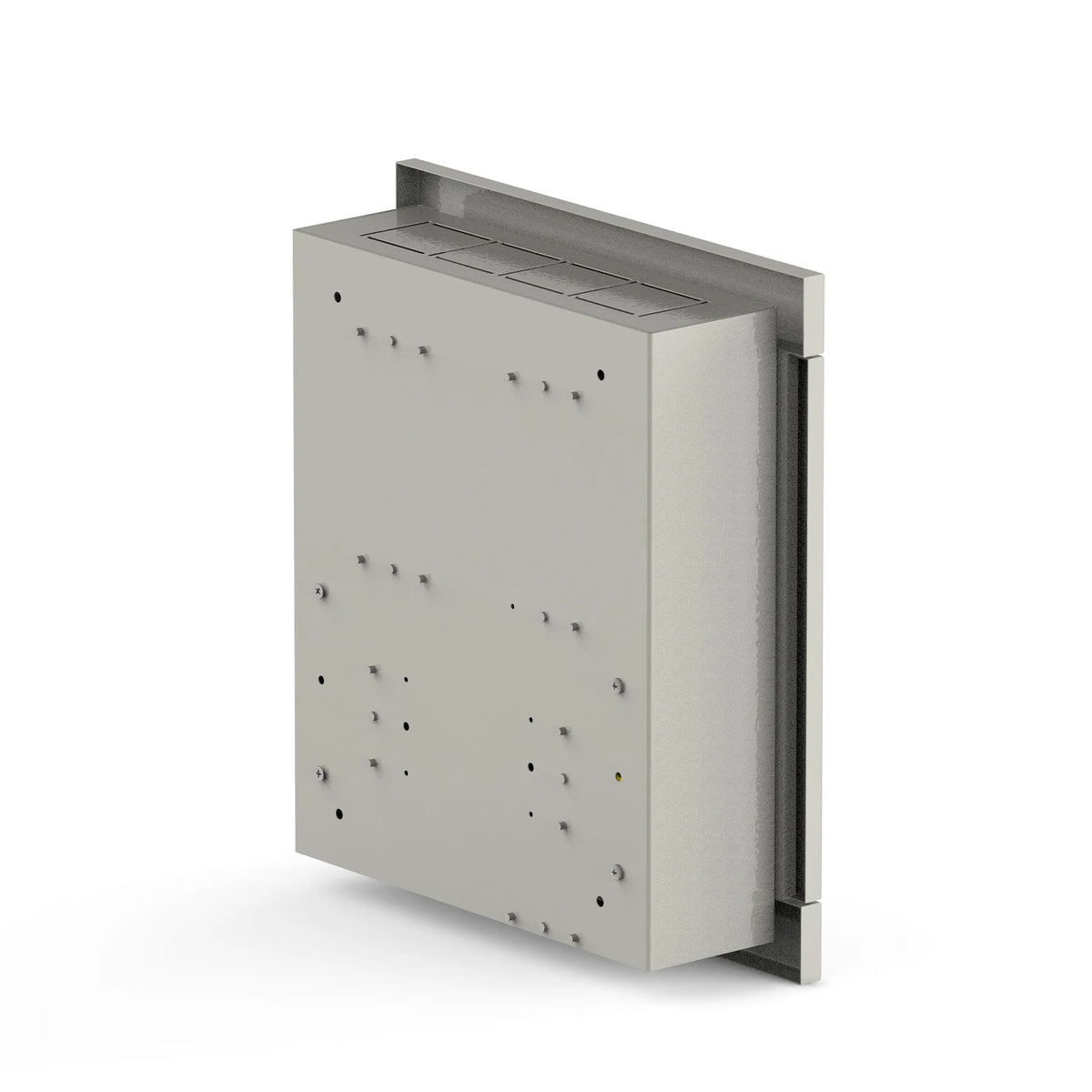

It also features ventilation openings at the top to help improve airflow inside the panel and reduce heat accumulation generated by operating electrical components.

Panel Components

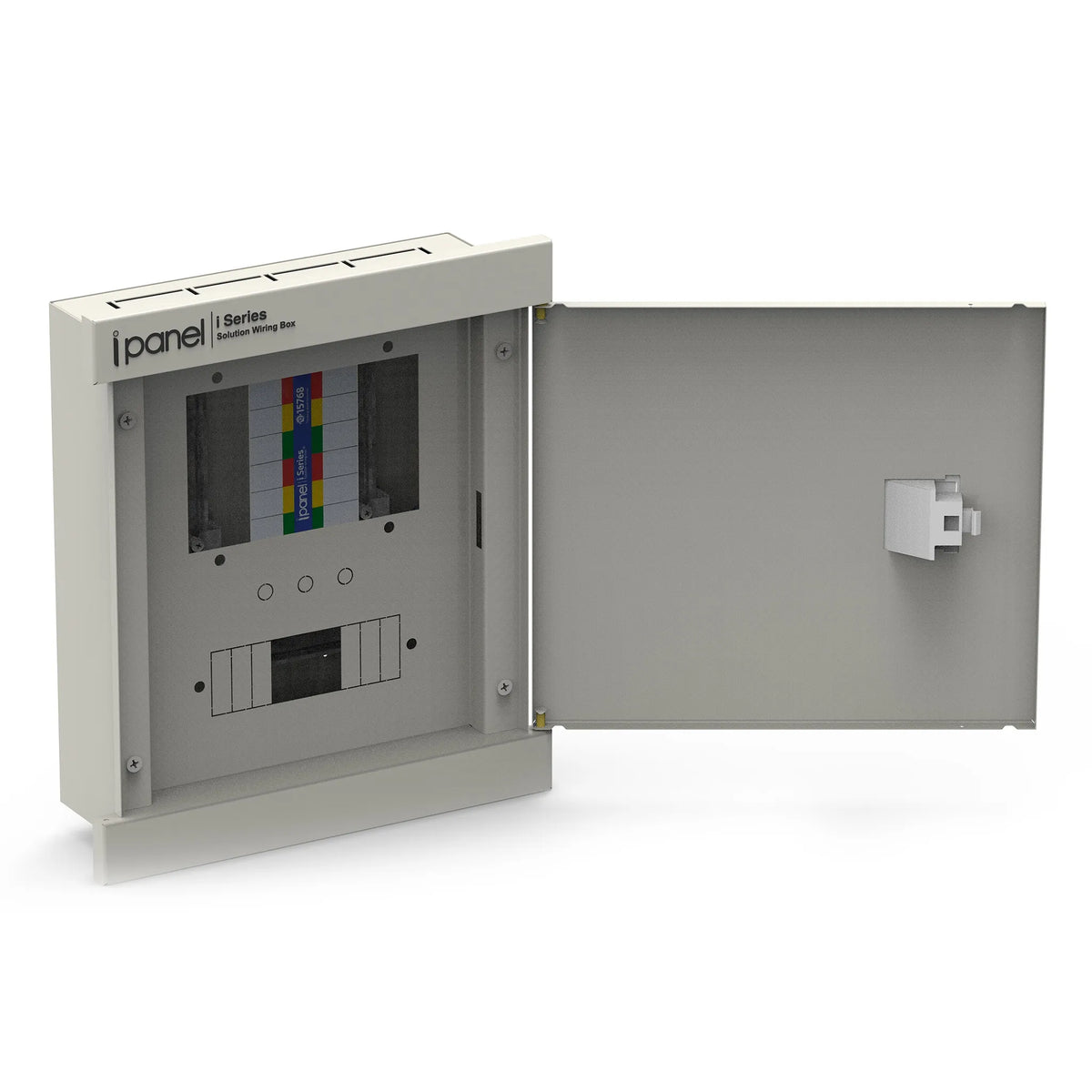

- Main Breaker Space

A dedicated space for installing the main breaker to control the electrical supply and provide protection against overcurrent and short circuits.

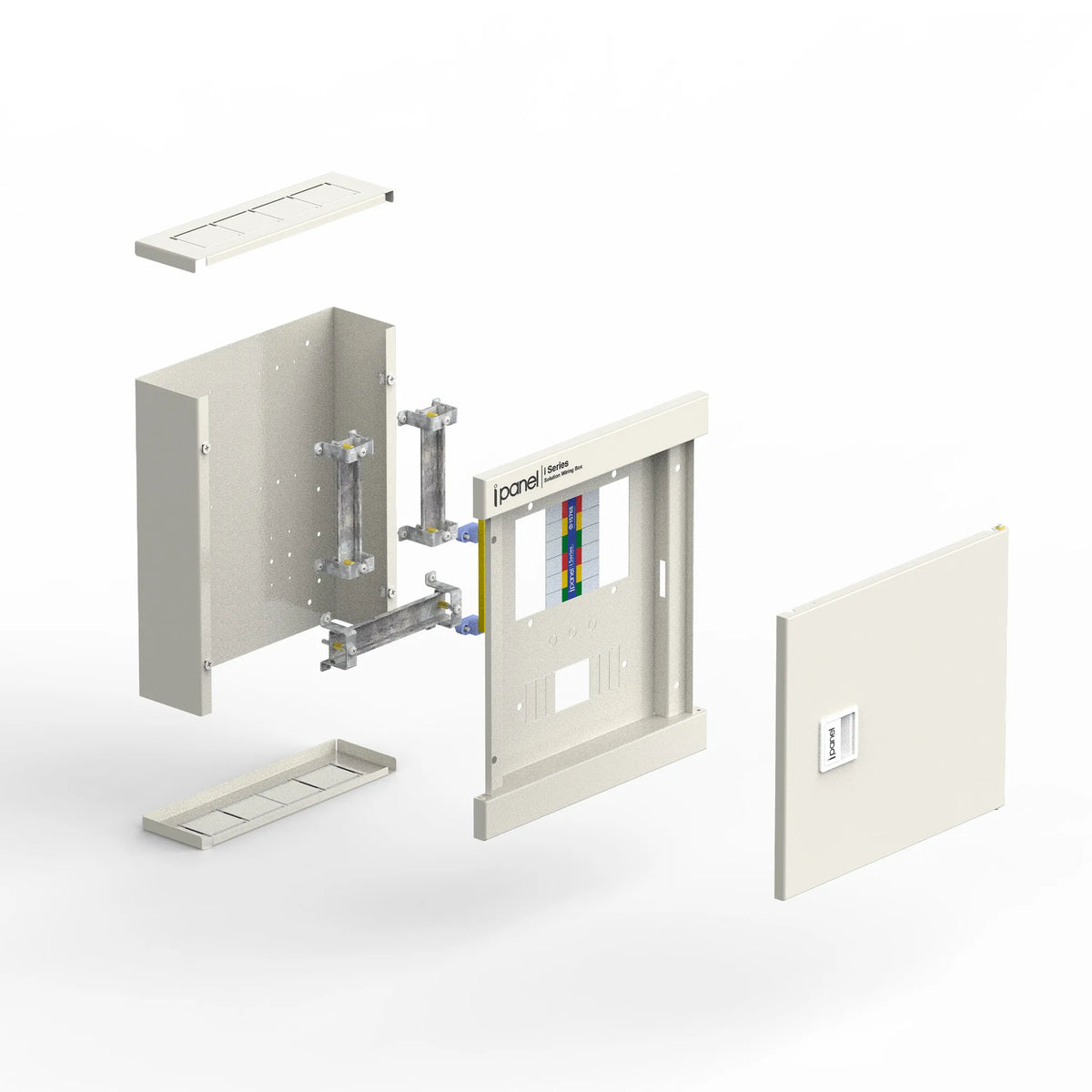

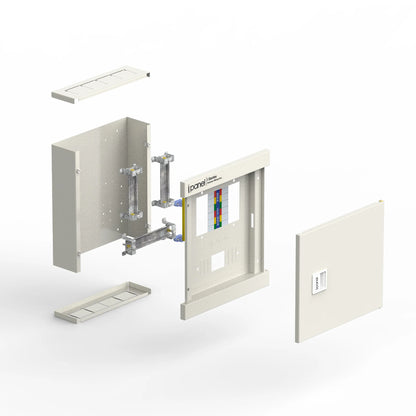

- Copper Busbar Space

A dedicated space for installing copper busbars, which distribute electrical power from the main supply to the breakers and various circuits.

- Individual MCB Spaces

Dedicated spaces for installing branch circuit breakers, allowing each breaker to protect an individual line or electrical circuit.

- DIN Rail

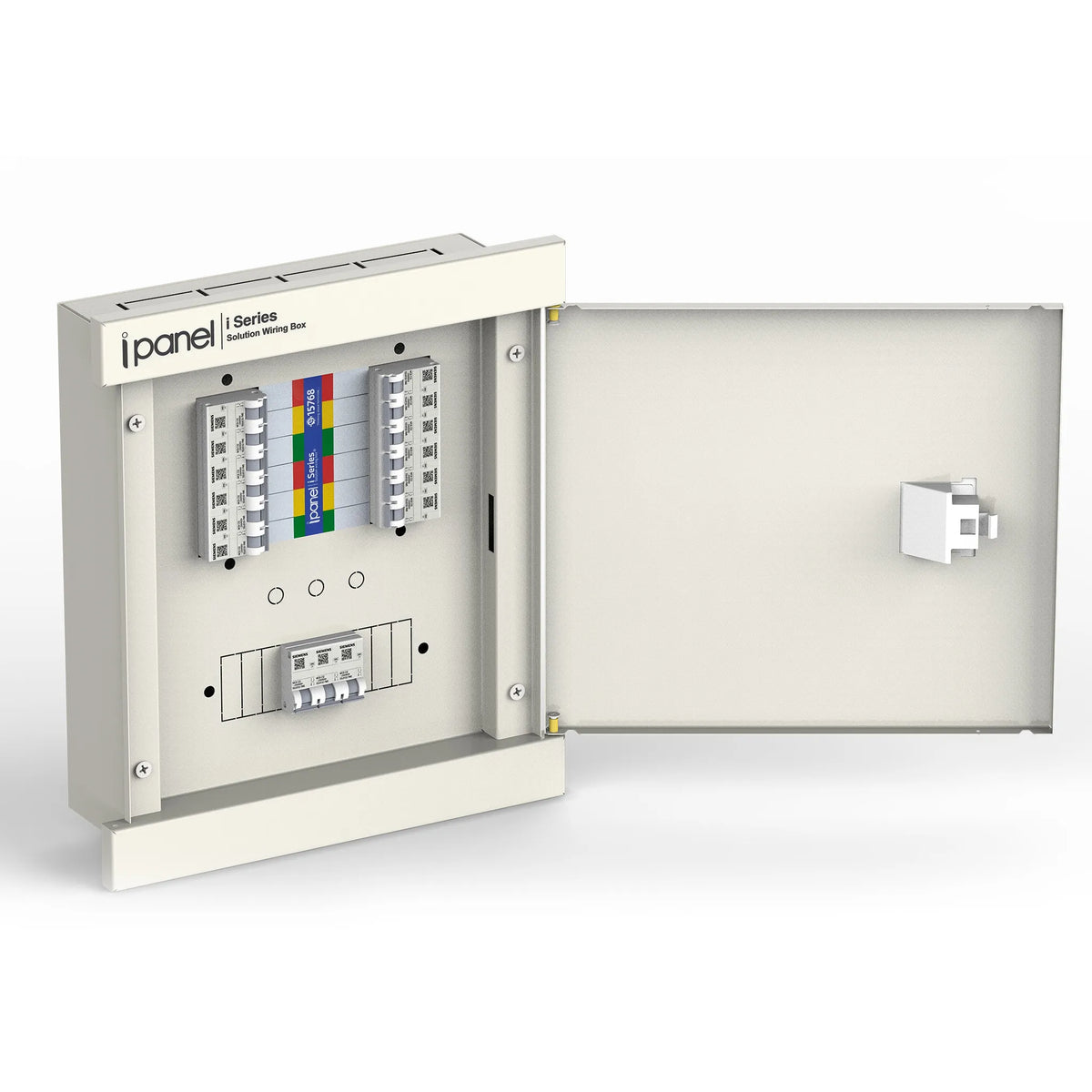

The panel includes dedicated spaces for DIN Rails to mount various circuit breakers and electrical components in an organized manner, with easy removal and replacement when required.

- Terminal Block Spaces

Dedicated spaces for installing Terminal Blocks to organize and connect incoming and outgoing cables, making wiring identification and maintenance easier.

- Test Points

Dedicated spaces for adding test and measurement points, helping facilitate electrical testing during operation and maintenance.
