Standard Electrical Distribution Board – I Panel L36FM
The Star Trans Standard I Panel L36FM electrical distribution board is designed to organize electrical circuits in a Steel 37 enclosure. Unlike the Jumbo version, the Standard model does not feature removable plastic covers for installing additional circuit breakers.
Model: IPANEL-L36FM | Type: Standard electrical distribution board | Line capacity: 36 lines.

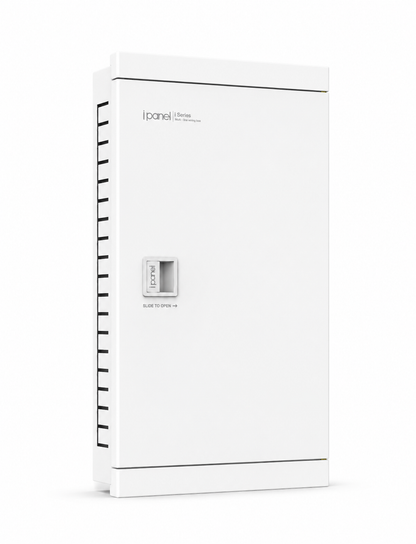

The I Panel L36FM is a heavy-duty flush-mount distribution enclosure designed for installations requiring 36 circuit positions. Constructed from Steel 37 with a durable RAL 9116 powder-coated surface, it offers strong mechanical protection and resistance to corrosion in demanding environments. The larger housing is well-suited for commercial buildings, multi-unit residential developments, and industrial control applications where high circuit density and accessible cable management are priorities. Comes with pre-installed door lock and hinges, DIN rail, neutral bar, and earth bar. Mounting plates and additional accessories are ordered separately.
| Specification | Value |
| Model | I PANEL-L36FM |
| Number of Lines | 36 |
| Flush Mount (Recessed / دفن) | |
| Protection Class | IP23 |
| Surface Finish | RAL 9116 Powder Coated |
| Weight | 16 KG |
| Dimension A (Width) | 340 mm |
| Dimension B (Depth) | 105 mm |
| Dimension C (Height) | 630 mm |
| Dimension D (Inner Height) | 590 mm |
| Material | Steel 37 |
| Installation Method | Flush-mounted (recessed into the wall) |
المواصفات الفنية
| المواصفة | القيمة |
|---|---|
| مادة الصناعة | ستيل 37 |
| طريقة التركيب | دفن داخل الحائط |
