Standard Electrical Distribution Board – I Panel L12FM
The Star Trans Standard I Panel L12FM electrical distribution board is designed to organize electrical circuits in a Steel 37 enclosure. Unlike the Jumbo version, the Standard model does not feature removable plastic covers for installing additional circuit breakers.
Model: IPANEL-L12FM | Type: Standard electrical distribution board | Line capacity: 12 lines.

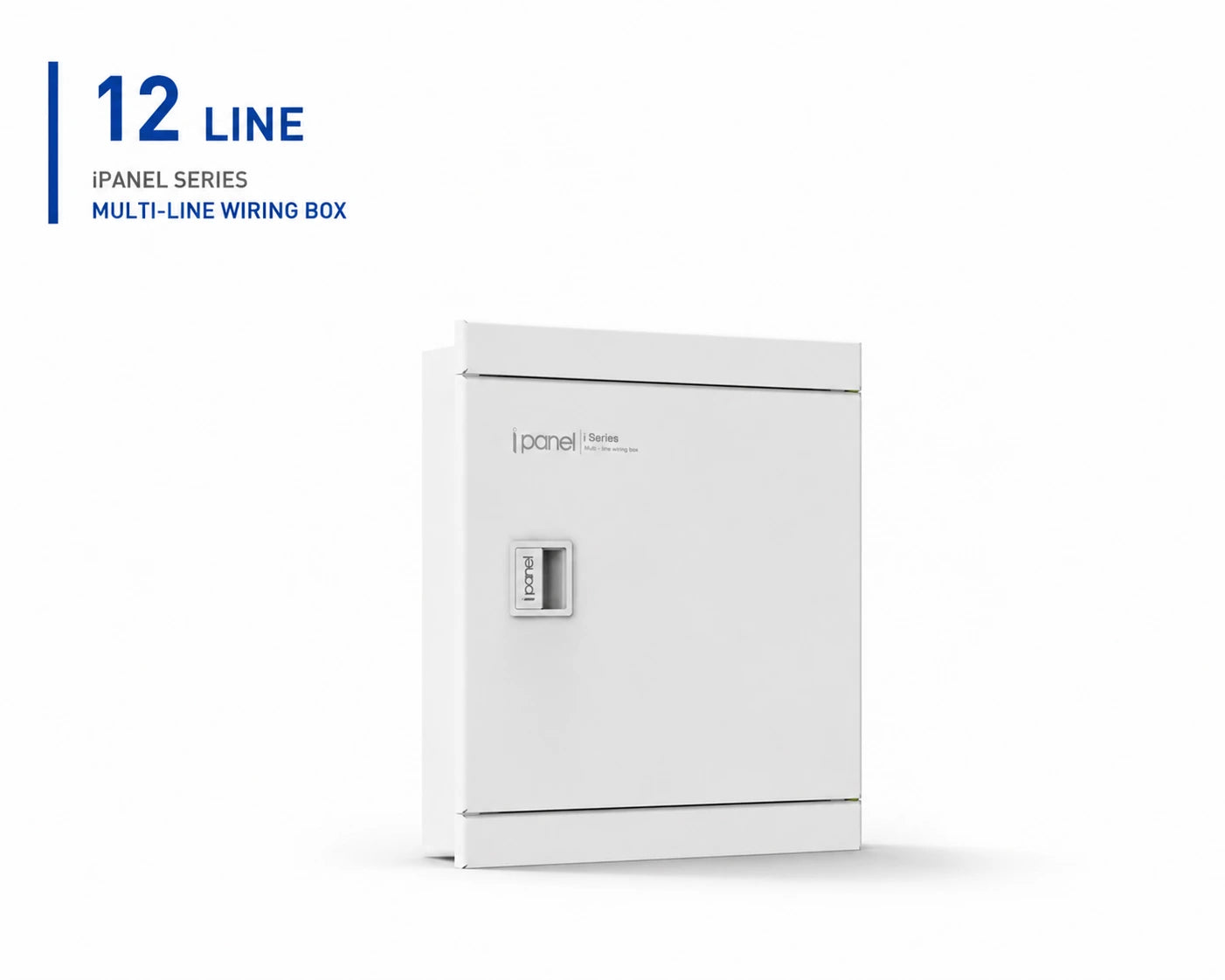

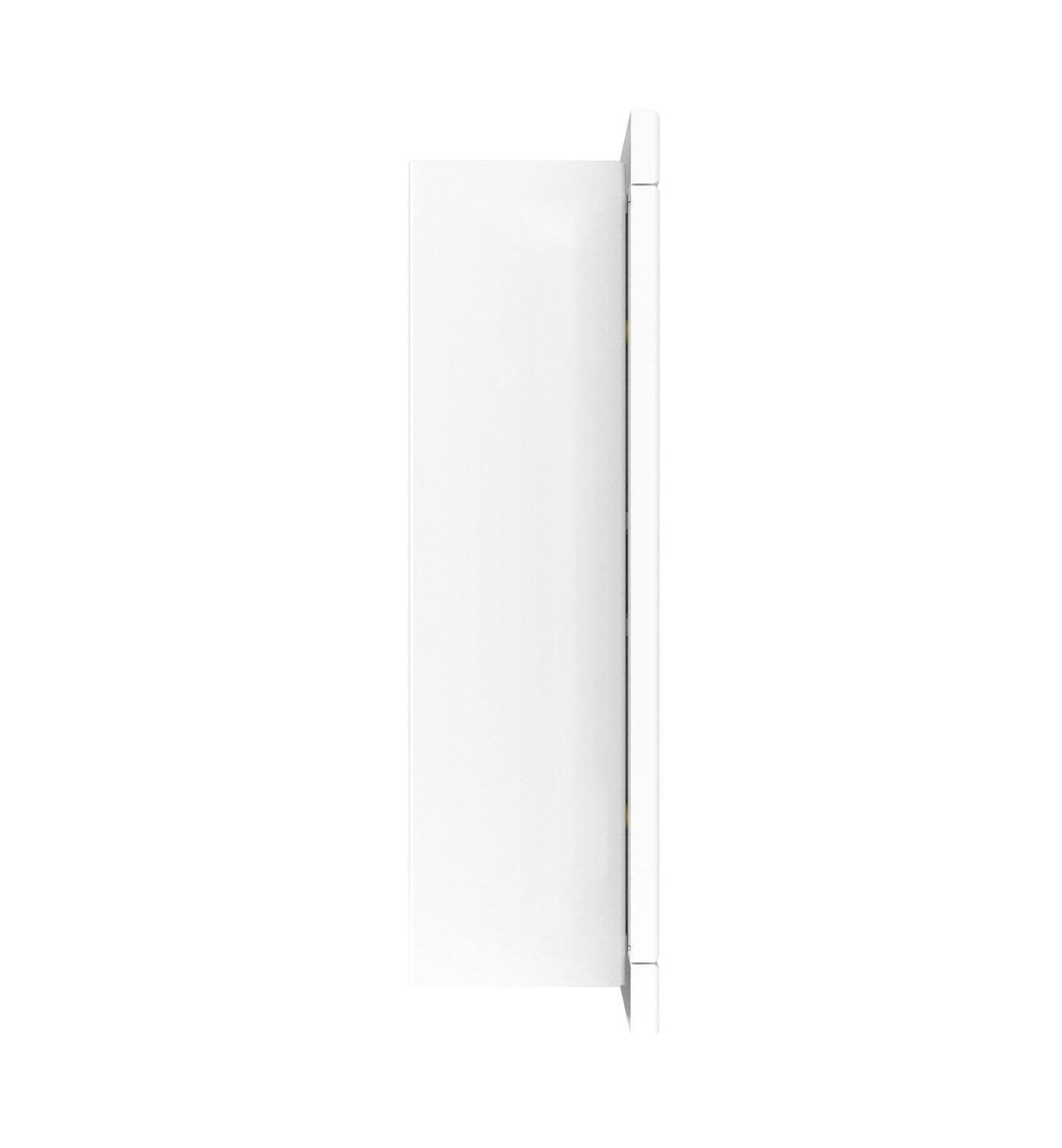

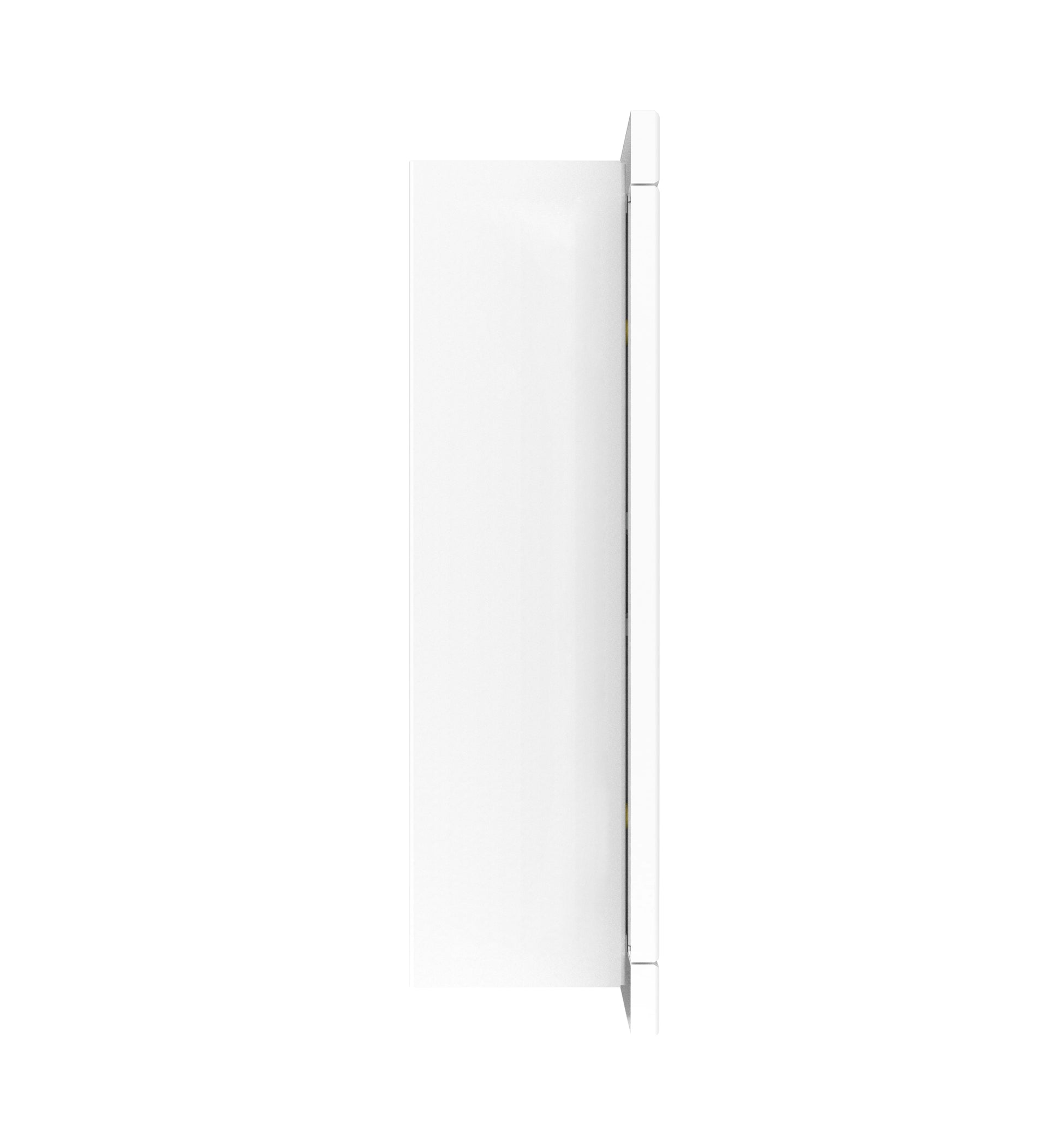

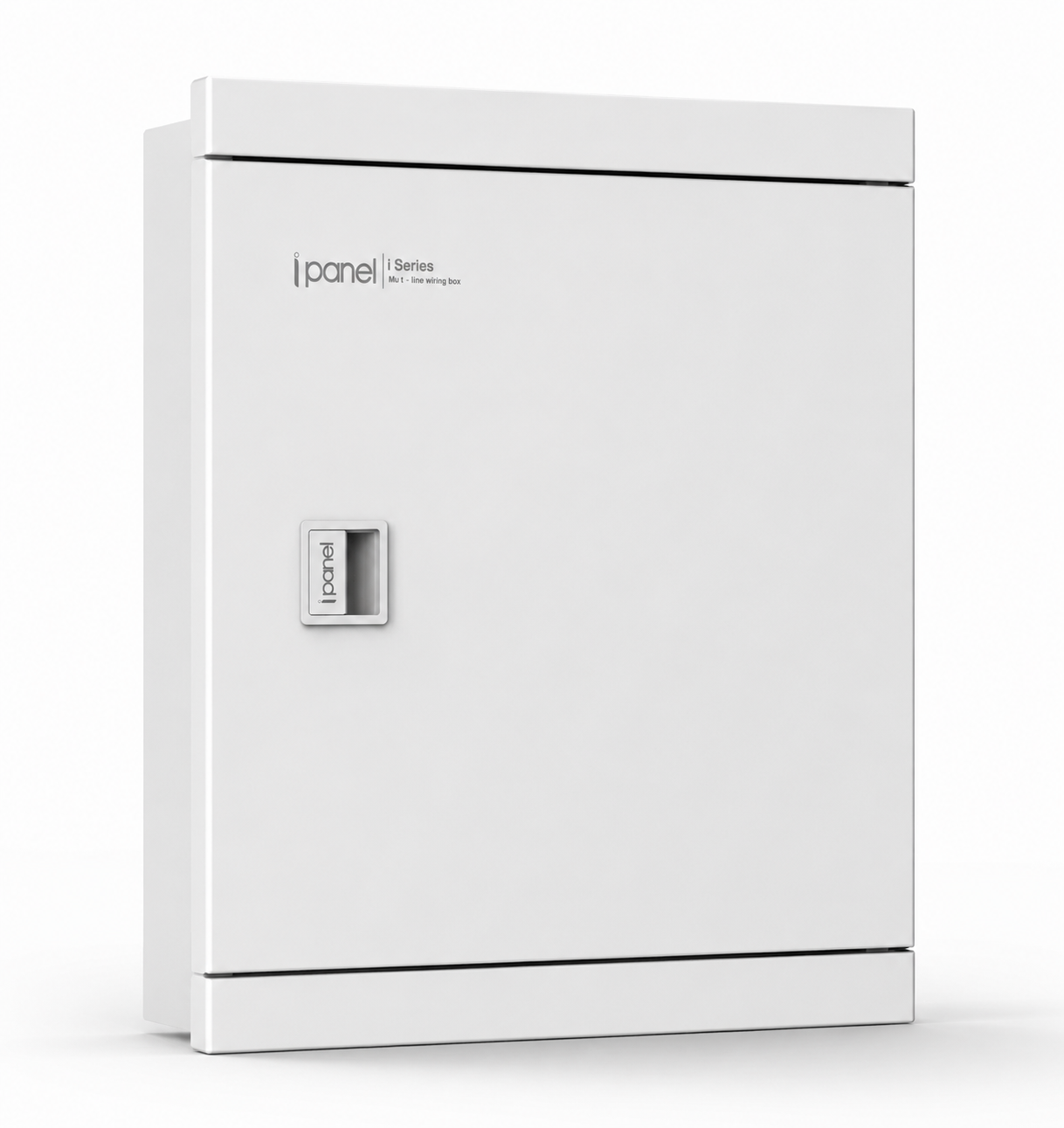

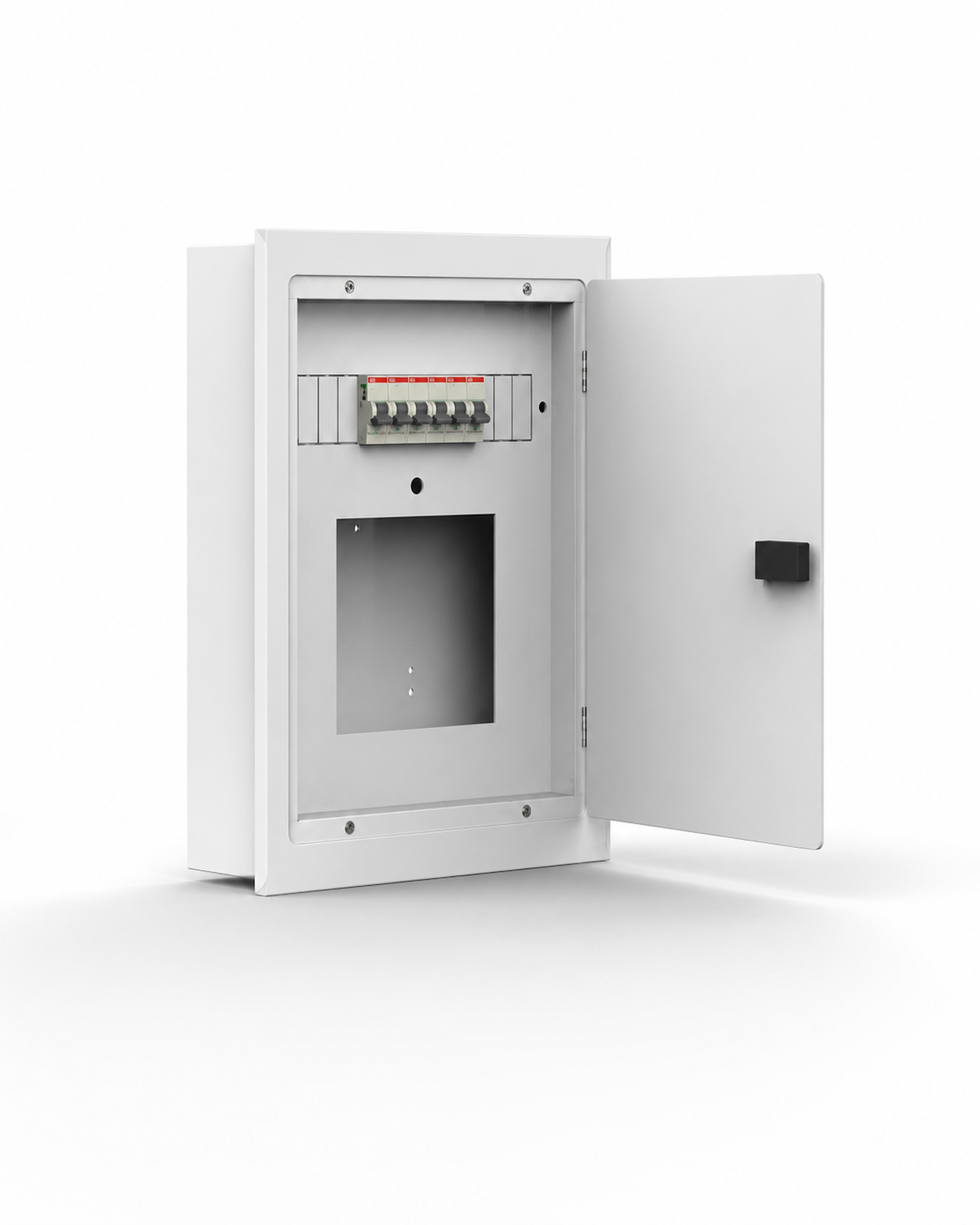

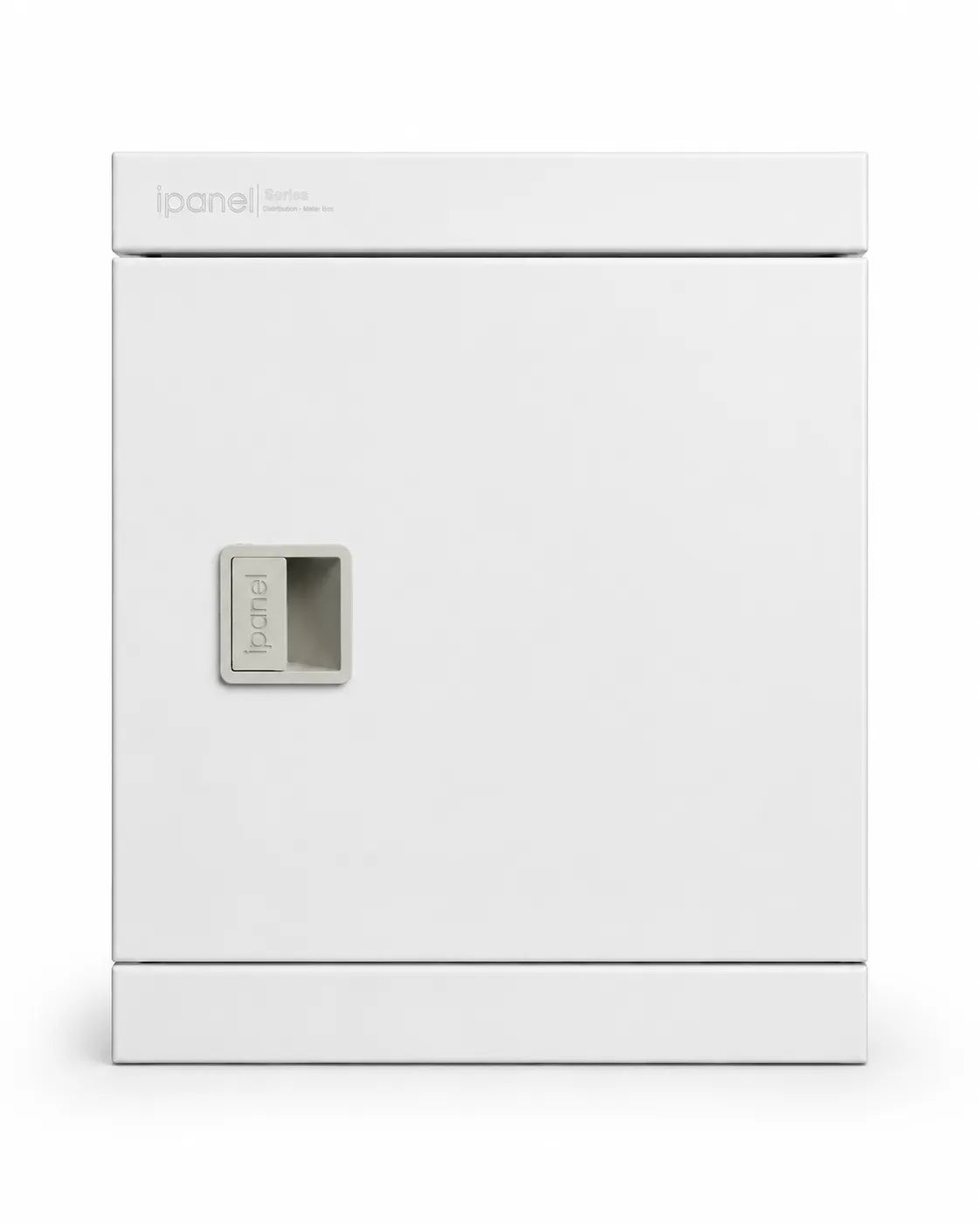

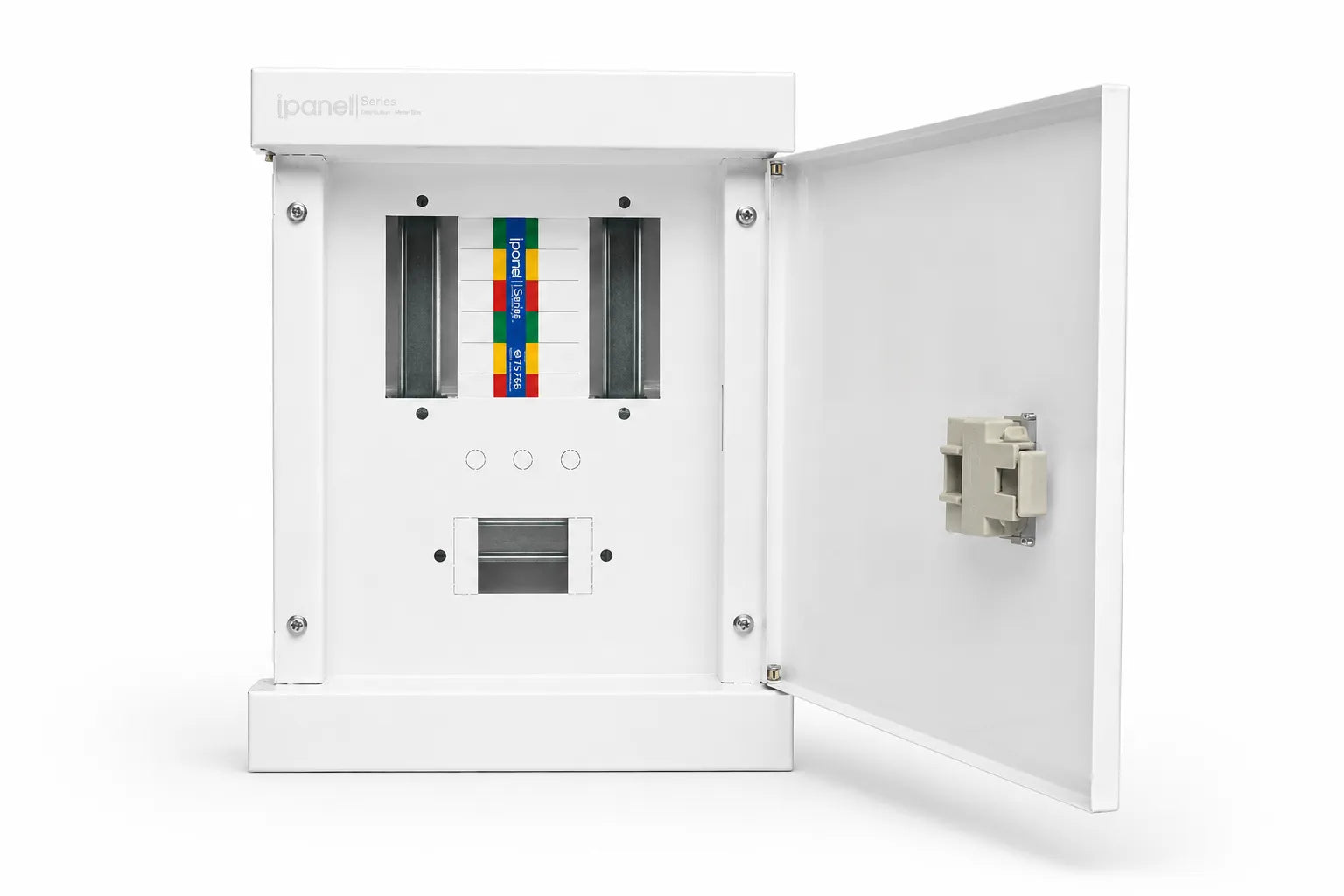

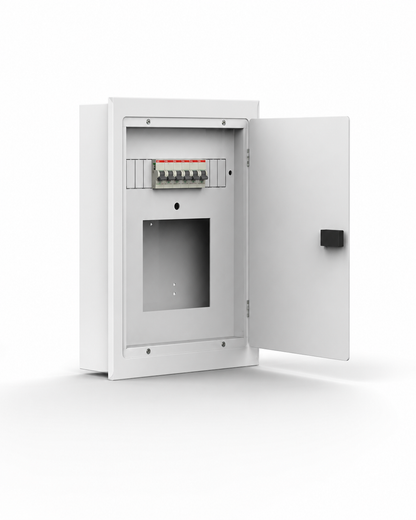

The Star Trans I Panel L12FM is a flush-mount steel distribution enclosure designed for installations requiring up to 12 circuit breaker positions. The enclosure body is manufactured from Steel 37 with a powder-coated finish in RAL 9116, providing reliable corrosion and abrasion resistance. It is suitable for wall-mounted use in residential and light commercial applications, and includes an integrated DIN rail, neutral bar, and earth bar. The door lock and hinges come pre-assembled on the cabinet. Protection class is IP23, and all wall mounting accessories are supplied with the unit.
Technical Specifications
| Specification | Details |
|---|---|
| Model | I Panel - L12FM |
| Number of Lines | 12 |
| Type | Premium Electrical Distribution Enclosure |
| Mounting | Flush Mount (FM) |
| Protection Class | IP40 |
| Din Rail | Included |
| Neutral Bar | Included |
| Earth Bar | Included |
| Finish | Powder Coated |
| Color | RAL 7035 Light Grey |
| Standard | IEC 60439 |
| Material | Steel 37 |
| Installation Method | Flush-mounted (recessed into the wall) |
المواصفات الفنية
| المواصفة | القيمة |
|---|---|
| مادة الصناعة | ستيل 37 |
| طريقة التركيب | دفن داخل الحائط |
