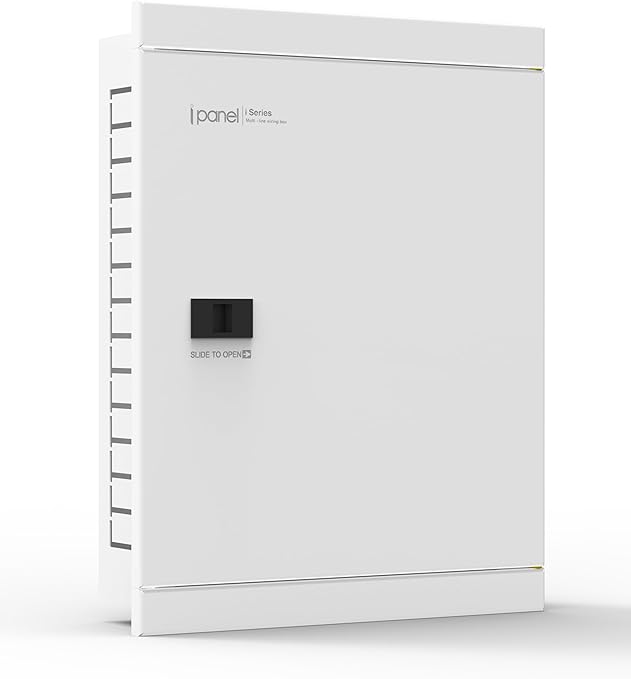

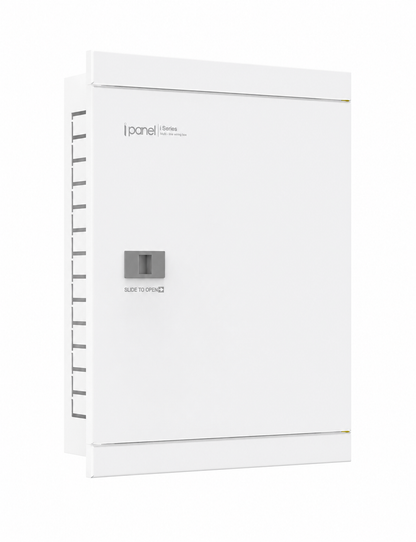

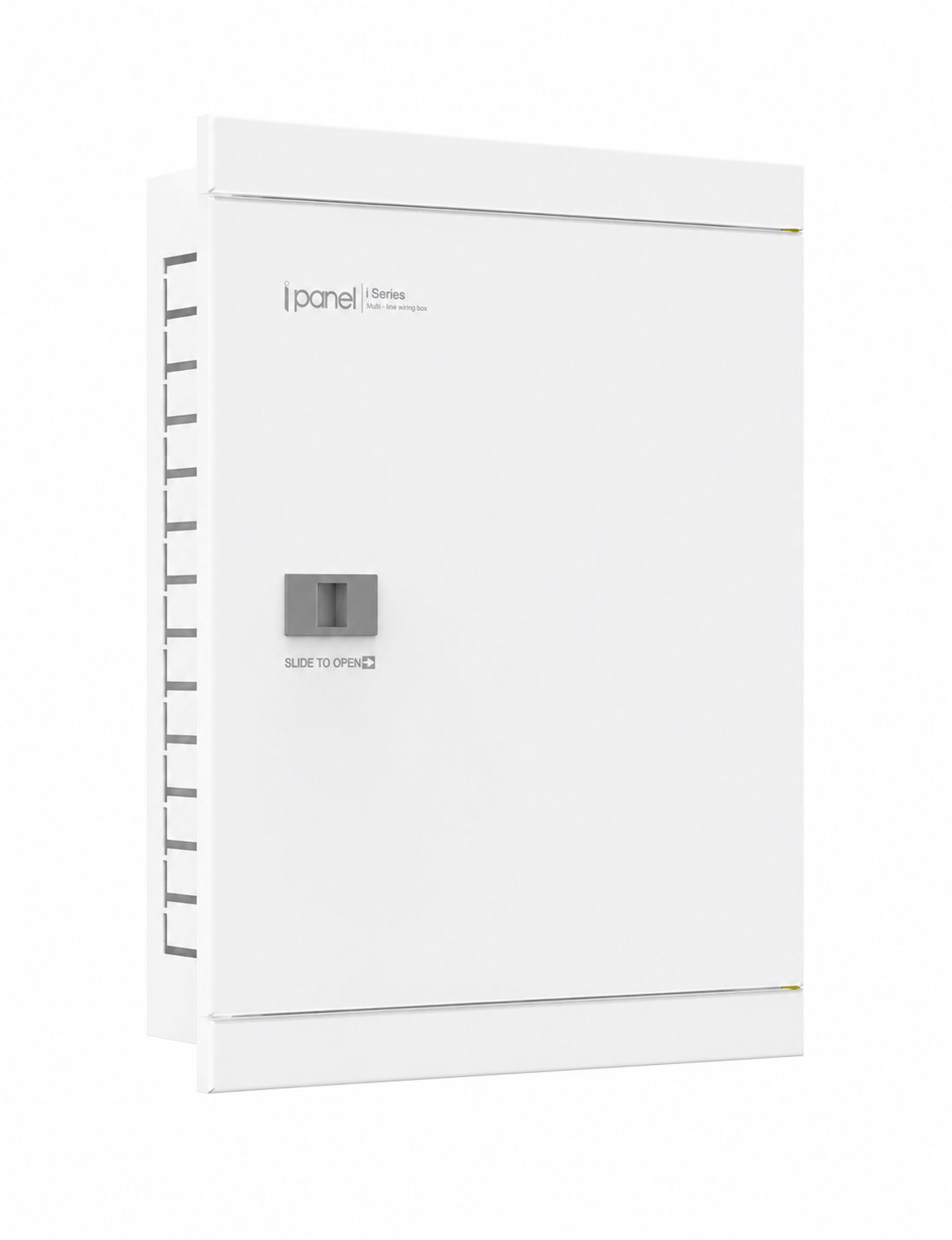

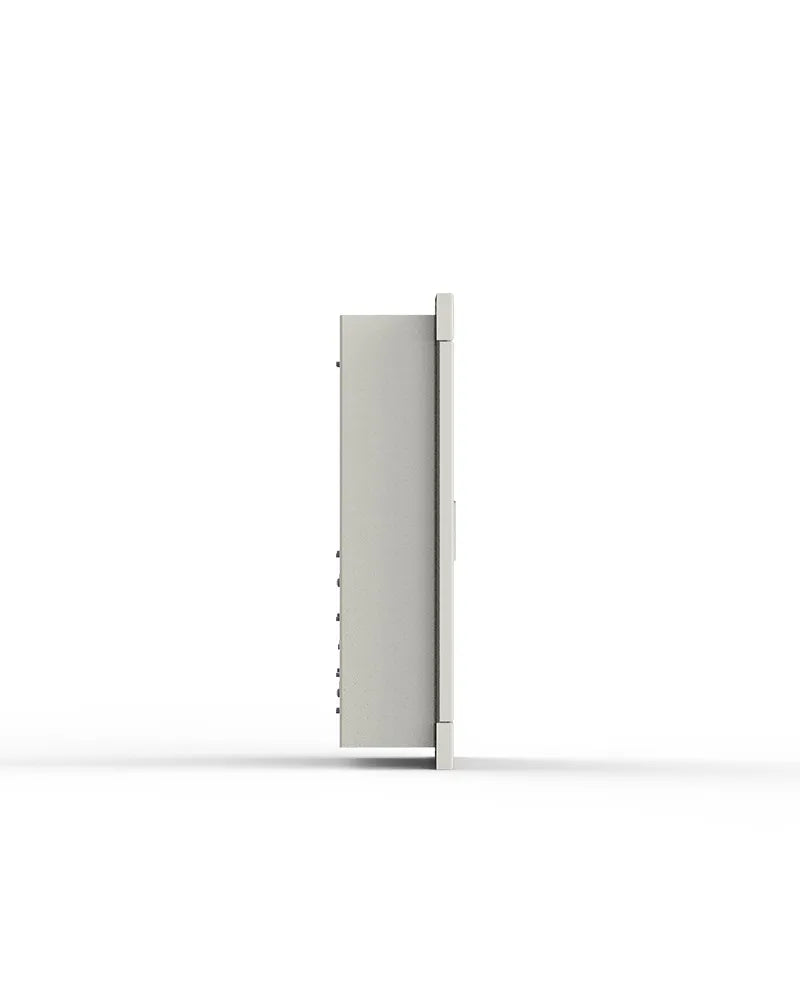

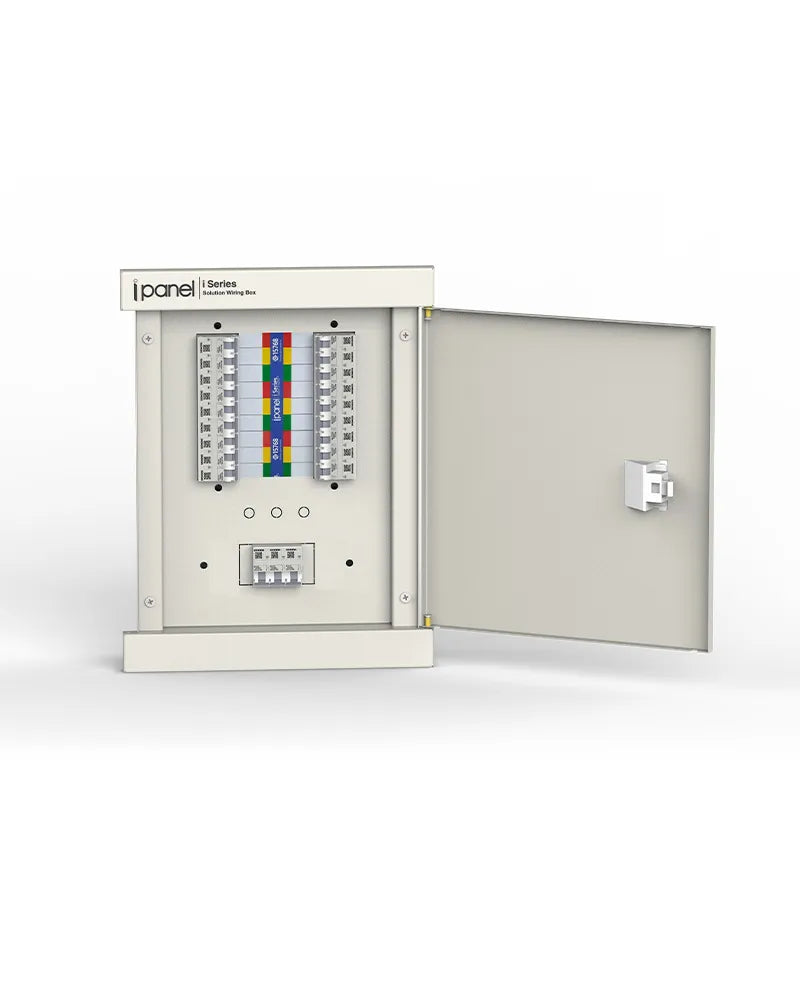

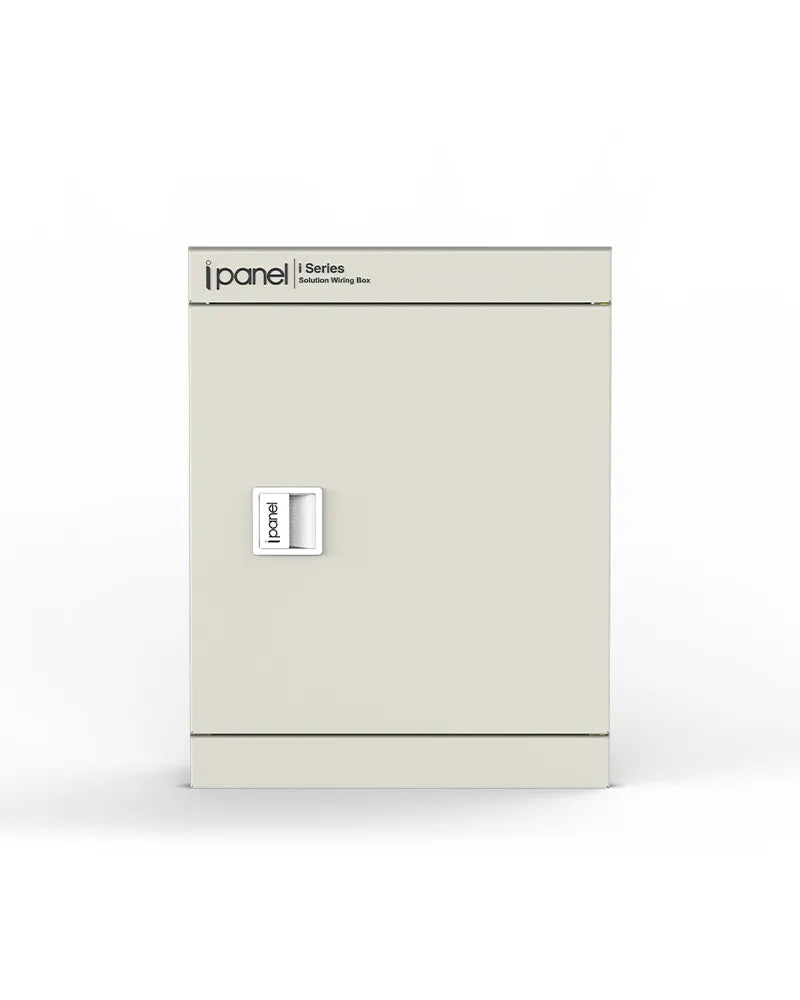

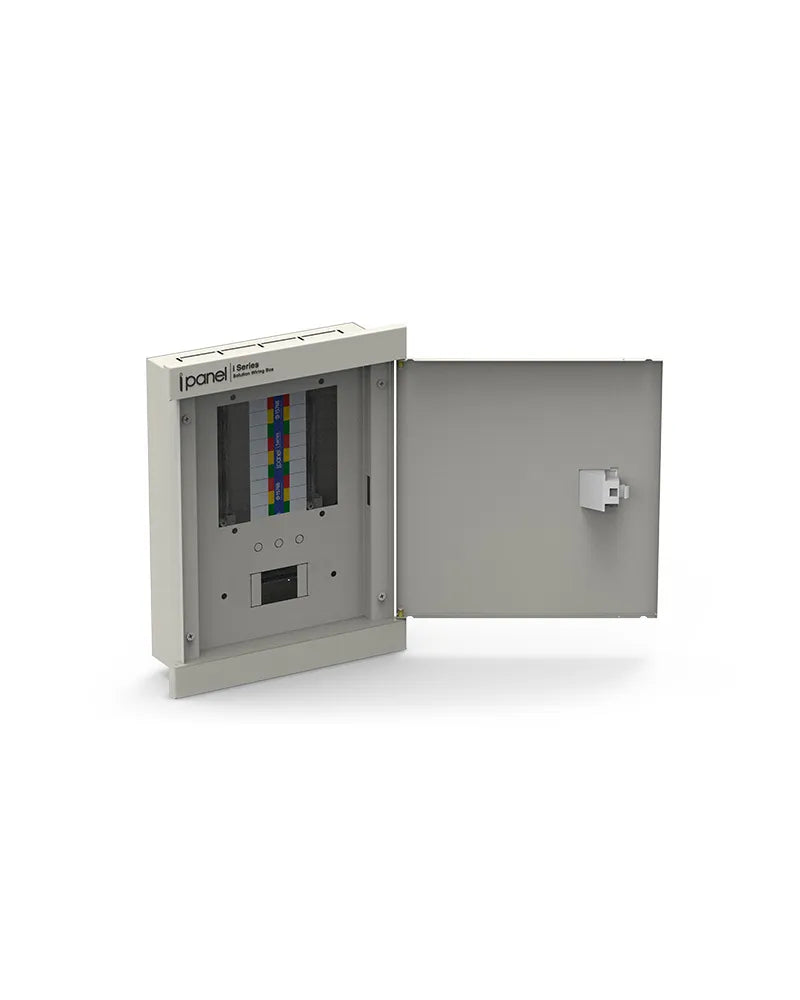

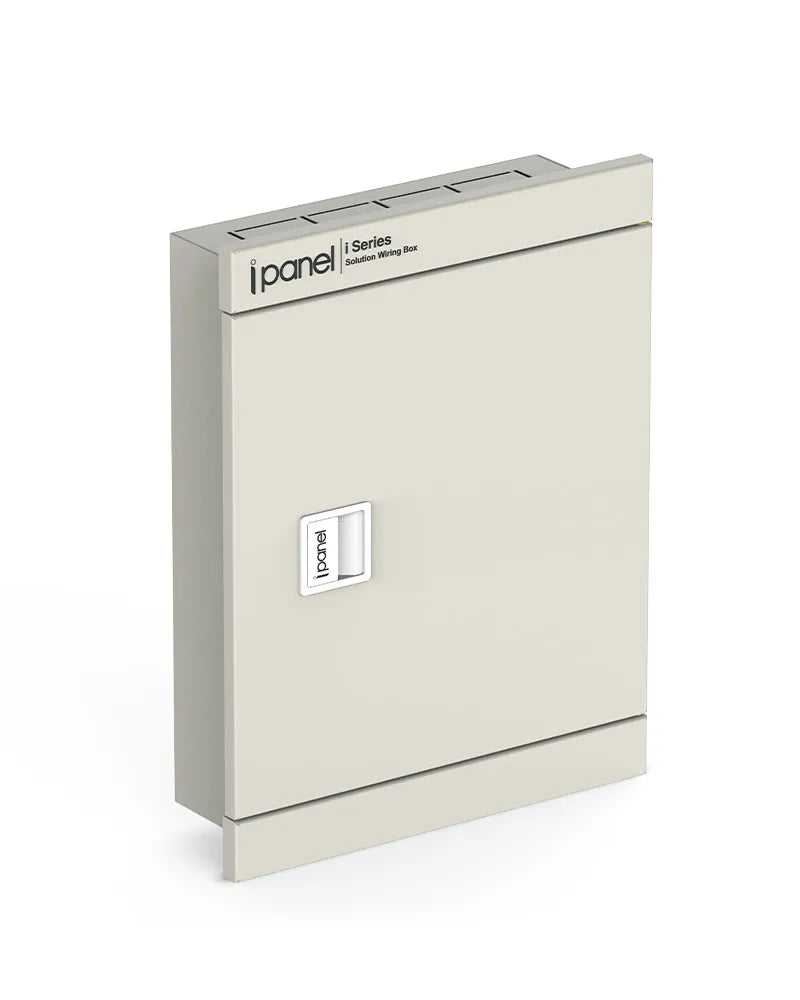

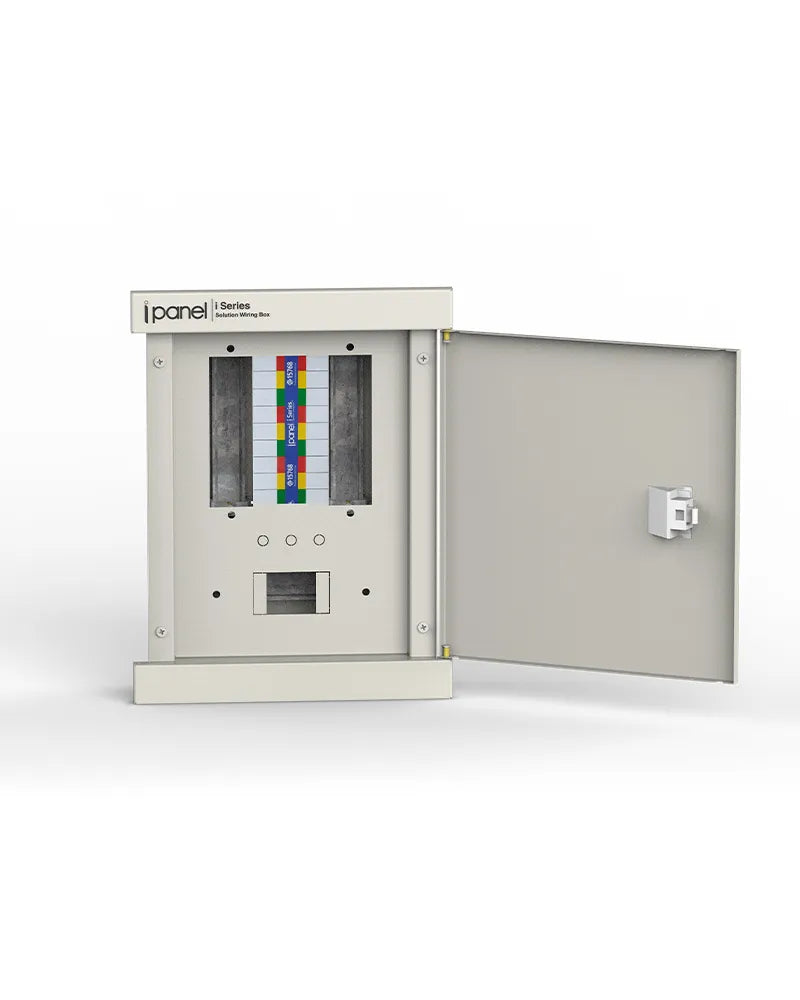

The I Panel L18FM is a flush-mount electrical distribution enclosure built from Steel 37, sized for installations requiring 18 circuit positions. It shares the same width and depth as the L12FM but offers a taller housing to accommodate the additional circuits. The powder-coated RAL 9116 finish ensures resistance to corrosion and surface wear in everyday use. Designed for multi-use control systems, it is suitable for residential and mid-scale commercial wiring projects. Door lock and hinges are factory-assembled, and mounting accessories are included in the package.
| Specification | Value |
| Model | I PANEL-L18FM |
| Number of Lines | 18 |
| Material | Steel 37 |
| Mounting Type | Flush Mount (FM) |
| Protection Class | IP23 |
| Surface Finish | RAL 9116 Powder Coated |
| Weight | 9.5 KG |
| Dimension A (Width) | 340 mm |
| Dimension B (Depth) | 105 mm |
| Dimension C (Height) | 442.5 mm |
| Dimension D (Inner Height) | 402.5 mm |
