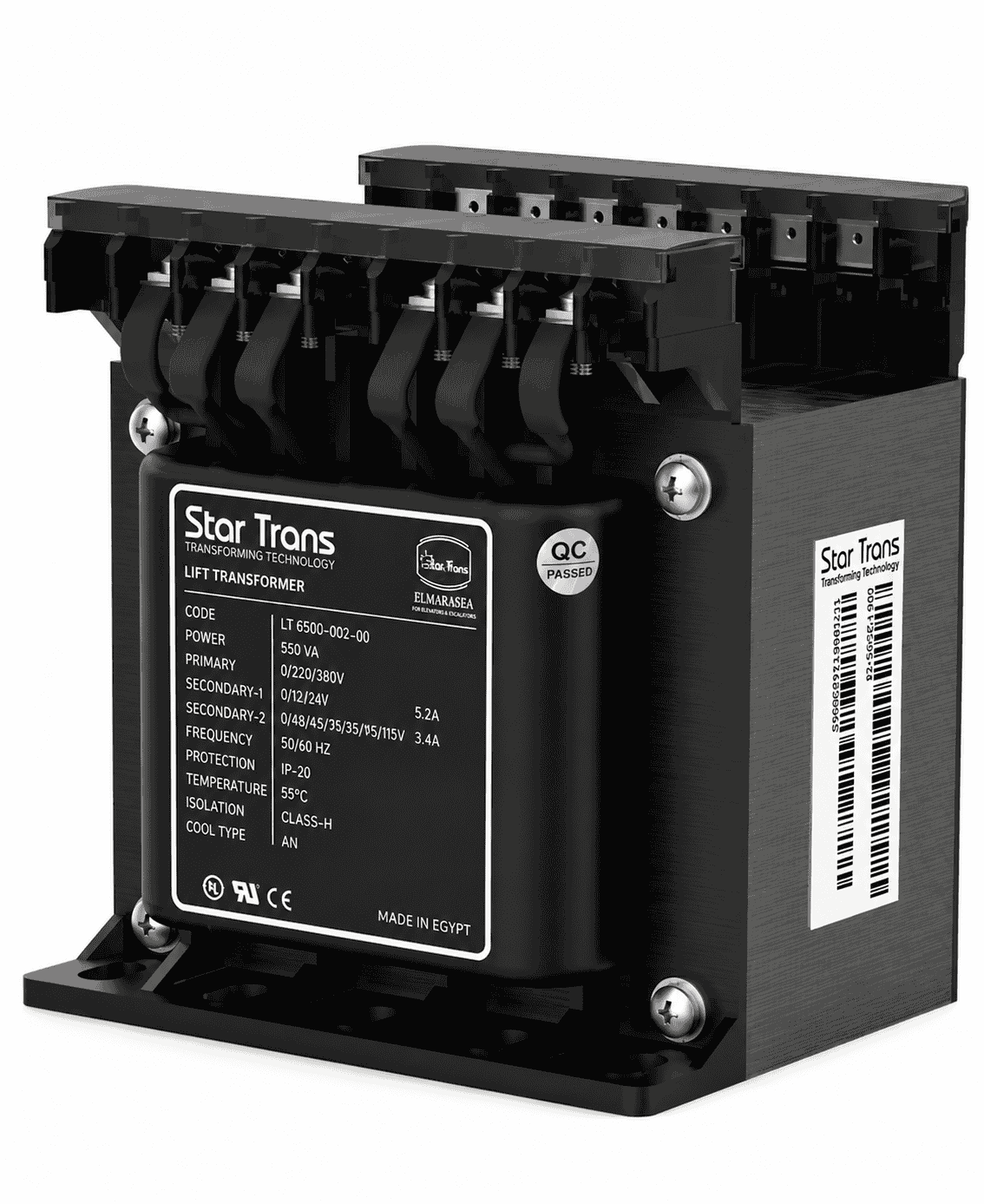

Lift Control Transformer Single Phase— 500 VA, IP20 Protection

Lift Control Transformer Single Phase— 500 VA, IP20 Protection

Call us: 15768
View full details

The Lift Control Transformer 500 VA IP20 is built for closed-enclosure elevator control panels. Accepting 220–380 Vac input, it delivers a full range of secondary voltages (0/12/24 and 0/48/65/75/85/95/110 Vac) to power relay coils, safety circuits, door controllers, and interior lighting within the lift installation. The IP20 enclosure protects against solid-object ingress for installation inside a standard equipment room cabinet.

Outstanding Features

✓
500 VA rated

Covers all standard lift control loads

✓
IP20 protection

Safe for enclosed electrical cabinet installation

✓
Wide input range

220–380 Vac grid compatibility

✓
Multi-tap output

0/12/24 + 0/48/65/75/85/95/110 Vac

✓
High efficiency

98% low-loss operation

✓
Class H insulation

Continuous 24/7 duty rating

✓
Compact integration

Designed for standard lift control panels

✓
Certified compliance

IEC 61558 · CE · UL · TÜV Austria

Technical Specifications

Specification Value
Rated Power 500 VA
Phase Single Phase
Input Voltage 220–380 Vac
Output Voltage 0/12/24 + 0/48/65/75/85/95/110 Vac
Efficiency 98%
Insulation Class Class H
Protection Degree IP20
Type Enclosed
Max Ambient Temperature 50°C
Frequency 50/60 Hz
Test Voltage 3.5 kV
Terminals Screw Type
Fixing Screws M6
Fixing Method Base Plate
Weight 5.33 kg
Dimensions 120 × 116 × 127 × 100 × 94 × 7 mm
