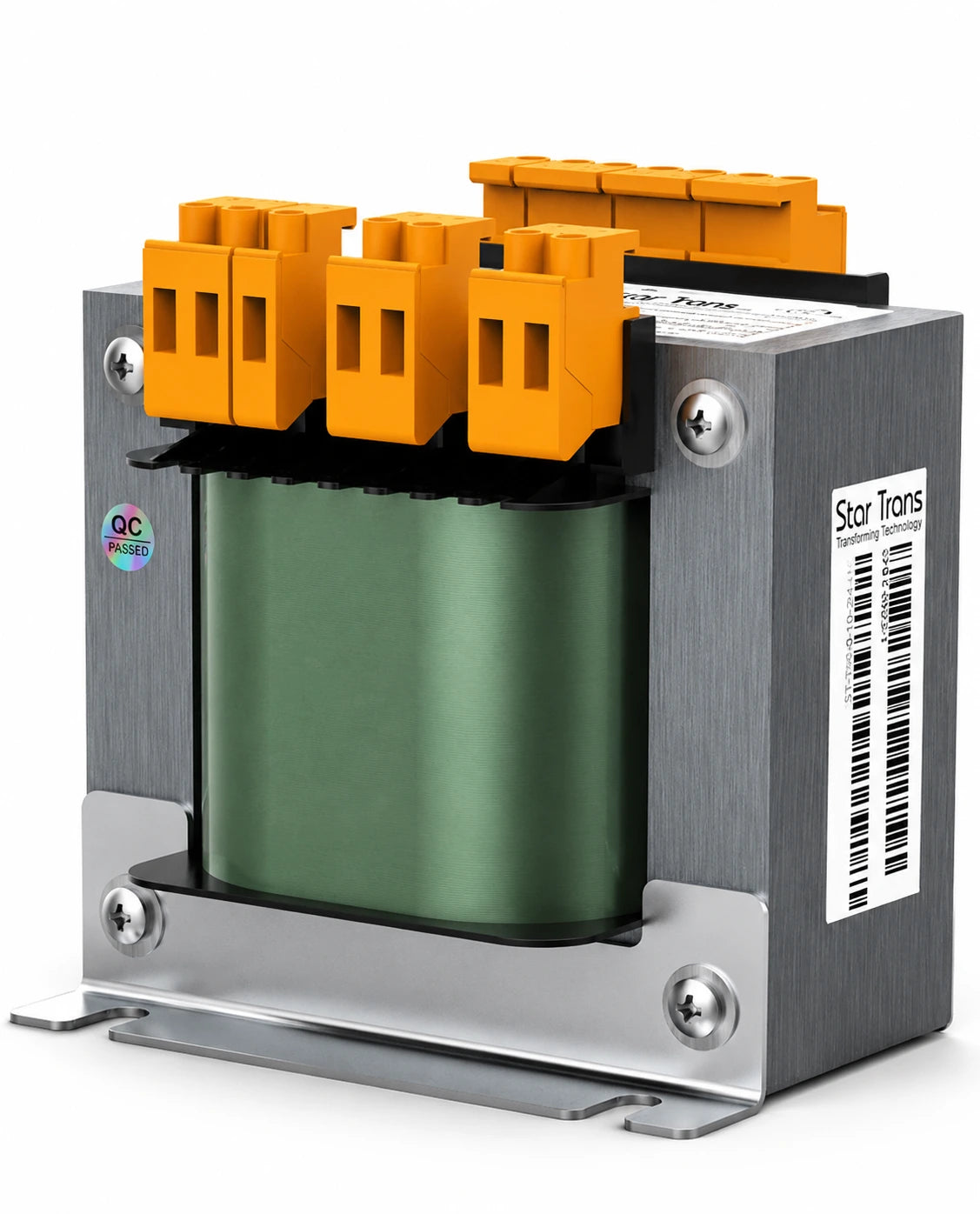

The Single Phase Control Transformer 100 VA marks the entry point of the medium power range in the series, with a high operating efficiency of 86.3%. It is used in panels containing several relays and contactors operating together, such as automatic gate control panels, small elevators, and industrial lighting control systems, with dimensions of 96×83×96 mm and a weight of 1.68 kg.
|
Rated Power |
0.1 kVA (100 VA) |
|
Design |
Economic |
|
Frequency |
50/60 Hz |
|
Input Voltage |
0 - 230 - 400 V (Single Phase) |
|
Output Voltage |
0 - 12 - 24 - 36 - 48 - 110 V |
|
Winding Material |
Aluminium |
|
IP Rating |
IP00 (Open type - for mounting inside a protected enclosure) |
|
No-load losses |
3 W |
|
Load losses |
12.8 W |
|
Efficiency |
86.3% |
|
Voltage Regulation (%VR) |
12.8% |
|
Dimensions W×D×H |
96 × 83 × 96 mm |
|
Weight |
1.68 kg |
