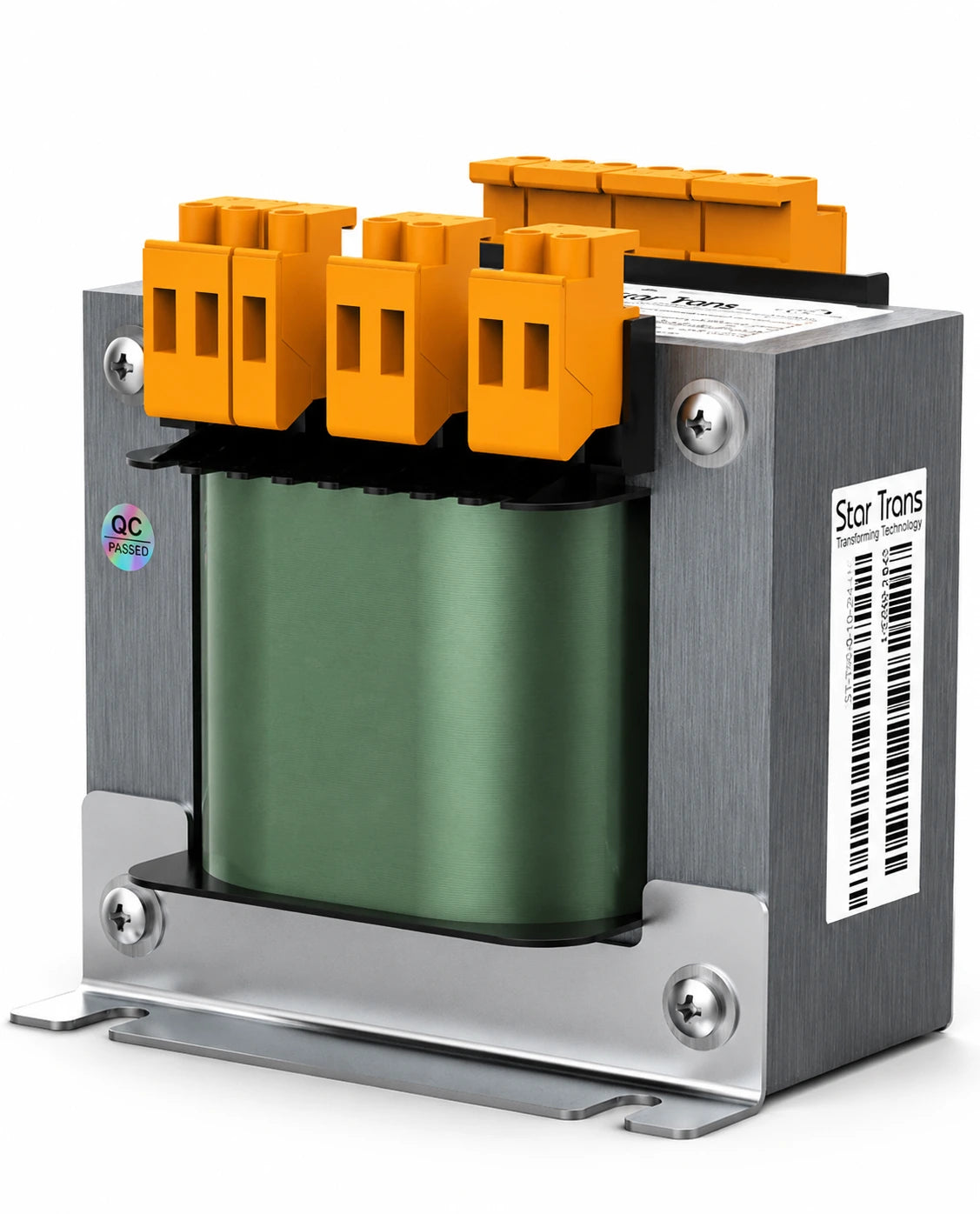

The Single Phase Control Transformer 50 VA suitable for one contactor coil together with a larger number of indicator or status lamps on the same panel. It is commonly used in control panels for domestic and small industrial water pumps, keeping the same compact footprint of 76.2×83×80 mm for easy installation.
|
Rated Power |
0.05 kVA (50 VA) |
|
Design |
Economic |
|
Frequency |
50/60 Hz |
|
Input Voltage |
0 - 230 - 400 V (Single Phase) |
|
Output Voltage |
0 - 12 - 24 - 36 - 48 - 110 V |
|
Winding Material |
Aluminium |
|
IP Rating |
IP00 (Open type - for mounting inside a protected enclosure) |
|
No-load losses |
1.73 W |
|
Load losses |
9.73 W |
|
Efficiency |
81.4% |
|
Voltage Regulation (%VR) |
19.5% |
|
Dimensions W×D×H |
76.2 × 83 × 80 mm |
|
Weight |
0.97 kg |
