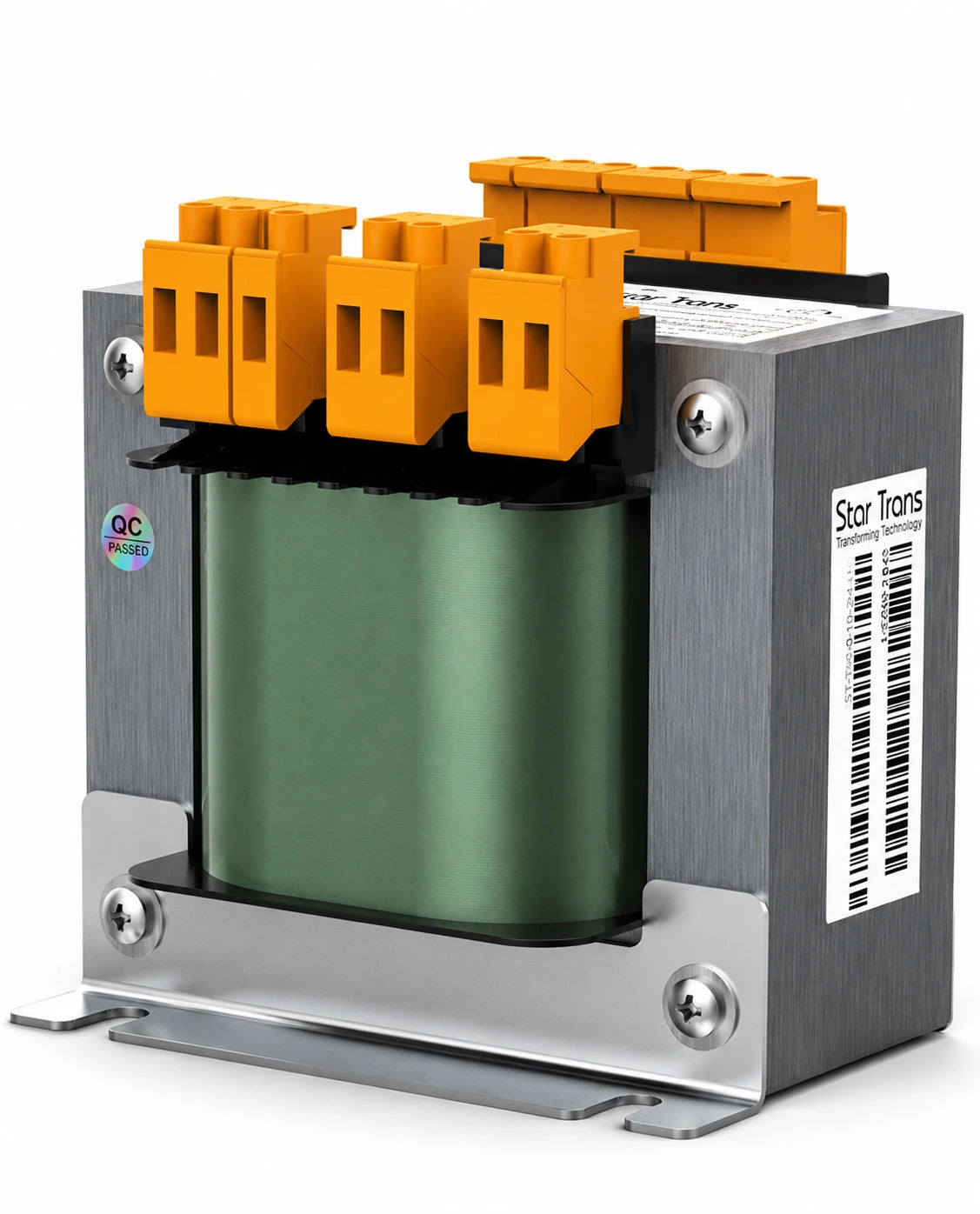

The Single Phase Control Transformer 63 VA covers slightly larger control needs, capable of powering two small contactors simultaneously, or a simple I/O module for a Programmable Logic Controller (PLC) together with an associated signal circuit. It combines sufficient power with a compact size (76.2×83×80 mm), making it an economical choice for small automation panels.
|
Rated Power |
0.063 kVA (63 VA) |
|
Frequency |
50/60 Hz |
|
Input Voltage |
0 - 230 - 400 V (Single Phase) |
|
Output Voltage |
0 - 12 - 24 - 36 - 48 - 110 V |
|
Winding Material |
Aluminium |
|
IP Rating |
IP00 (Open type - for mounting inside a protected enclosure) |
|
No-load losses |
1.8 W |
|
Load losses |
12 W |
|
Efficiency |
82.1% |
|
Voltage Regulation (%VR) |
19% |
|
Dimensions W×D×H |
76.2 × 83 × 80 mm |
|
Weight |
1.06 kg |
