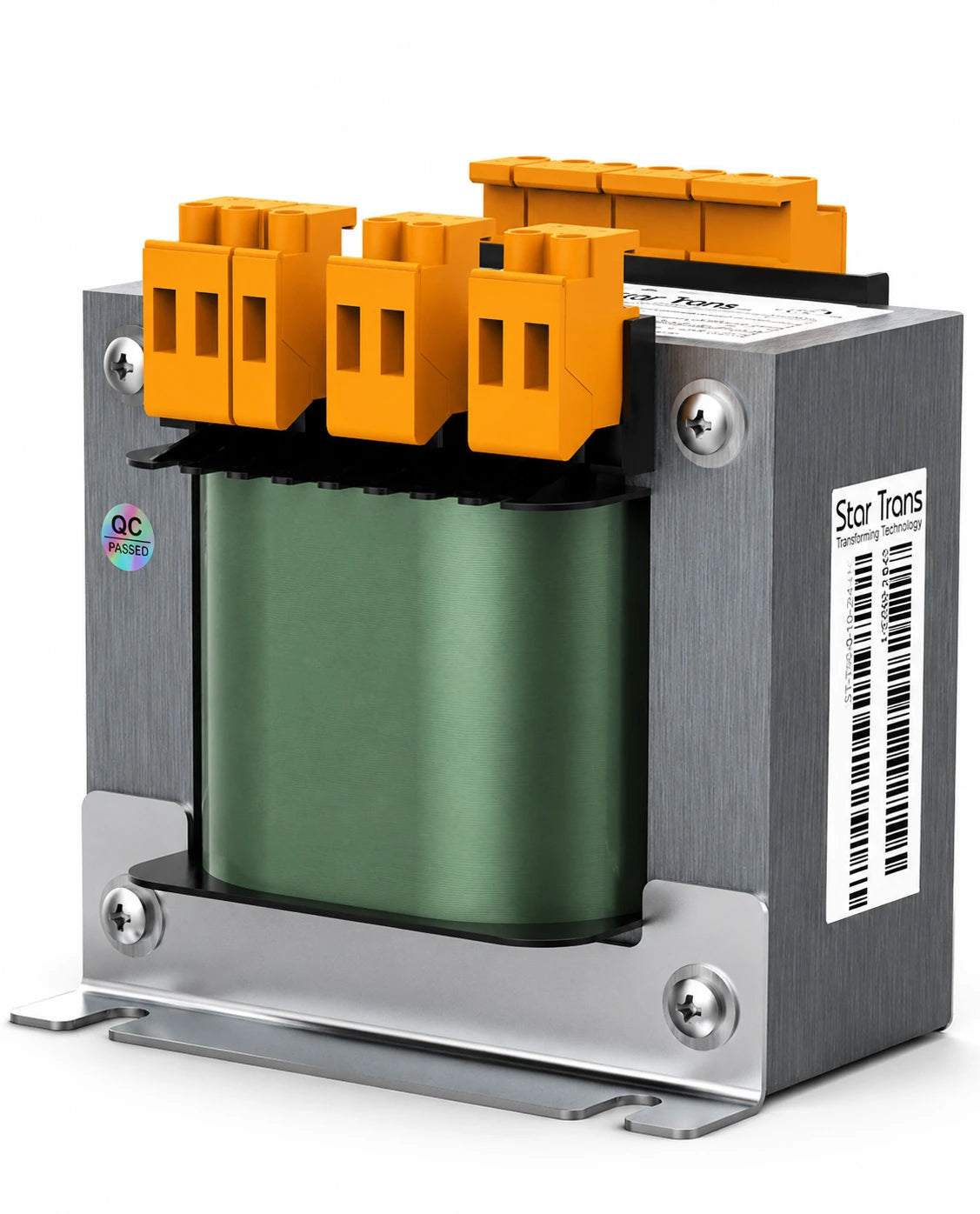

Single Phase Industrial Control Transformer 25 VA designed for low-power control circuits. As one of the smallest control transformers available in Stra Trans, it is ideal for supplying pilot lamps, sensors, relays, alarm bells, and other auxiliary control devices inside compact electrical panels. Its lightweight construction (0.71 kg) and space-saving dimensions (66 × 76 × 80 mm) make it easy to install in confined enclosures, while providing safe electrical isolation between the mains supply and the low-voltage control circuit for reliable and secure operation.
|
Code |
CT0-0025-000-002-A |
|
Rated Power |
0.025 kVA (25 VA) |
|
Design |
Economic |
|
Frequency |
50/60 Hz |
|
Input Voltage |
0 - 230 - 400 V (Single Phase) |
|
Output Voltage |
0 - 12 - 24 - 36 - 48 - 110 V |
|
Winding Material |
Aluminium |
|
IP Rating |
IP00 (Open type - for mounting inside a protected enclosure) |
|
No-load losses |
1.23 W |
|
Load losses |
4.14 W |
|
Efficiency |
82.3% |
|
Voltage Regulation (%VR) |
16.6% |
|

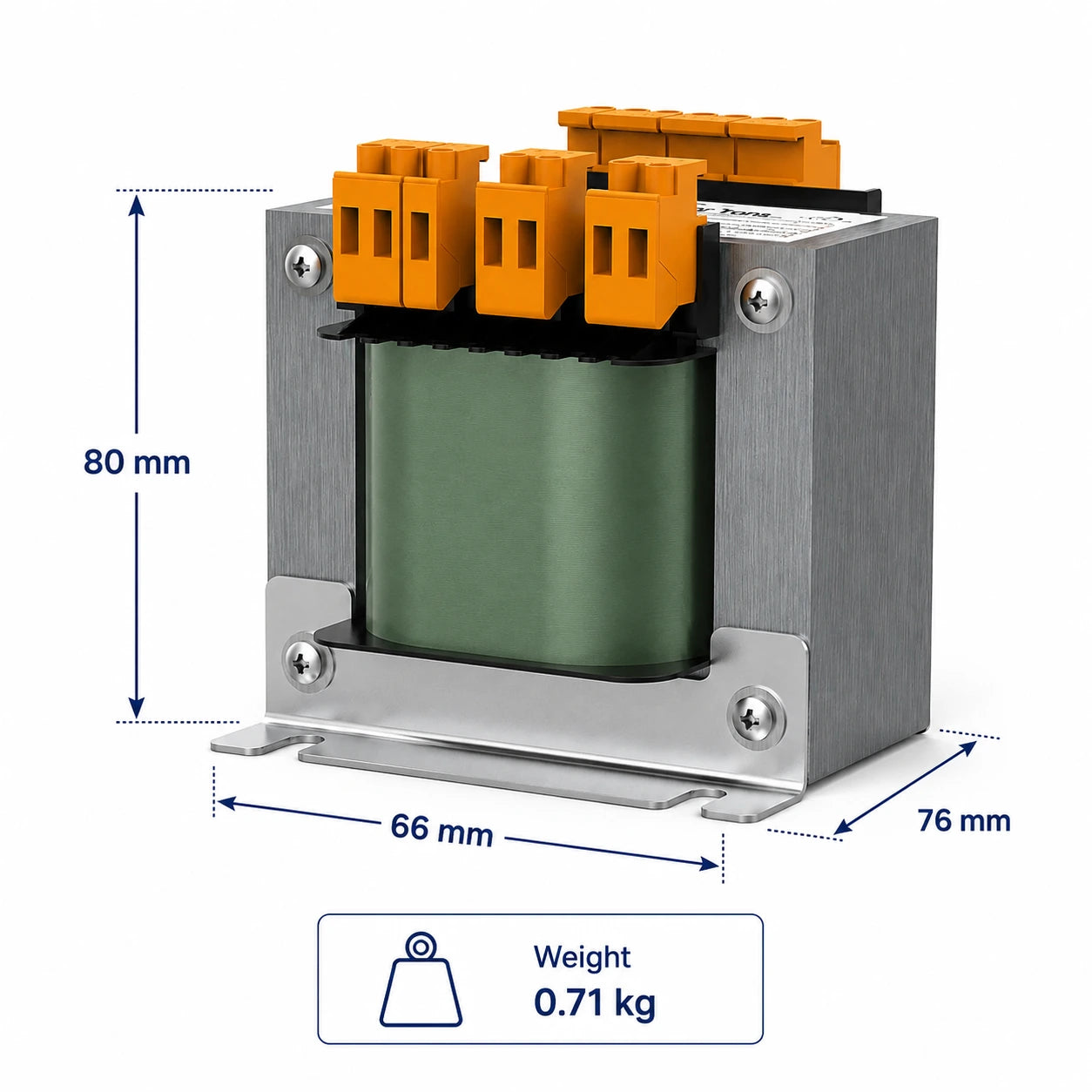

Dimensions W×D×H |
66 × 76 × 80 mm |
|
Weight |
0.71 kg |
