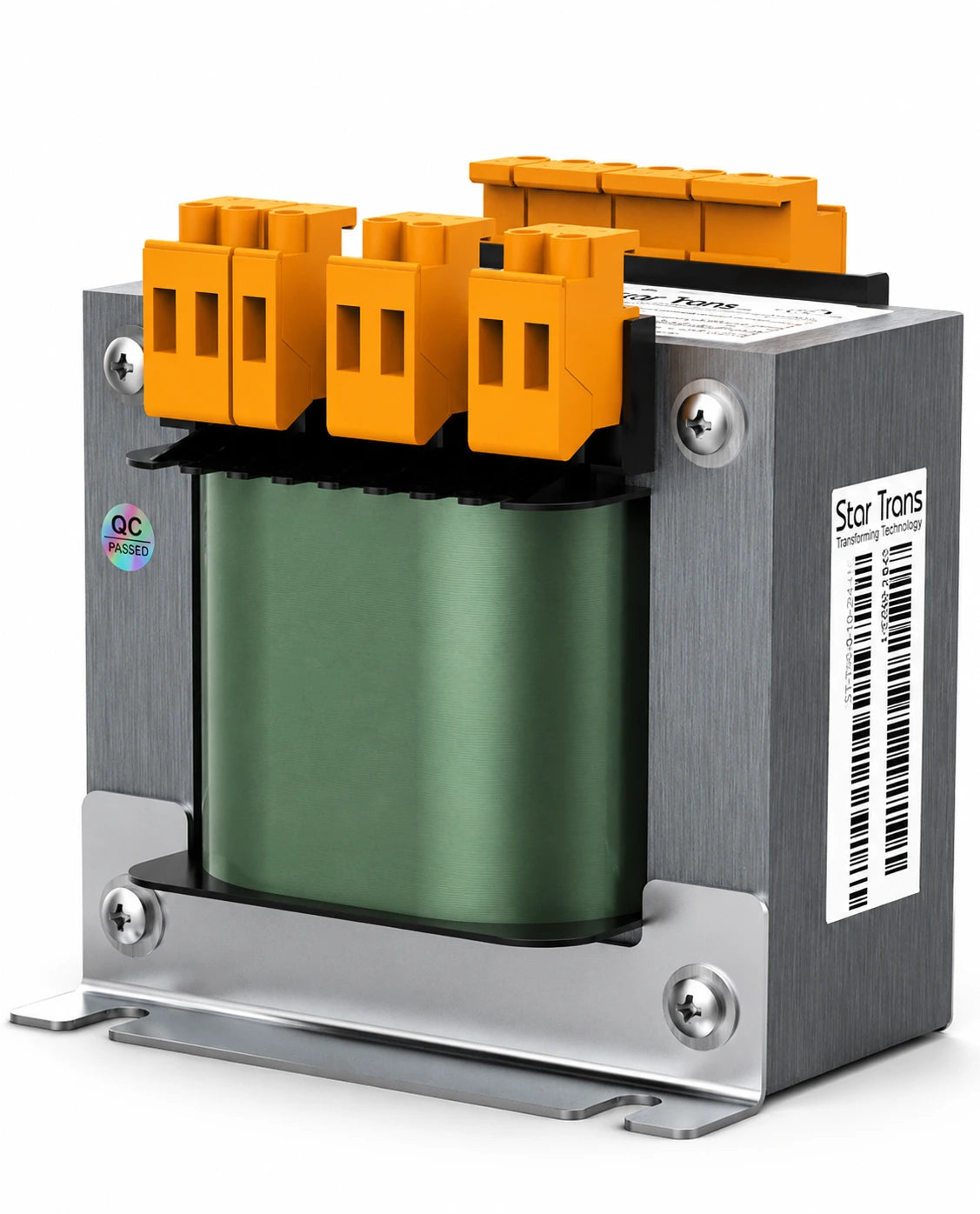

The Single Phase Industrial Control Transformer 40 VA designed to supply simple control circuits with a single small contactor coil or an auxiliary relay, along with associated indicator lamps. It is widely used in start/stop pushbutton stations for small machines, offering safe isolation and reliable operation despite its compact size (76.2×76×80 mm) and light weight (0.91 kg).
|
Rated Power |
0.04 kVA (40 VA) |
|
Design |
Economic |
|
Frequency |
50/60 Hz |
|
Input Voltage |
0 - 230 - 400 V (Single Phase) |
|
Output Voltage |
0 - 12 - 24 - 36 - 48 - 110 V |
|
Winding Material |
Aluminium |
|
IP Rating |
IP00 (Open type - for mounting inside a protected enclosure) |
|
No-load losses |
1.6 W |
|
Load losses |
6.4 W |
|
Efficiency |
83.5% |
|
Voltage Regulation (%VR) |
15.9% |
|
Dimensions W×D×H |
76.2 × 76 × 80 mm |
|
Weight |
0.91 kg |
