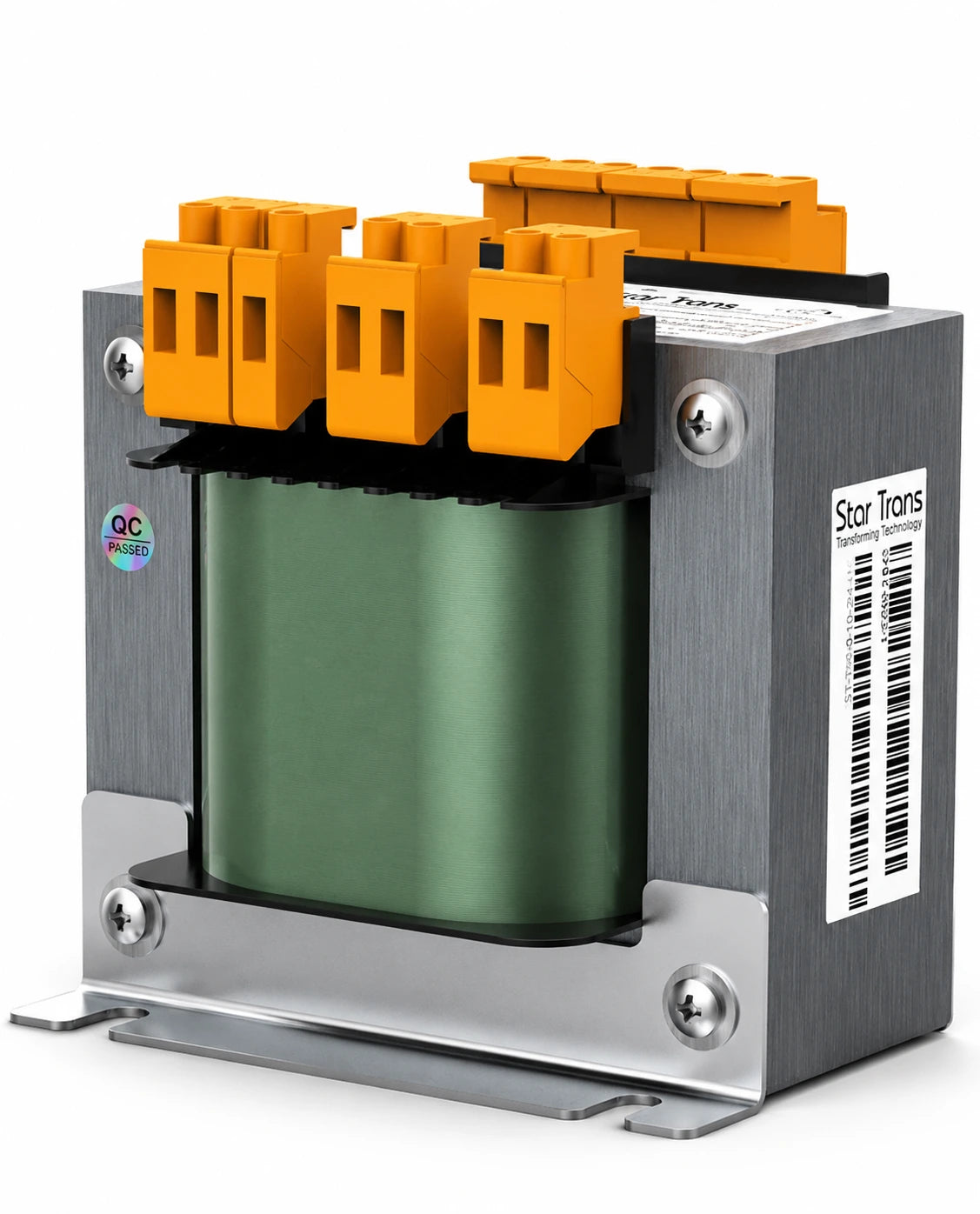

The CT0-0800, rated at 800 VA, is intended for large industrial production lines with a high number of solenoids and large contactors operating together. It achieves a high efficiency of 91.6%, and with dimensions of 150×141×153 mm and a weight of 7.76 kg, it provides high capacity for the momentary load surges caused by several control elements switching at once.
|
Rated Power |
0.8 kVA (800 VA) |
|
Frequency |
50/60 Hz |
|
Input Voltage |
0 - 230 - 400 V (Single Phase) |
|
Output Voltage |
0 - 12 - 24 - 36 - 48 - 110 V |
|
Winding Material |
Aluminium |
|
IP Rating |
IP00 (Open type - for mounting inside a protected enclosure) |
|
No-load losses |
12.7 W |
|
Load losses |
60.6 W |
|
Efficiency |
91.6% |
|
Voltage Regulation (%VR) |
7.6% |
|
Dimensions W×D×H |
150 × 141 × 153 mm |
|
Weight |
7.76 kg |
