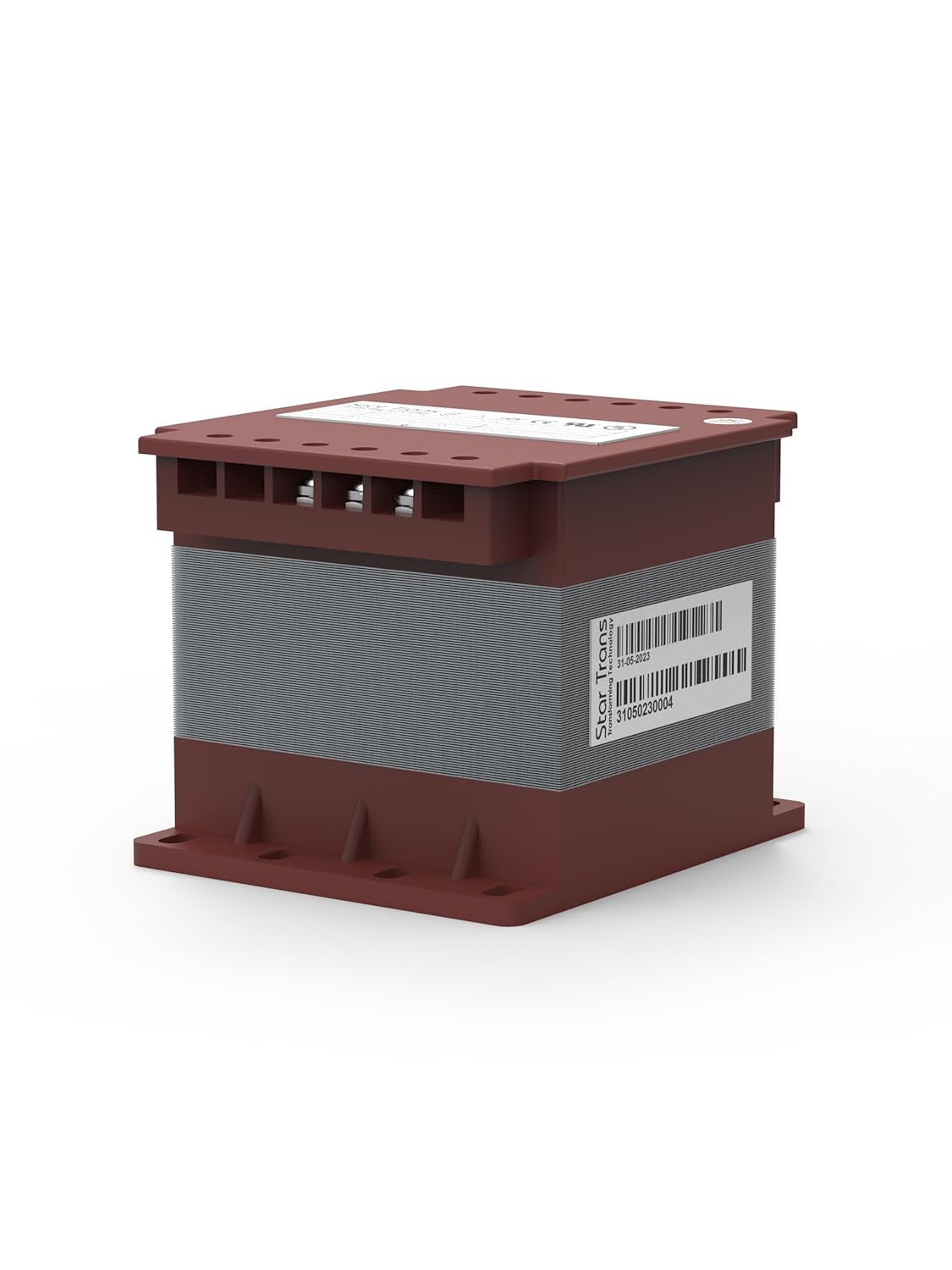

The Single Phase Swimming Pool Control Transformer is a 350 VA safety isolation transformer purpose-built for outdoor swimming pool installations. It provides full protection with an IP67 fully sealed weatherproof enclosure, making it suitable for poolside, pump rooms, and wet outdoor environments. It steps down 230 Vac to a safe 12 Vac output for lighting, pumps, and pool accessories while complying with IEC 61558 safety standards.
Outstanding Features
350 VA capacity
Ideal for pool lighting, pump control, and accessories
IP67 weatherproof enclosure
Fully sealed against dust and water immersion
Safe 12 Vac output
IEC 61558 compliant galvanic isolation for safety
230 Vac to 12 Vac step-down
Reliable voltage conversion
Compact design
Optimized for outdoor installations
High dielectric strength
3.5 kV test voltage for maximum safety margin
Base plate mounting
M6 screw fixing for secure installation
Certified compliance
CE, UL (cULus), TÜV Austria — IEC 61558 standard
Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 350 VA |
| Input Voltage | 0 – 230 Vac |
| Output Voltage | 0 – 12 Vac |
| Frequency Range | 50–60 Hz |
| Efficiency | 98% |
| Enclosure Type | Fully Enclosed |
| Protection Index | IP67 |
| Insulation Class | Class H |
| Max Ambient Temperature | 50°C |
| Test Voltage | 3.5 kV |
| Fixing Method | Base Plate |
| Fixing Screws | M6 |
| Terminal Type | Screw Type Terminal |
| Weight | 6.5 kg |
| Dimensions | 234.5 × 139 × 126.25 × 217 × 80 × 8 mm |
| Standards | IEC 61558 |
Product Technical Data Sheet
View or download PDF
Request a custom TPL stabilizer for your project
We provide custom 3-phase TPL voltage stabilizers tailored to suit the needs of factories and industrial facilities of different sizes. If you need a capacity not listed in the displayed products or require special operating specifications, our engineering team can design the right solution for your application.
