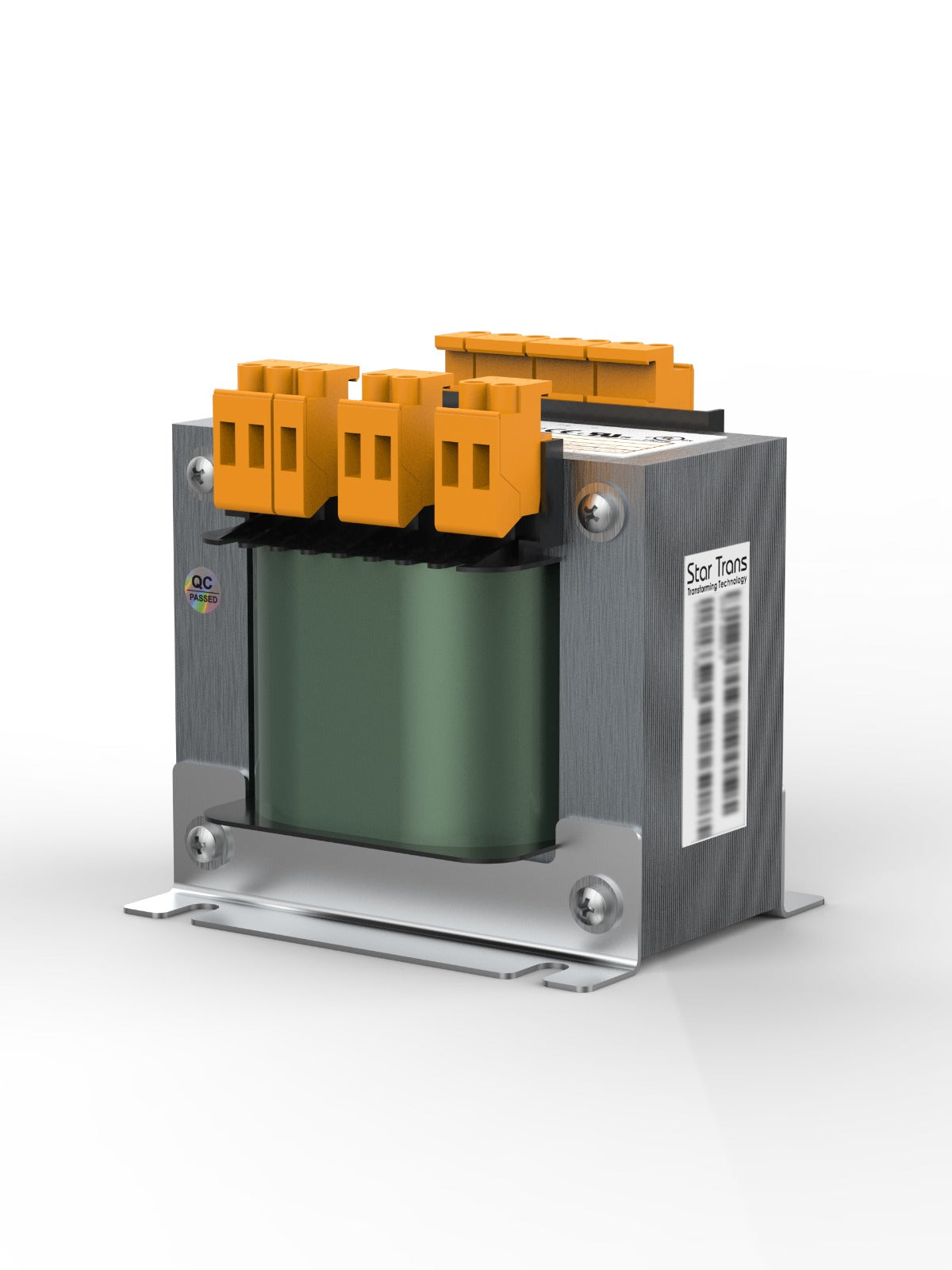

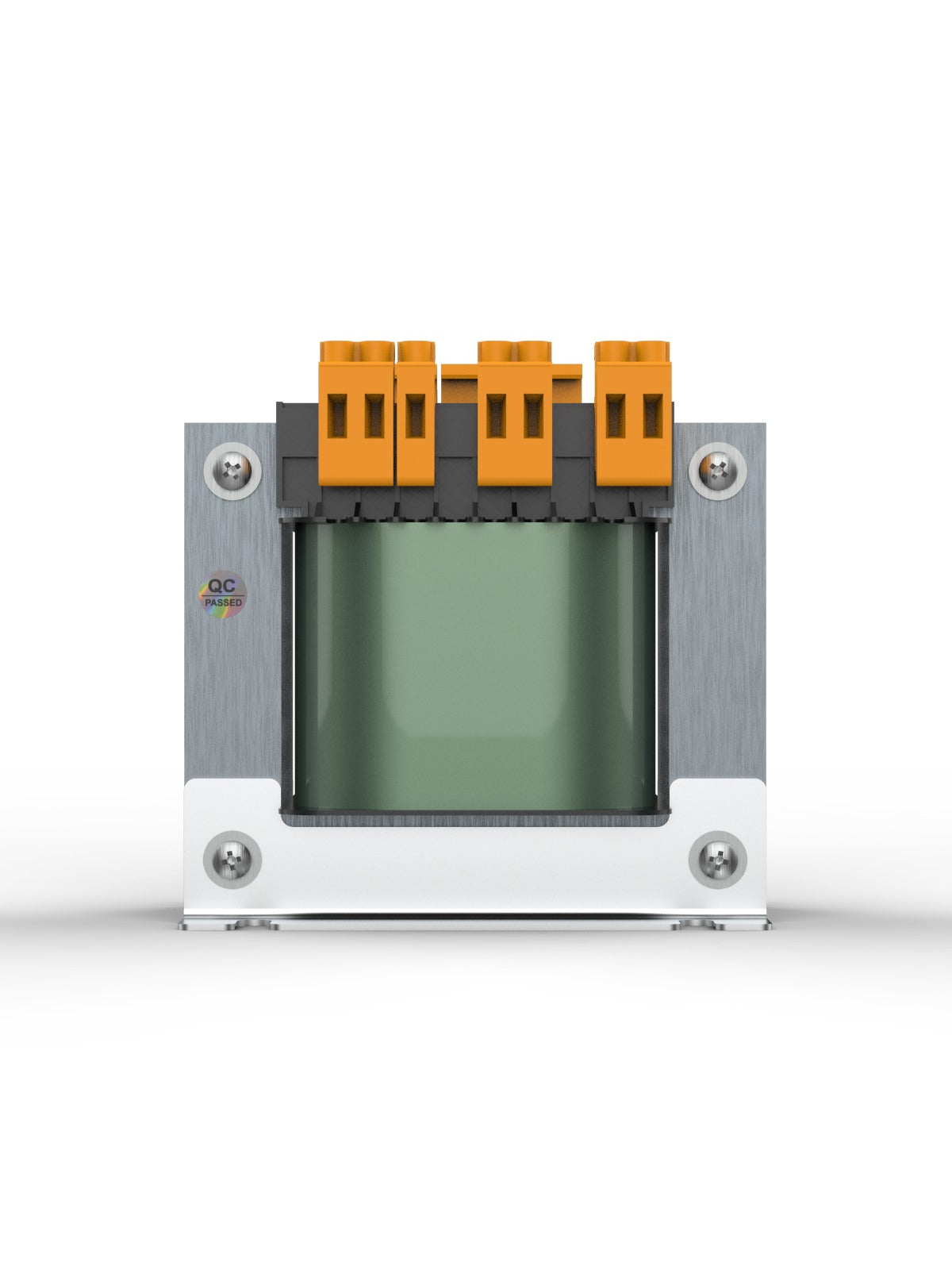

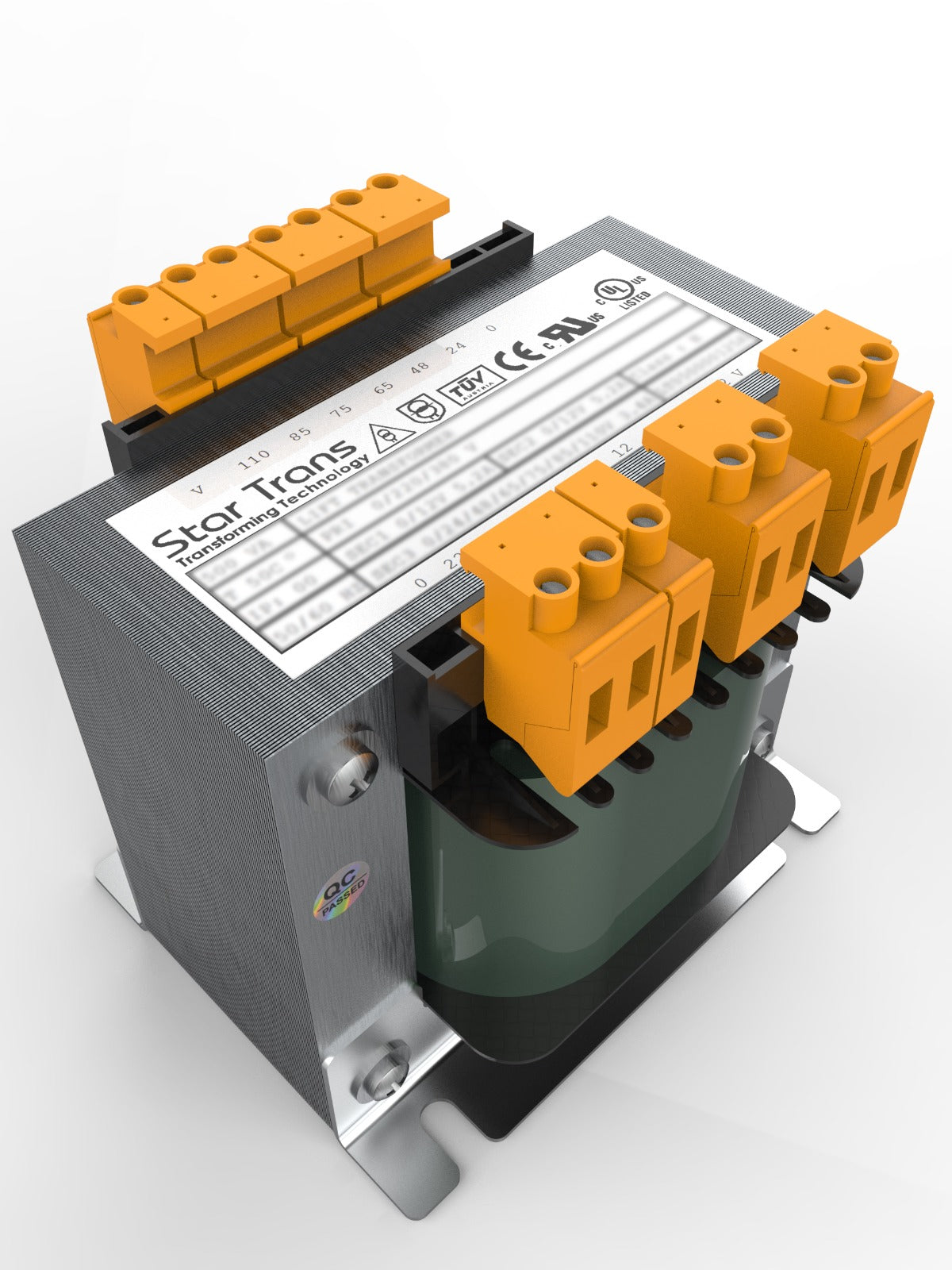

The Lift Control Transformer range 500–750–1000 VA IP00 provides three power ratings to match the exact requirements of small, medium, and heavy-duty elevator installations. All three models accept 220–380 Vac and deliver the full multi-tap secondary (0/12/24 and 0/48/65/75/85/95/110 Vac) at 98% efficiency with Class H insulation. All units are base-plate mounted with M6 screw-type terminals for rapid integration into any OEM or custom panel enclosure.
Outstanding Features
500 VA / 750 VA / 1000 VA for all lift sizes
220–380 Vac compatible with single & three-phase grids
0/12/24 and 0/48/65/75/85/95/110 Vac control supply
98% efficiency across all power ratings
Continuous heavy-duty operation (50°C rated)
Designed for integration inside control panels
Secure industrial installation with screw terminals
IEC 61558, CE, UL, TÜV Austria compliant
Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 500 VA / 750 VA / 1000 VA |
| Phase | Single Phase |
| Input Voltage | 220–380 Vac |
| Output Voltage | 0/12/24 + 0/48/65/75/85/95/110 Vac |
| Efficiency | 98% |
| Insulation Class | Class H |
| Protection Degree | IP00 |
| Max Ambient Temperature | 50°C |
| Frequency | 50/60 Hz |
| Test Voltage | 3.5 kV |
| Terminals | Screw type (M6) |
| Fixing Method | Base Plate |
| 500 VA Weight | 4.77 KG |
| 750 VA Weight | 6.25 KG |
| 1000 VA Weight | 9.00 KG |
| 500 VA Dimensions | 120×103×116×90×75×7 mm |
| 750 VA Dimensions | 120×118×116×90×90×7 mm |
| 1000 VA Dimensions | 150×115×141×115×90×7 mm |
