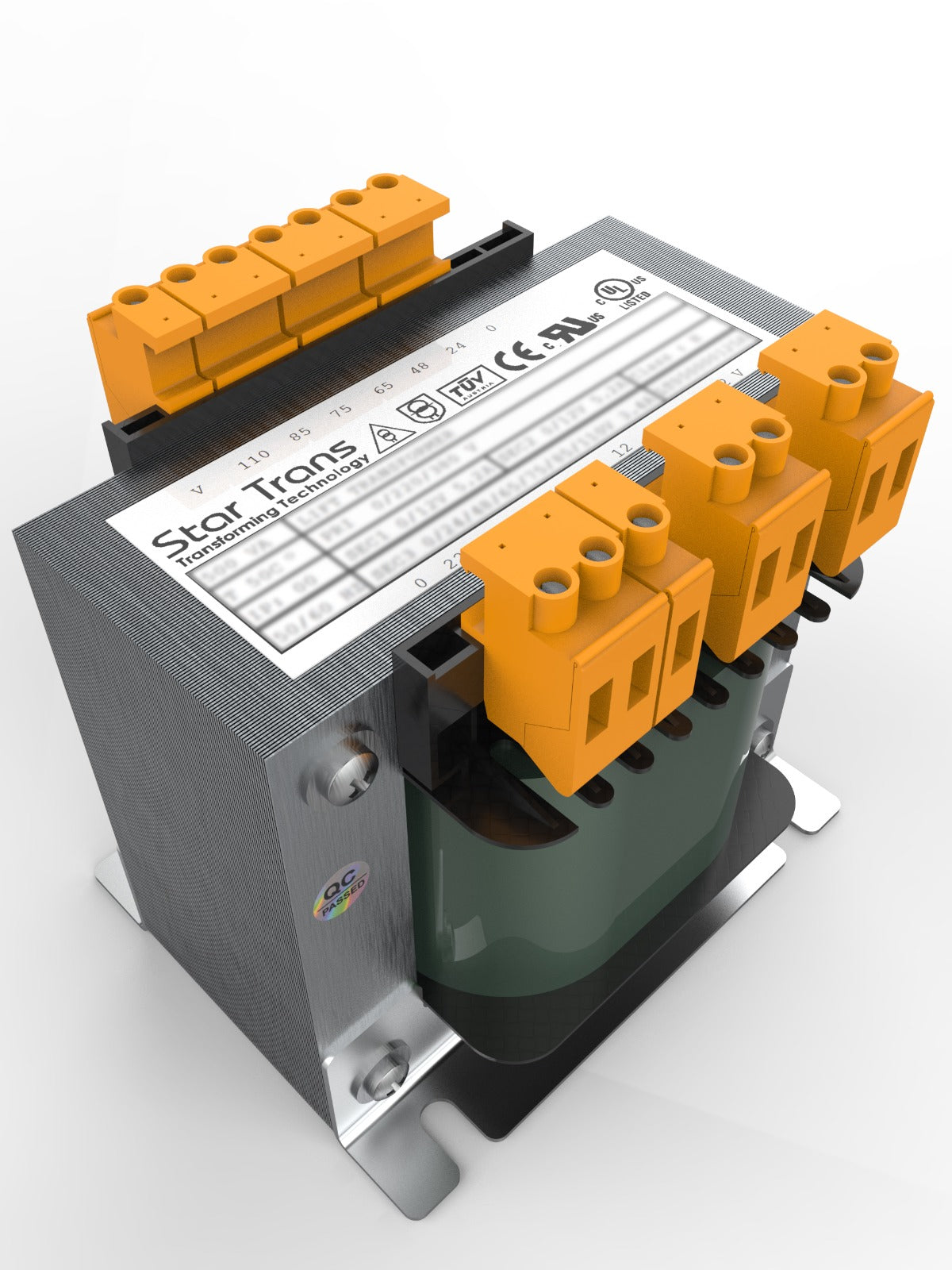

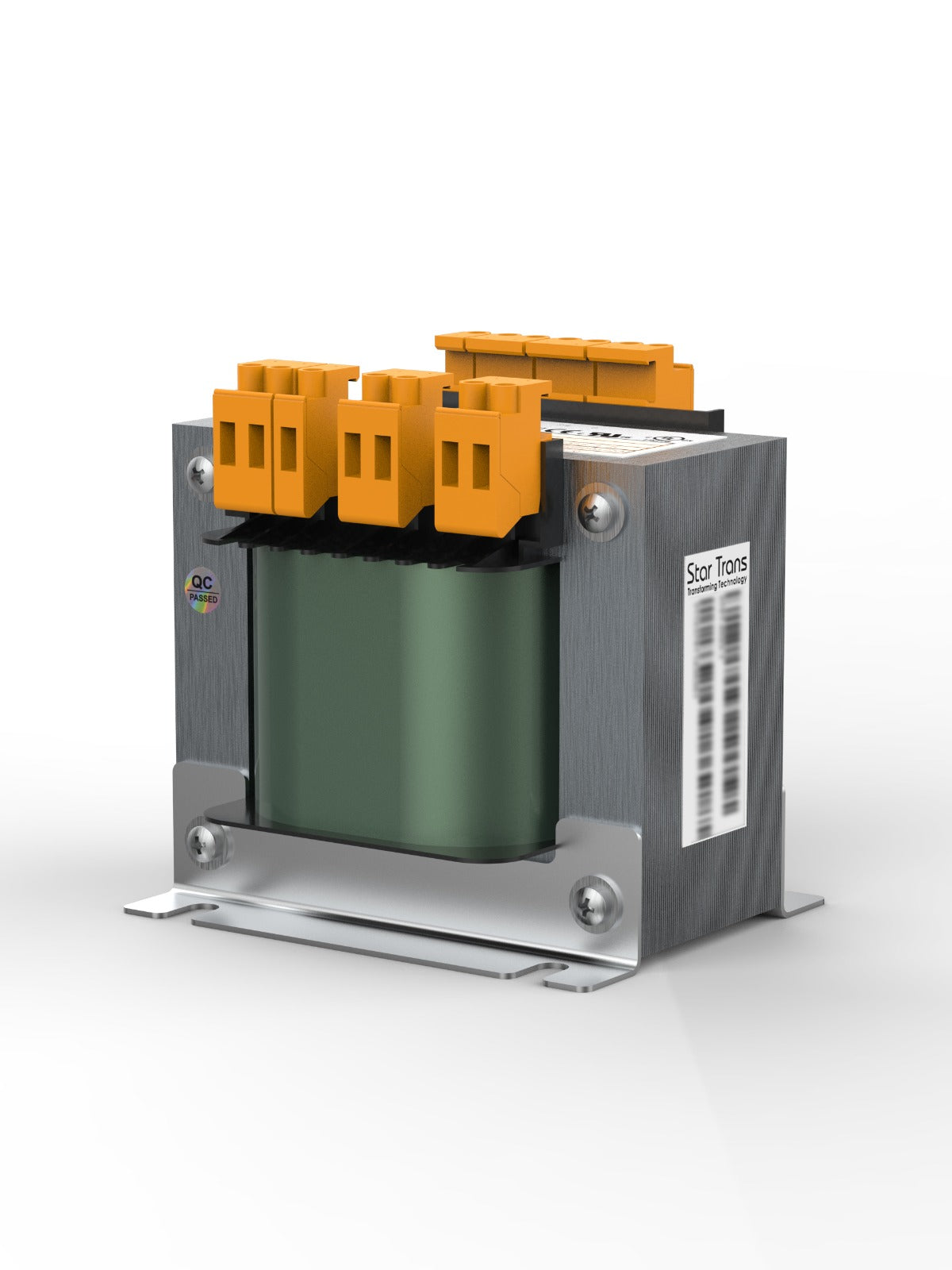

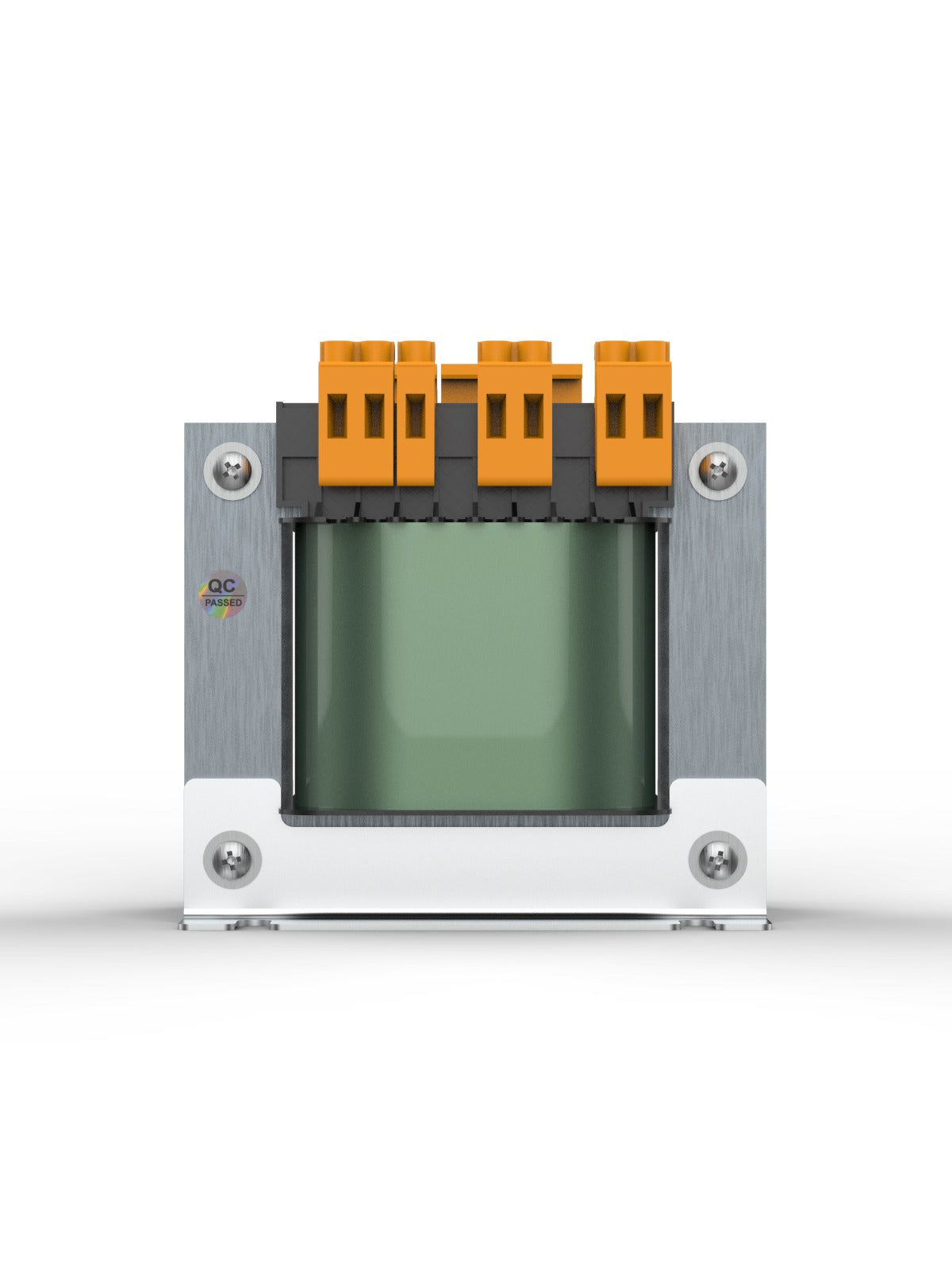

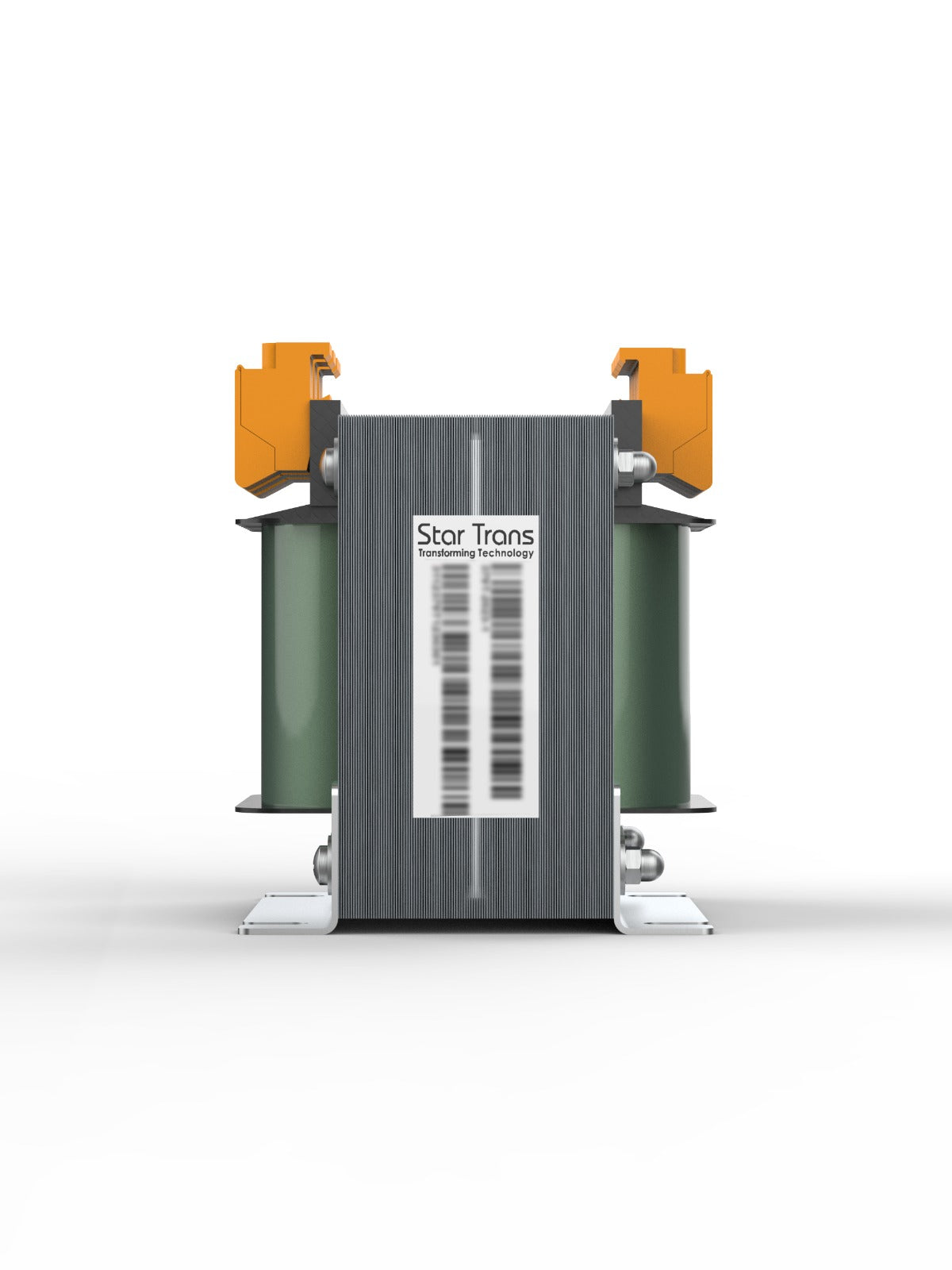

The Emergency Group for Lift Control Transformer 350 VA provides high-power emergency supply to elevator control systems during mains power failure. It operates from a 48–0–48 Vac battery input and delivers a wide range of secondary voltages (0/60/80/110/220/380 Vac) to power drive electronics, safety relays, door controllers, and emergency lighting in large passenger or freight lifts. At 350 VA, this is the high-capacity emergency unit in the range — Weight: 4.03 KG. Dimensions: 120×93×116×90×65×7 mm.
Outstanding Features
High-capacity emergency supply for large lifts
Battery bank input for seamless emergency operation
0/60/80/110/220/380 Vac for full system coverage
Drives electronics, relays, and emergency lighting
Suitable for high-rise and hospital lift systems
Designed for integration into emergency panels
24/7 standby duty rated operation
98% efficiency for low battery drain
M6 base plate fixing with screw terminals
IEC 61558, CE, UL, TÜV Austria compliant
Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 350 VA |
| Phase | Single Phase |
| Input Voltage | 48–0–48 Vac |
| Output Voltage | 0/60/80/110/220/380 Vac |
| Frequency | 50/60 Hz |
| Efficiency | 98% |
| Insulation Class | H |
| Protection Degree | IP00 |
| Max Ambient Temperature | 50°C |
| Test Voltage | 3.5 kV |
| Fixing Method | Base Plate |
| Fixing Screws | M6 |
| Terminal Type | Screw Type |
| Weight | 4.03 KG |
| Dimensions | 120×93×116×90×65×7 mm |
Product Technical Data Sheet
