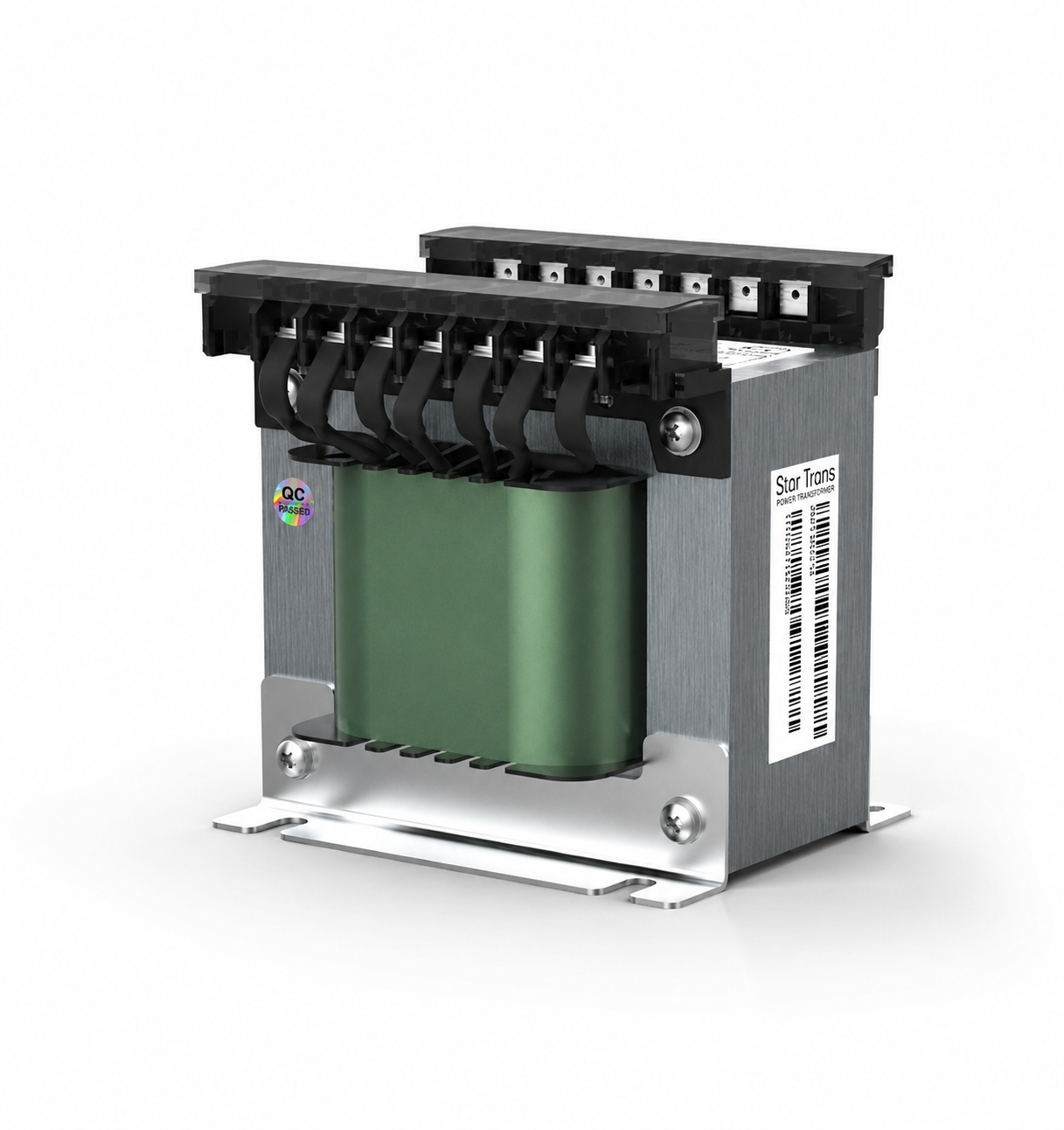

The Lift Control Transformer 500 VA IP00 is the open-type variant designed for custom or oversized lift control panels that provide their own enclosure and protection. It accepts 220–380 Vac input and delivers the same full multi-tap secondary voltage range (0/12/24 and 0/48/65/75/85/95/110 Vac) with 98% efficiency and Class H insulation. Its open-frame construction ensures easier installation, improved heat dissipation, and full access to screw terminals.
Outstanding Features
Matched to standard lift control requirements
Flexible integration inside custom panels
220–380 Vac compatibility
0/12/24 + 0/48/65/75/85/95/110 Vac
98% low-loss performance
Continuous 24/7 operation capability
Better heat dissipation and service access
IEC 61558 · CE · UL · TÜV Austria
Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 500 VA |
| Phase | Single Phase |
| Input Voltage | 220–380 Vac |
| Output Voltage | 0/12/24 + 0/48/65/75/85/95/110 Vac |
| Efficiency | 98% |
| Insulation Class | Class H |
| Protection Degree | IP00 (Open Type) |
| Max Ambient Temperature | 50°C |
| Frequency | 50/60 Hz |
| Test Voltage | 3.5 kV |
| Terminals | Screw Type |
| Fixing Screws | M6 |
| Fixing Method | Base Plate |
| Weight | 4.77 kg |
| Dimensions | 120 × 111 × 127 × 100 × 75 × 7 mm |
