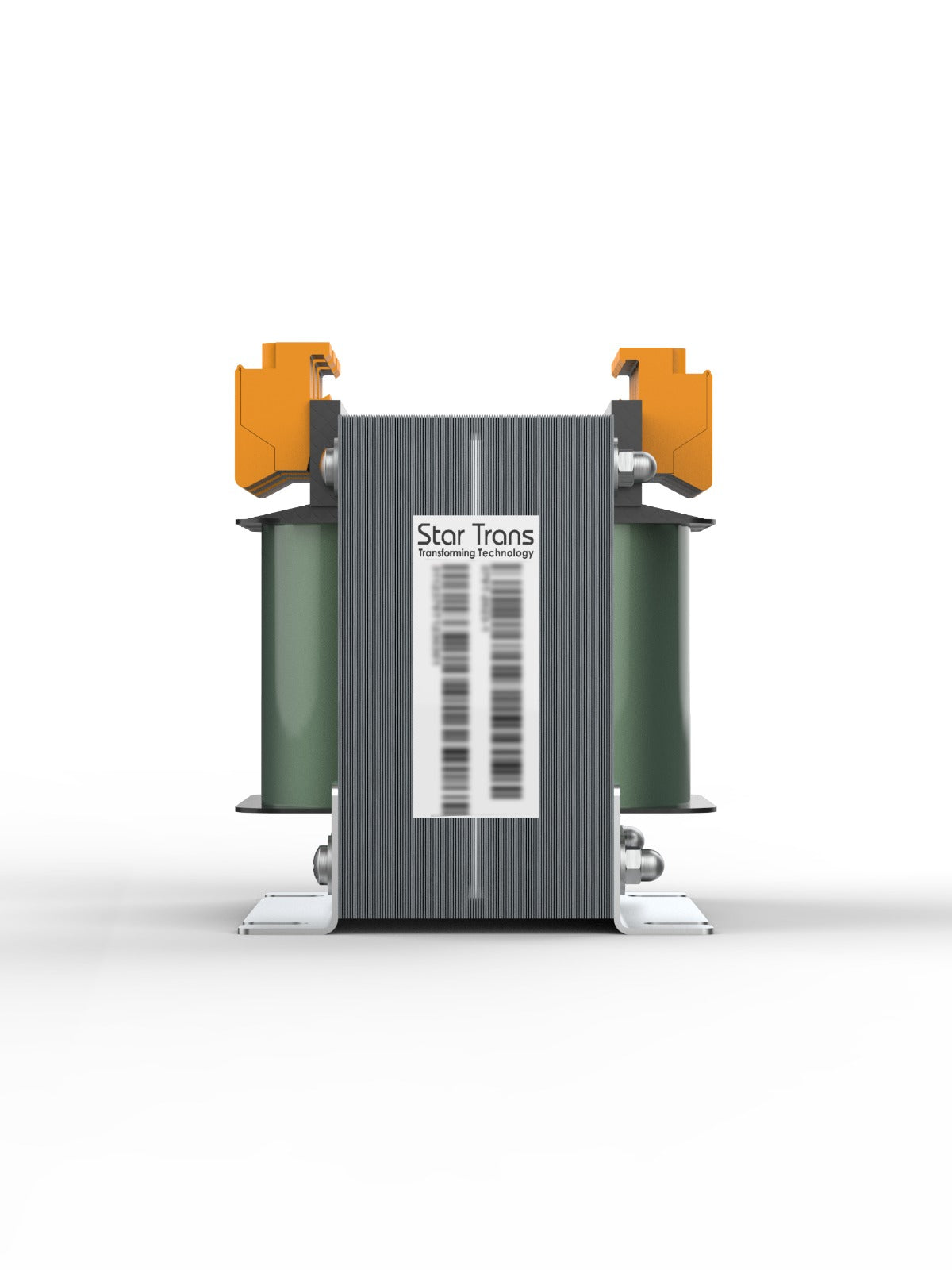

The Single Phase Swimming Pool Control Transformer is a 130 VA safety isolation transformer designed for pool applications requiring slightly more power than the 50 VA model. It is an open-type IP00 unit designed for installation inside sealed enclosures or control panels. It provides full galvanic isolation between the 230 Vac mains and a safe 12 Vac output, with compact size and lightweight design for easy integration.
Outstanding Features
Suitable for LED luminaires and small circulation pump circuits
Designed for installation inside sealed control panels
230 Vac to 12 Vac isolation compliant with IEC 61558
2.5 kg for fast installation inside control panels
96 × 88 × 96 mm fits standard enclosures
98% efficiency with minimal power loss
Continuous duty operation up to 50°C ambient
M5 base plate fixing for stable installation
Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 130 VA |
| Input Voltage | 0 – 230 Vac |
| Output Voltage | 0 – 12 Vac |
| Frequency Range | 50–60 Hz |
| Efficiency | 98% |
| Enclosure Type | Open Type |
| Protection Index | IP00 |
| Insulation Class | Class H |
| Max Ambient Temperature | 50°C |
| Test Voltage | 3.5 kV |
| Fixing Method | Base Plate |
| Fixing Screws | M5 |
| Terminal Type | Screw Type Terminal |
| Weight | 2.5 kg |
| Dimensions | 96 × 88 × 96 × 70 × 57 × 5.5 mm |
| Standards | IEC 61558 |
