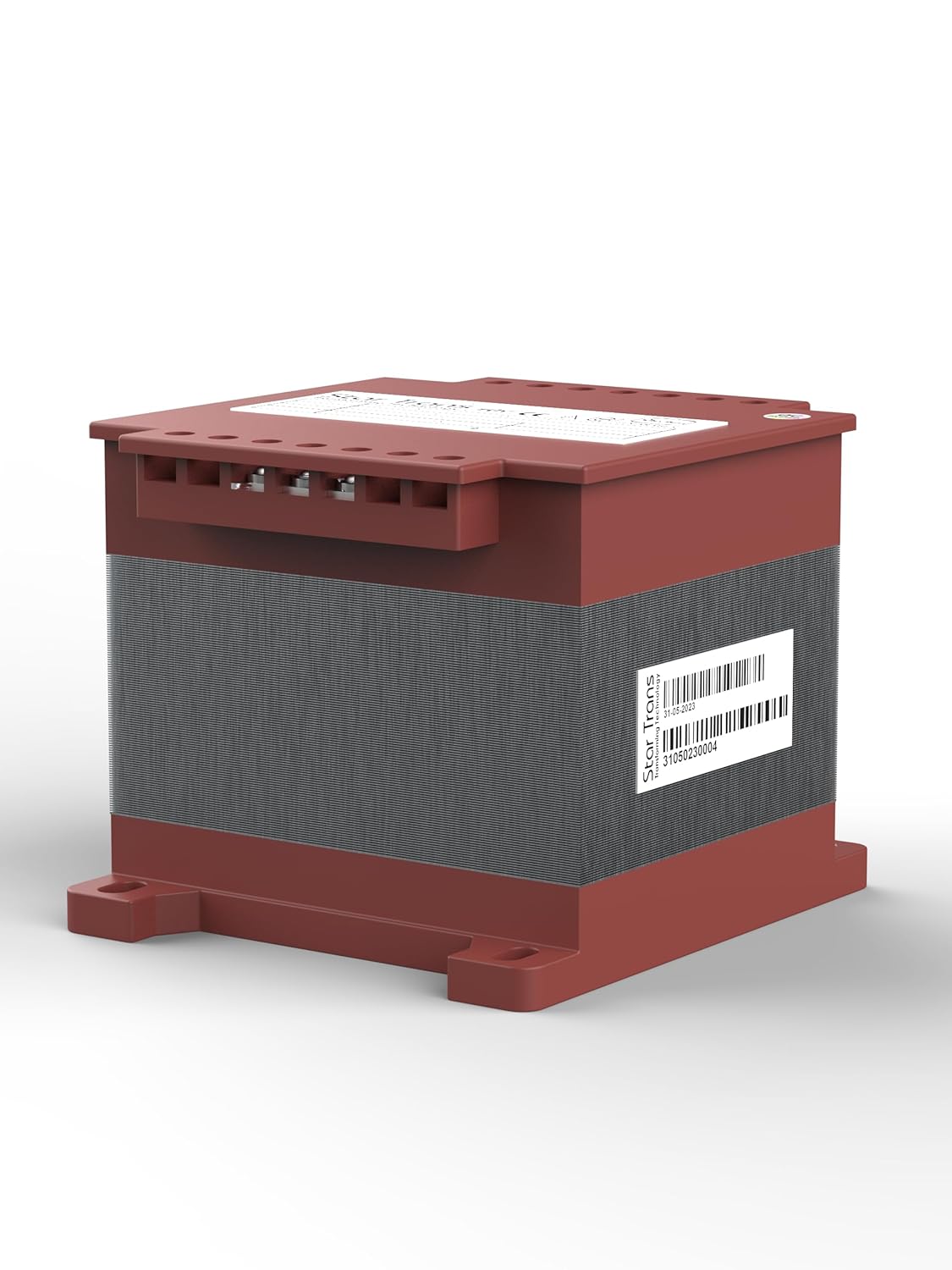

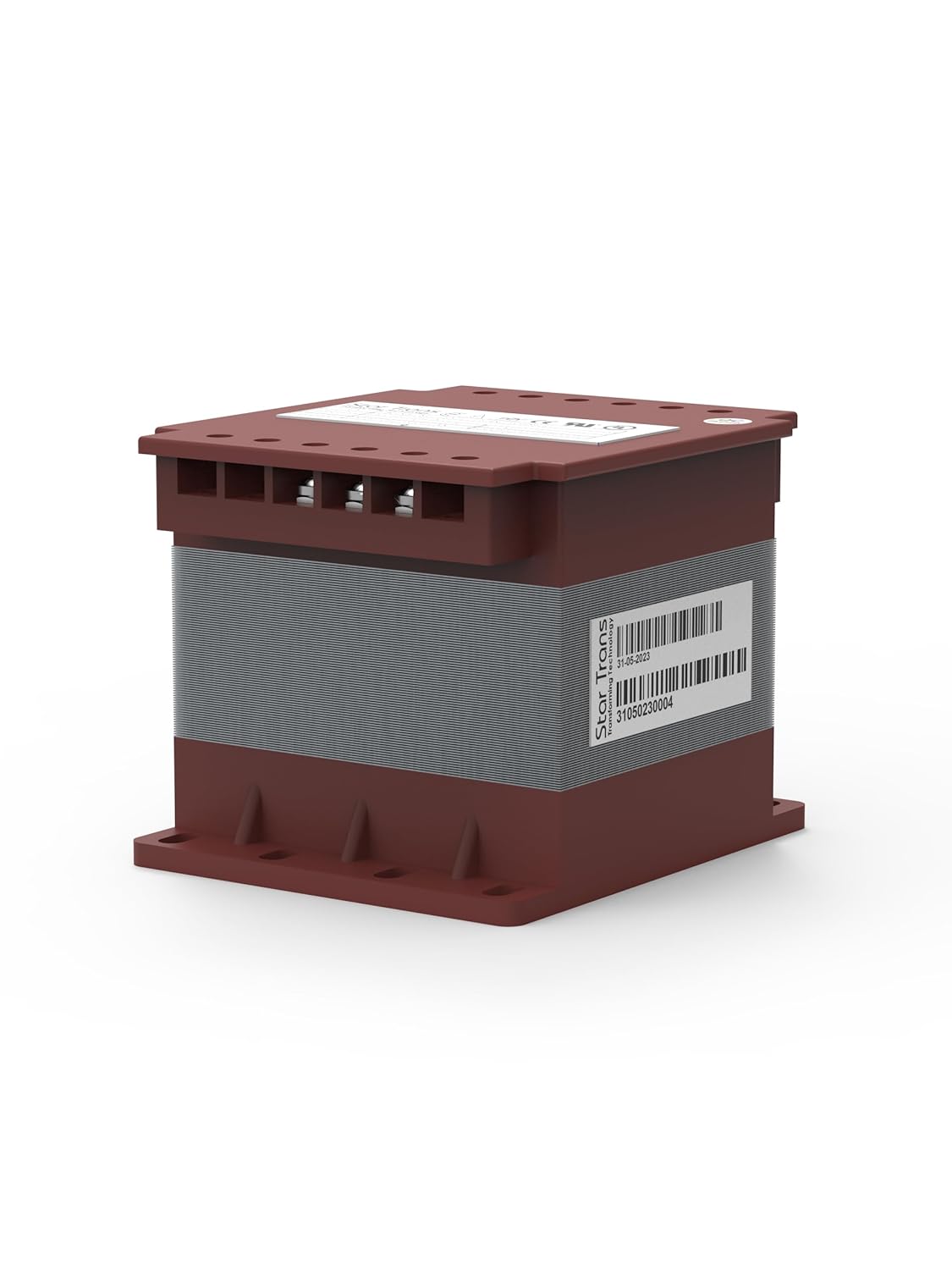

The Single Phase Swimming Pool Control Transformer is a 350 VA safety isolation transformer designed for swimming pool installations. It provides safe 230 Vac to 12 Vac isolation with high protection level suitable for outdoor and wet environments.
Outstanding Features
350 VA capacity
Ideal for pool lighting and control circuits
IP67 protection
Fully sealed waterproof enclosure
Safe isolation
230 Vac to 12 Vac galvanic isolation
Compact design
Easy installation in tight spaces

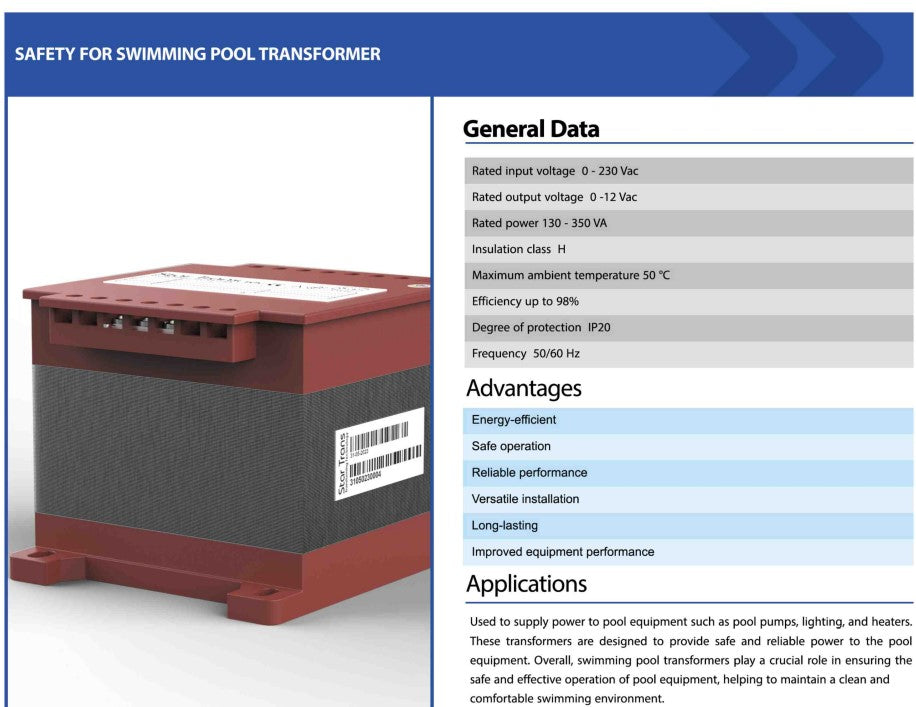

| Specification | Value |
|---|---|
| Rated Power | 350 VA |
| Input Voltage | 0 – 230 Vac |
| Output Voltage | 0 – 12 Vac |
| Frequency | 50–60 Hz |
| Efficiency | 98% |
| Protection | IP67 |
| Insulation Class | Class H |
| Test Voltage | 3.5 kV |
| Weight | 6.5 kg |
| Standards | IEC 61558 |
