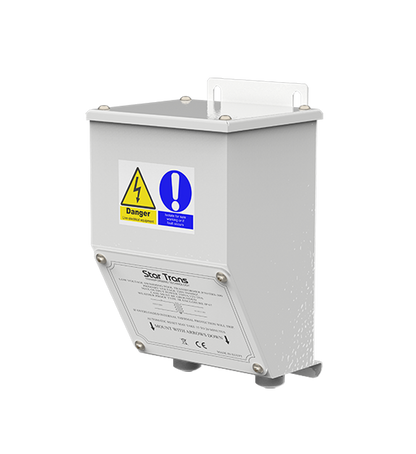

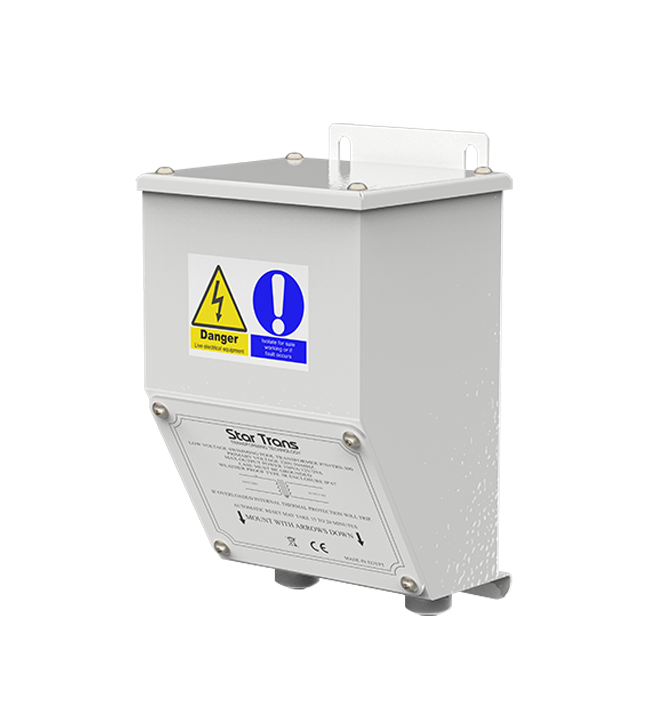

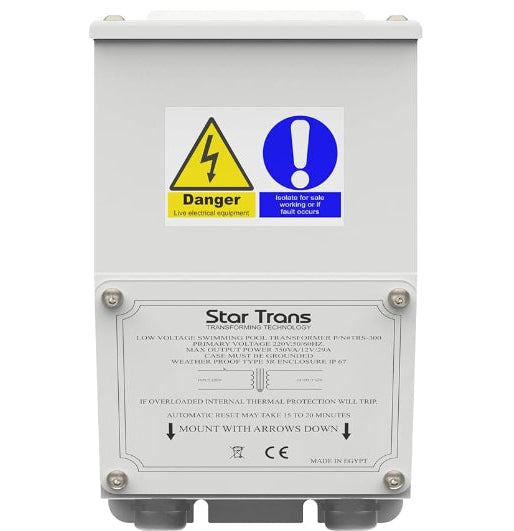

The Single Phase Swimming Pool Control Transformer is a 350 VA safety isolation transformer purpose-built for outdoor swimming pool installations. It provides full protection with an IP67 fully sealed weatherproof enclosure, making it suitable for poolside, pump rooms, and wet outdoor environments. It steps down 230 Vac to a safe 12 Vac output for lighting, pumps, and pool accessories while complying with IEC 61558 safety standards.
Outstanding Features
Ideal for pool lighting, pump control, and accessories
Fully sealed against dust and water immersion
IEC 61558 compliant galvanic isolation for safety
Reliable isolation and voltage conversion
Optimized for poolside and outdoor installations
3.5 kV test voltage for maximum safety margin
M6 screw fixing for secure installation
CE, UL (cULus), TÜV Austria — IEC 61558 standard
Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 350 VA |
| Input Voltage | 0 – 230 Vac |
| Output Voltage | 0 – 12 Vac |
| Frequency Range | 50–60 Hz |
| Efficiency | 98% |
| Enclosure Type | Fully Enclosed |
| Protection Index | IP67 (Waterproof) |
| Insulation Class | Class H |
| Max Ambient Temperature | 50°C |
| Test Voltage | 3.5 kV |
| Fixing Method | Base Plate |
| Fixing Screws | M6 |
| Terminal Type | Screw Type Terminal |
| Weight | 6.5 kg |
| Dimensions | 234.5 × 139 × 126.25 × 217 × 80 × 8 mm |
| Standards | IEC 61558 |
