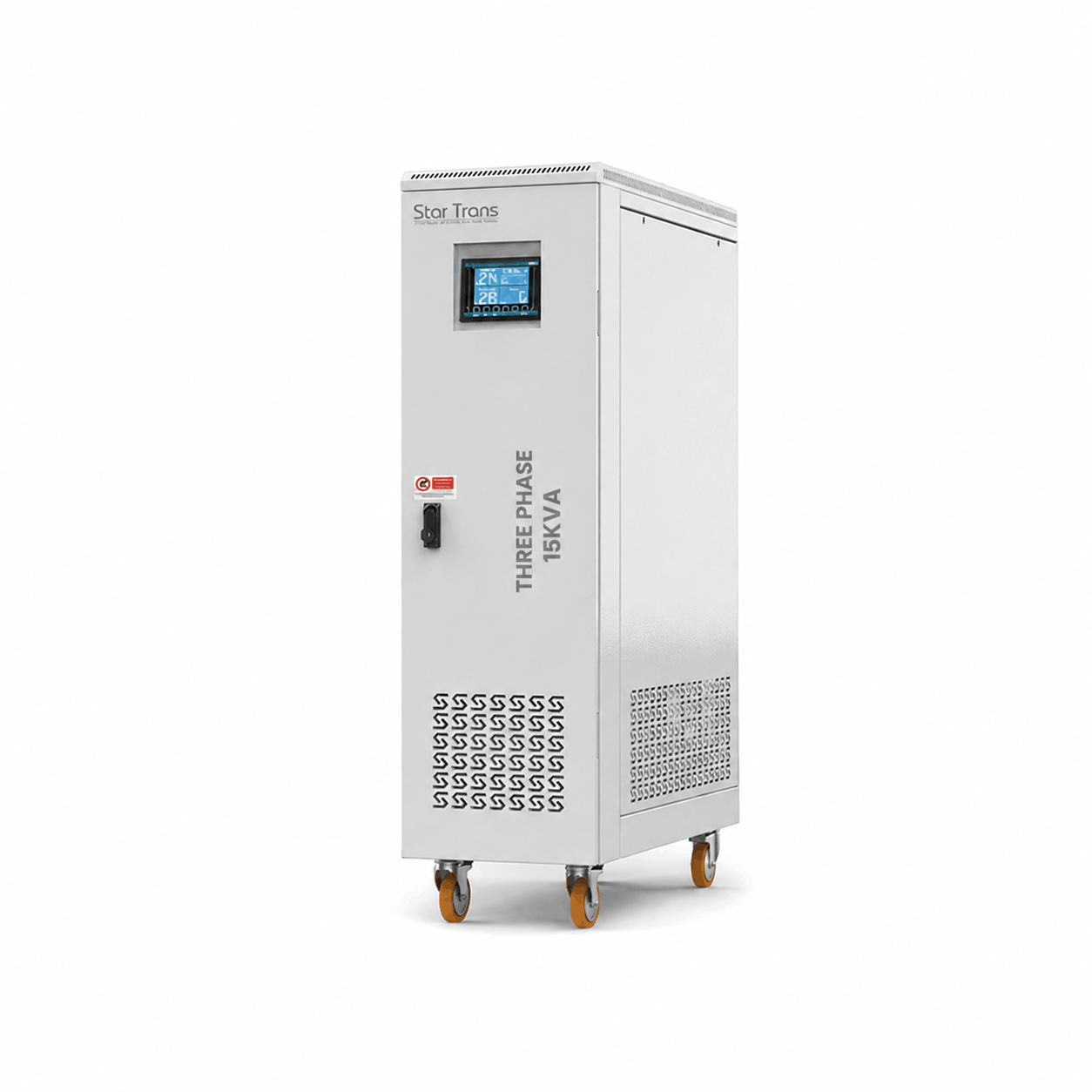

The PRO-S 15KVA is a three-phase servo voltage stabilizer rated at 15KVA with a continuous output of 21.65A per phase. It accepts an input range of 280V – 480V and delivers a stable 3×400V output with ±1–1.5% accuracy, protecting connected equipment from voltage fluctuations, surges, and phase disturbances without any manual adjustment.
Running at up to 98% efficiency with Class H insulation and a low-loss thermal design, this automatic servo voltage stabilizer is built for sustained operation in high-demand environments. A digital LCD display keeps live voltage readings across all three phases visible at all times, while eight automated protection layers — overvoltage, undervoltage, overload, short circuit, overtemperature, phase sequence fault, phase failure, and internal bypass — activate instantly when needed. A 6-second safe-start delay protects the connected load at every power-on cycle.
Suitable for pumping stations, food processing lines, commercial refrigeration, multi-unit air conditioning, and heavy workshop machinery, the PRO-S 15KVA electrical stabilizer is floor-standing on industrial castors for easy on-site positioning. Rated for ambient temperatures up to 50°C and certified to CE, cULus, and TÜV Austria standards, it is a dependable servo motor stabilizer available across Egypt for demanding three-phase commercial and industrial applications.

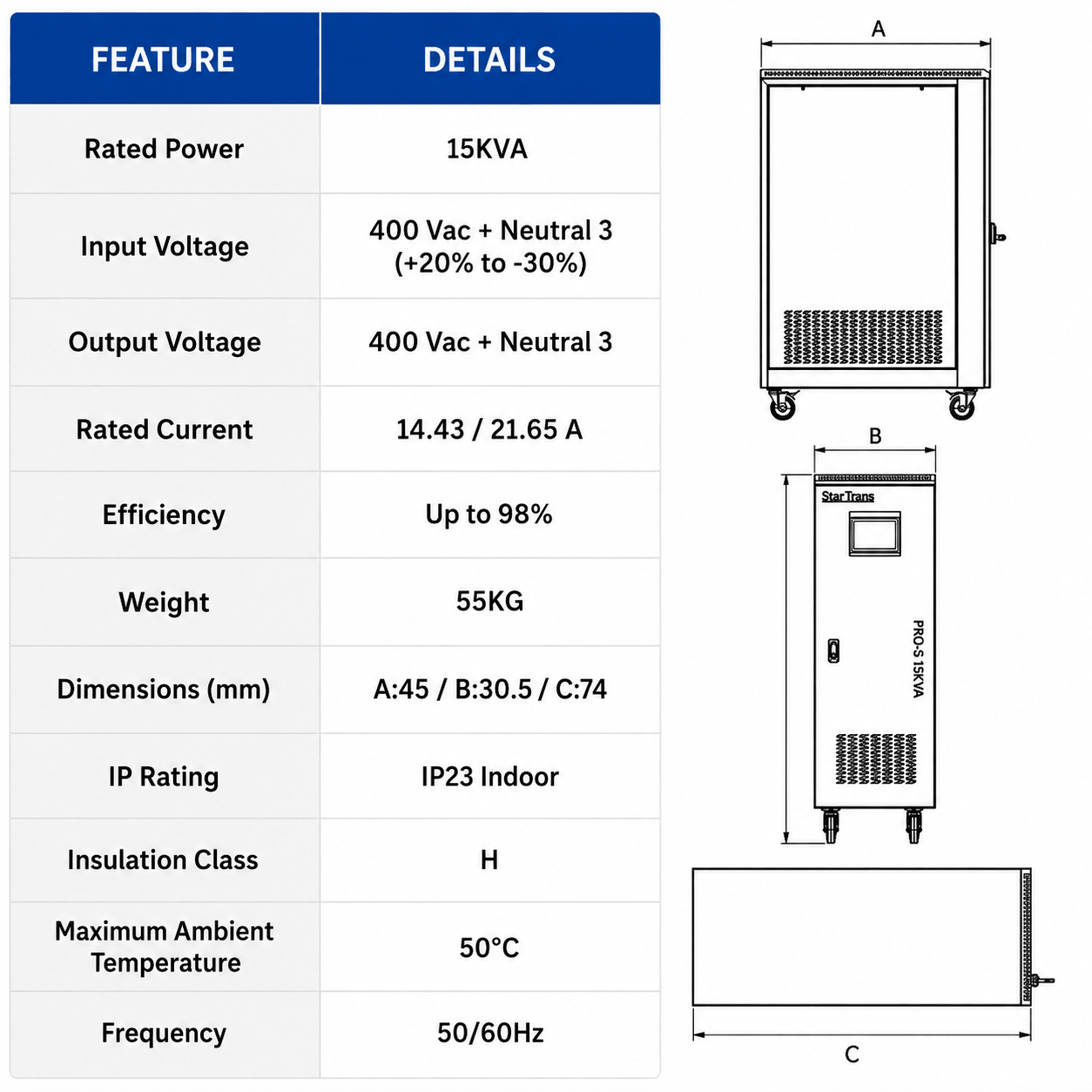

| Specification | Value |
| Rated input voltage | 3 × 400 Vac + Neutral |
| Permissible input tolerance | +20% to −30% (280V – 480V) |
| Rated output voltage | 3 × 400 Vac + Neutral |
| Output accuracy | ±1 – 1.5% |
| Rated power | 10 – 15 KVA |
| Rated current | 14.43 A / 21.65 A |
| Frequency | 50 / 60 Hz |
| Efficiency | Up to 98% |
| Insulation class | Class H |
| Max ambient temperature | 50 °C |
| Protection index | IP23 Indoor |
| Test voltage | 3.5 KV |
| Dimensions (A × B × C) | 45 × 30.5 × 74 cm |
| Weight | 47 – 55 KG |
| Terminal | Screw type |
| Fixing method | Floor standing with castors |
| Protection features | Safe Start · Over & Under Voltage · Phase Sequence · Phase Failure · Overload · Short Circuit · Over Heat · Internal Bypass |
| Standards | IEC 61000 · IEC 61558 · IEC 62103 · IEC 60529 |
