TPL Voltage Stabilizer by Star Trans: A Trusted Industrial Solution for Large-Scale Projects
Voltage stability is one of the foundations that any industrial or service facility relies on for efficient operation. A fluctu...

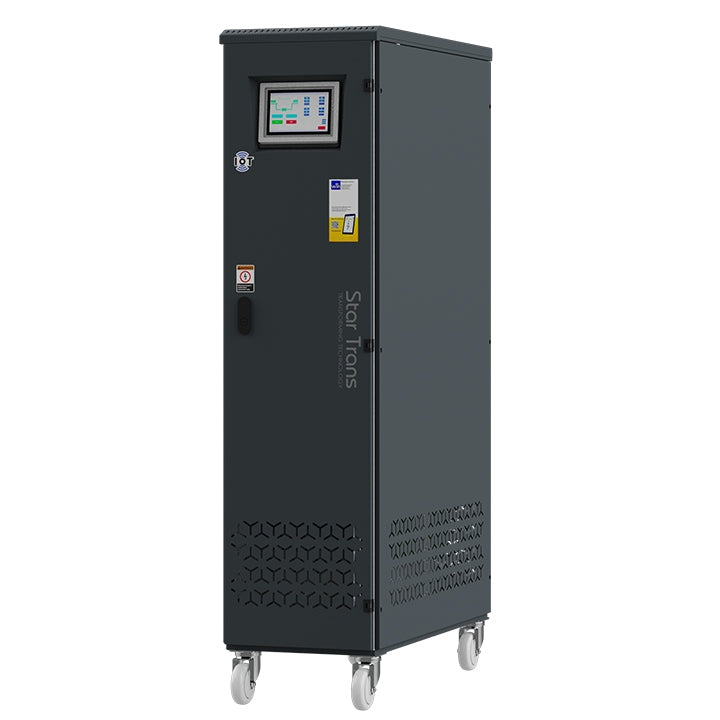

The TPL Series 20% — 100 KVA has a weight of 605 KG and compact dimensions of 407×1650×930 mm. It stabilizes unstable voltage and protects equipment from fluctuations that can cause damage or downtime. It delivers steady and accurate output under varying load conditions, ensuring smooth and safe continuous operation.
Outstanding Features
100 KVA rated capacity
Extra headroom for mixed loads
Correction speed 20ms/volt
Near-instant response
Same slim cabinet as 80 KVA
No extra footprint required
Harmonic distortion: Nil
Clean power output
±20% input range
Handles weak grid areas
ARM digital control board
High-speed processing
144.3 A rated current
HVAC + lighting + electronics
Bypass switch
Maintenance without shutdown
Individual phase regulation
Handles load unbalance
| Specification | Value |
|---|---|
| Rated Power | 80 KVA |
| Phase | Three Phase |
| Input voltage | 400 Vac (Three Phase + Neutral) |
| Output voltage | 400 Vac (Three Phase + Neutral) |
| Admitted Load Variation | 0 to 100% |
| Harmonic distortion | Nil (zero introduced) |
| Cooling | Natural Air + Fans (forced ventilation above threshold) |
| Protection degree | IP23 — Indoor |
| Environment | Indoor installation |
| Colour | RAL 7016 (Dark Grey) |
| Input voltage tolerance | +20% to -20% (320V – 480V) |
| Output accuracy | ±0.5% to ±1% (adjustable) |
| Rated current | 144.3 A |
| Frequency | 50/60 Hz ±5% |
| Efficiency | >98% at full load |
| Overload | 150% for 1 min |
| Correction speed | 20 ms / volt |
| Load unbalance | Up to 100% |
| Insulation class | H Class |
Product Technical Data Sheet
View or download PDF
Request a custom TPL stabilizer for your project
We provide custom 3-phase TPL voltage stabilizers tailored to suit the needs of factories and industrial facilities of different sizes. If you need a capacity not listed in the displayed products or require special operating specifications, our engineering team can design the right solution for your application.
