TPL Voltage Stabilizer by Star Trans: A Trusted Industrial Solution for Large-Scale Projects
Voltage stability is one of the foundations that any industrial or service facility relies on for efficient operation. A fluctu...
The TPL 2000 KVA is a 2 MVA class multi-cabinet servo linear voltage stabilizer delivering 2886.7 A of regulated three-phase power. Designed as a critical infrastructure node, it ensures full stability for large industrial facilities, supporting integration with upstream MV systems and complex distribution networks. With dimensions of 6030×2465×1400 mm and a weight of 5265 KG, it is engineered for continuous heavy-duty operation in mission-critical environments.
Outstanding Features
2000 KVA / 2 MVA capacity
Critical infrastructure-grade power system
2886.7 A rated output
Stable high-current three-phase delivery
Multi-cabinet 6030 mm system
Designed for large-scale installations
Class H insulation
Long-term continuous industrial duty
Zero harmonic distortion
Clean regulated output for sensitive networks
Modbus + GPRS integration
SCADA and remote monitoring ready
Internal bypass system
Safe maintenance without shutdown
>98% efficiency
High performance at full industrial load
| Specification | Value |
|---|---|
| Rated Power | 2000 KVA |
| Phase | Three Phase |
| Input voltage | 400 Vac (Three Phase + Neutral) |
| Output voltage | 400 Vac (Three Phase + Neutral) |
| Rated current | 2886.7 A |
| Input voltage tolerance | +20% to -20% (320V – 480V) |
| Output accuracy | ±0.5% to ±1% (adjustable) |
| Frequency | 50/60 Hz ±5% |
| Efficiency | >98% |
| Overload | 150% for 1 min |
| Correction speed | 20 ms / volt |
| Load unbalance | Up to 100% |
| Insulation class | H Class |
| Protection degree | IP23 — Indoor |
| Cooling | Natural Air + Forced Fans |
| Dimensions | 6030 × 2465 × 1400 mm |
| Weight | 5265 KG |

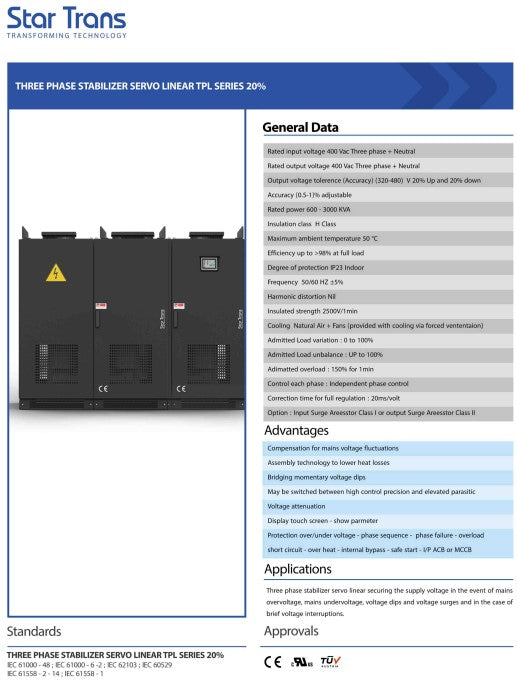

Product Technical Data Sheet
View or download PDF
Request a custom TPL stabilizer for your project
We provide custom 3-phase TPL voltage stabilizers tailored to suit the needs of factories and industrial facilities of different sizes. If you need a capacity not listed in the displayed products or require special operating specifications, our engineering team can design the right solution for your application.
