TPL Voltage Stabilizer by Star Trans: A Trusted Industrial Solution for Large-Scale Projects
Voltage stability is one of the foundations that any industrial or service facility relies on for efficient operation. A fluctu...
The TPL 800 KVA is a heavy infrastructure-grade stabilizer designed to serve as the main voltage regulation system. Delivering 1154.7 A across three independently regulated phases, it ensures stable operation even under critical load conditions where short voltage sags can disrupt production. With fast servo response and Class H insulation, TPL Series Three Phase Voltage Stabilizer Servo Liner 20% - 800KVA provides long-term reliability in demanding environments such as textile mills, pharmaceutical plants, airports, and large buildings. The stabilizer has a weight of 2404 KG and dimensions of 2010×2320×1400 mm.
Outstanding Features
800 KVA primary regulation
Full facility voltage stabilization
1154.7 A rated output
Stable industrial heavy-load supply
Internal bypass system
Safe maintenance without shutdown
20ms/volt correction speed
Instant response to grid fluctuations
Class H insulation
Continuous heavy-duty operation
>98% efficiency
High energy performance at full load
Phase independent regulation
Handles full load unbalance
Modbus + GPRS
SCADA / remote monitoring integration
| Specification | Value |
|---|---|
| Rated Power | 800 KVA |
| Phase | Three Phase |
| Input voltage | 400 Vac (Three Phase + Neutral) |
| Output voltage | 400 Vac (Three Phase + Neutral) |
| Rated current | 1154.7 A |
| Input voltage tolerance | +20% to -20% (320V – 480V) |
| Output accuracy | ±0.5% to ±1% (adjustable) |
| Frequency | 50/60 Hz ±5% |
| Efficiency | >98% |
| Overload | 150% for 1 min |
| Correction speed | 20 ms / volt |
| Load unbalance | Up to 100% |
| Insulation class | Class H |
| Protection | IP23 — Indoor |
| Cooling | Natural Air + Forced Fans |
| Dimensions | 2010 × 2320 × 1400 mm |
| Weight | 2404 KG |

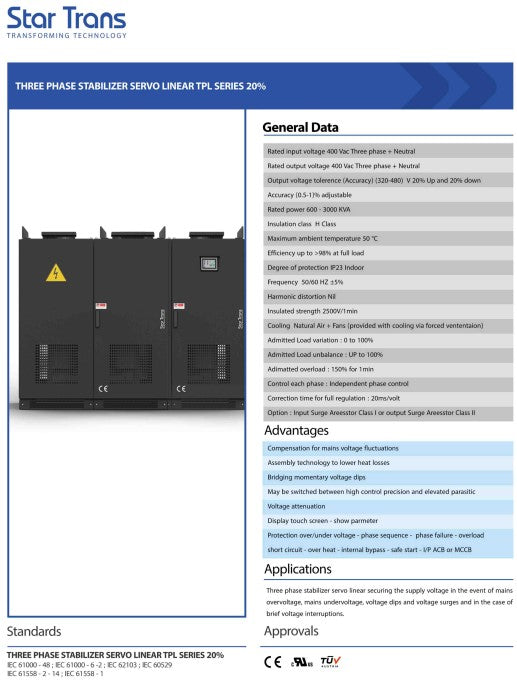

Product Technical Data Sheet
View or download PDF
Request a custom TPL stabilizer for your project
We provide custom 3-phase TPL voltage stabilizers tailored to suit the needs of factories and industrial facilities of different sizes. If you need a capacity not listed in the displayed products or require special operating specifications, our engineering team can design the right solution for your application.
