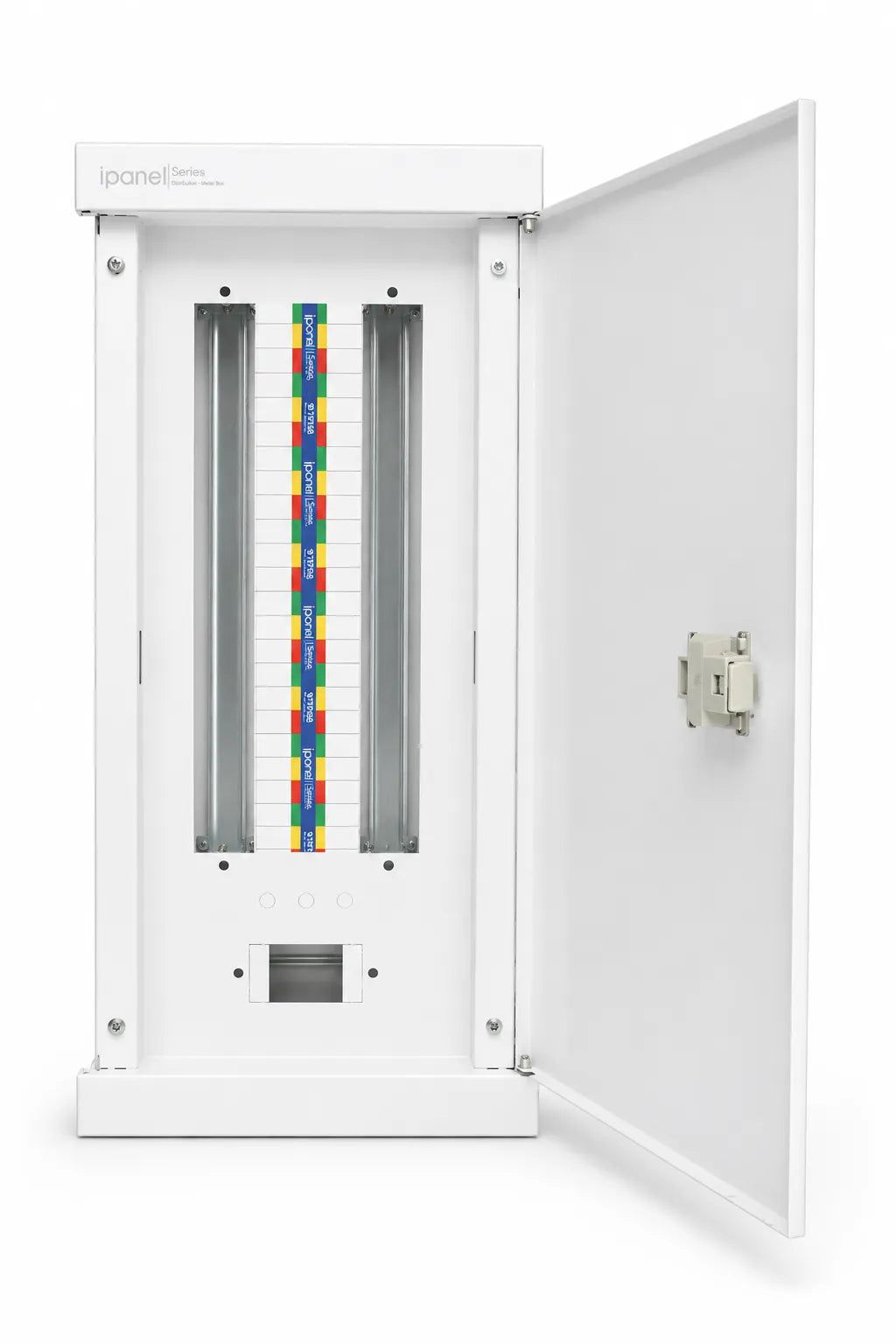

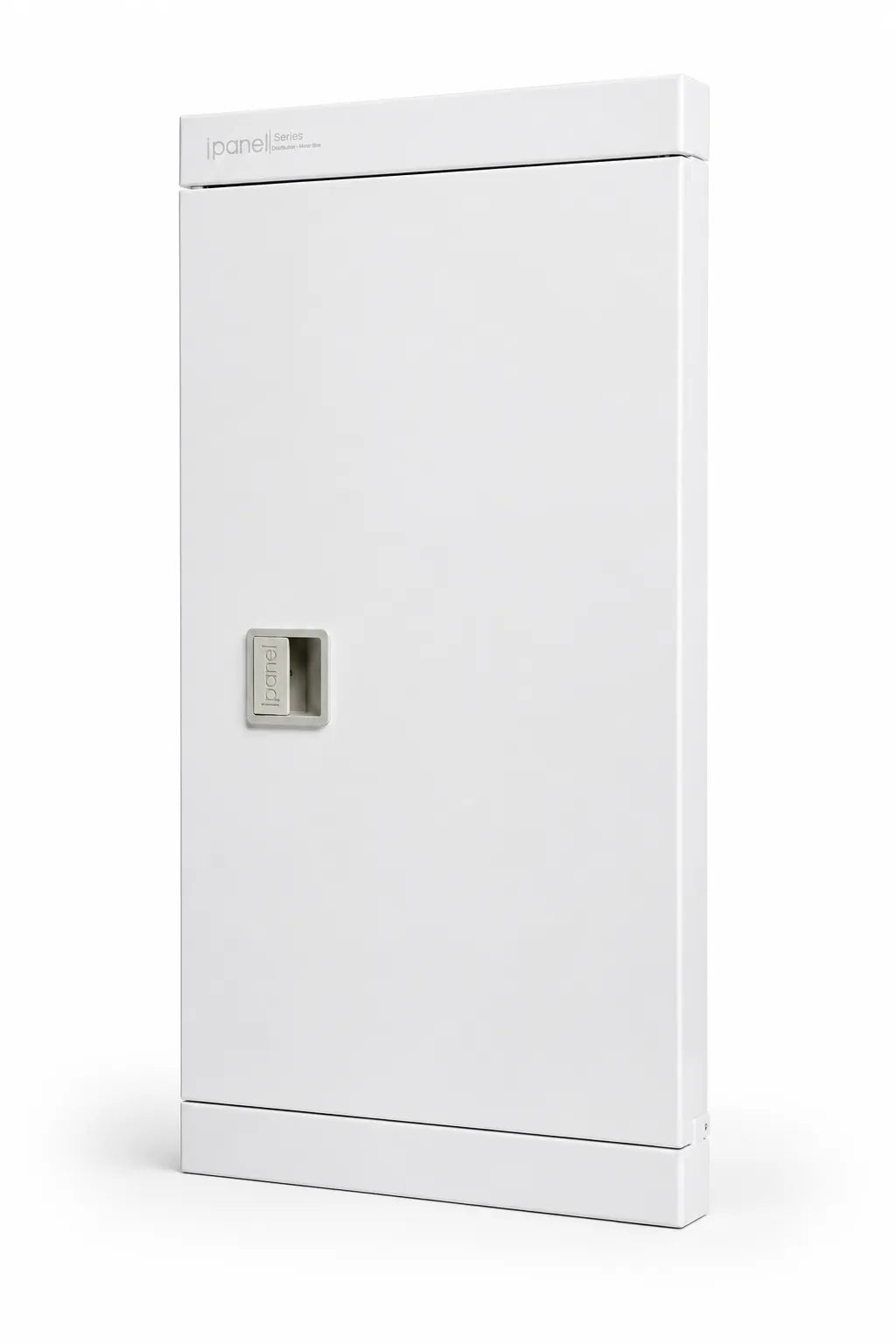

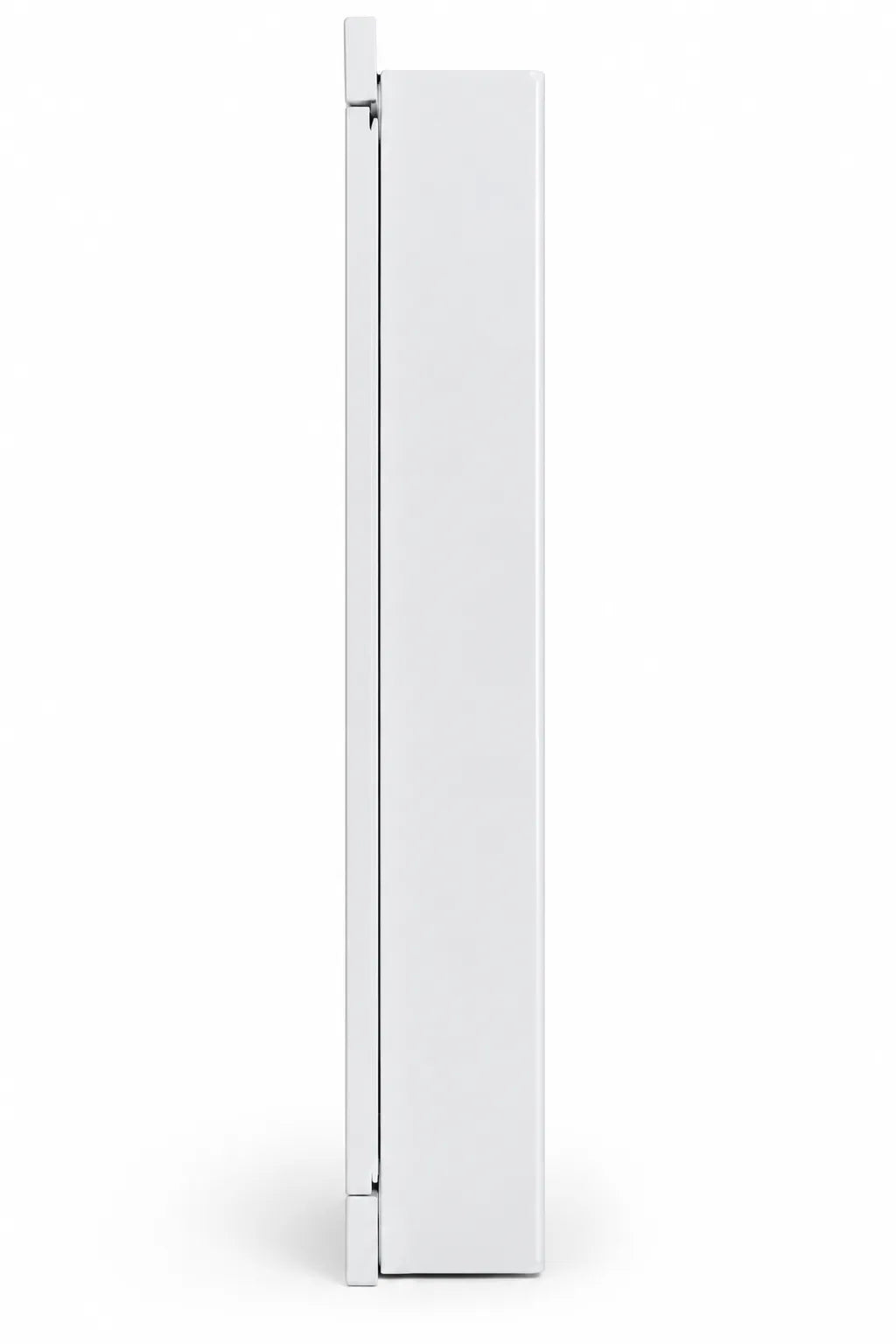

The I Panel L48FM is a 48-line electrical distribution enclosure made from Steel-37, designed for flash mounting. With IP23 protection rating and RAL 9116 surface finish, it offers excellent corrosion resistance through electrostatic powder coating. Ideal for multi-use control systems in residential, commercial, and industrial applications.
| Specification | Value |
|---|---|
| Protection Class | IP23 |
| Material | Steel - 37 |
| Surface | RAL 9116 |
| Mounting Type | Flash mounting |
| Weight | 25 KG |
| A (Width) | 340 mm |
| B (Depth) | 105 mm |
| C (Height) | 735 mm |
| D (Internal Height) | 695 mm |
| Lines | 48 |
